Low-Voltage, CMOS Analog. Multiplexers/Switches. MAX4051/A, MAX4052/A, MAX4053/A. General Description

Datasheet MAX4051/A, MAX4052/A, MAX4053/A Maxim, Revisión: 2

Línea de modelo para esta hoja de datos

Versión de texto del documento

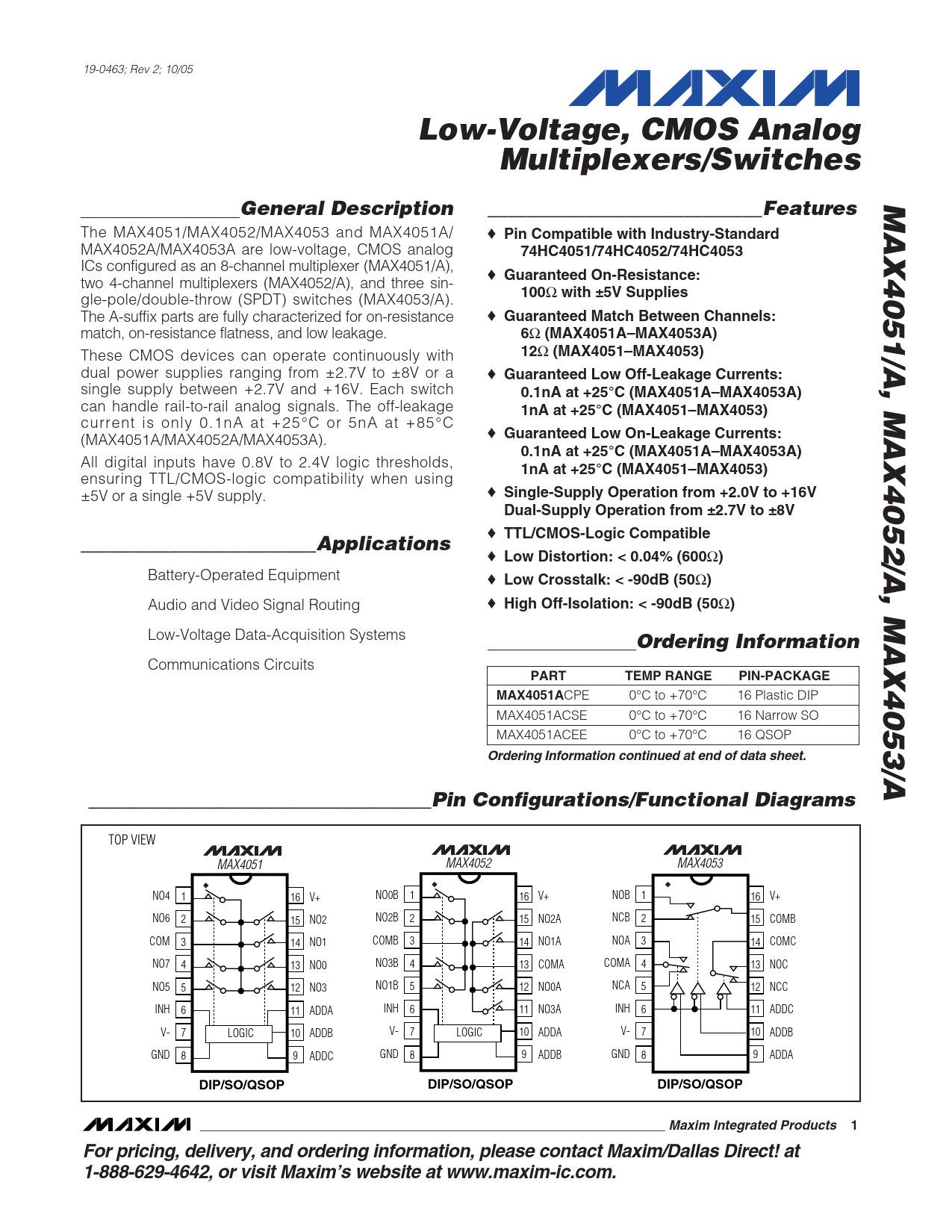

19-0463; Rev 2; 10/05
Low-Voltage, CMOS Analog Multiplexers/Switches MAX4051/A, MAX4052/A, MAX4053/A General Description ____________________________Features
The MAX4051/MAX4052/MAX4053 and MAX4051A/ ♦
Pin Compatible with Industry-Standard
MAX4052A/MAX4053A are low-voltage, CMOS analog
74HC4051/74HC4052/74HC4053
ICs configured as an 8-channel multiplexer (MAX4051/A), ♦
Guaranteed On-Resistance:
two 4-channel multiplexers (MAX4052/A), and three sin-
100

with ±5V Supplies
gle-pole/double-throw (SPDT) switches (MAX4053/A). The A-suffix parts are fully characterized for on-resistance ♦
Guaranteed Match Between Channels:
match, on-resistance flatness, and low leakage.
6

(MAX4051A–MAX4053A)
These CMOS devices can operate continuously with
12

(MAX4051–MAX4053)
dual power supplies ranging from ±2.7V to ±8V or a ♦
Guaranteed Low Off-Leakage Currents:
single supply between +2.7V and +16V. Each switch
0.1nA at +25°C (MAX4051A–MAX4053A)
can handle rail-to-rail analog signals. The off-leakage
1nA at +25°C (MAX4051–MAX4053)
current is only 0.1nA at +25°C or 5nA at +85°C ♦ (MAX4051A/MAX4052A/MAX4053A).
Guaranteed Low On-Leakage Currents: 0.1nA at +25°C (MAX4051A–MAX4053A)
All digital inputs have 0.8V to 2.4V logic thresholds,
1nA at +25°C (MAX4051–MAX4053)
ensuring TTL/CMOS-logic compatibility when using ±5V or a single +5V supply. ♦
Single-Supply Operation from +2.0V to +16V Dual-Supply Operation from ±2.7V to ±8V

TTL/CMOS-Logic Compatible ________________________Applications

Low Distortion: < 0.04% (600

)
Battery-Operated Equipment ♦
Low Crosstalk: < -90dB (50

)
Audio and Video Signal Routing ♦
High Off-Isolation: < -90dB (50

)
Low-Voltage Data-Acquisition Systems
Ordering Information
Communications Circuits
PART TEMP RANGE PIN-PACKAGE MAX4051A
CPE 0°C to +70°C 16 Plastic DIP MAX4051ACSE 0°C to +70°C 16 Narrow SO MAX4051ACEE 0°C to +70°C 16 QSOP
Ordering Information continued at end of data sheet. ___________________________________Pin Configurations/Functional Diagrams
TOP VIEW MAX4051 MAX4052 MAX4053 NO4 1 16 V+ NO0B 1 16 V+ NOB 1 16 V+ NO6 2 15 NO2 NO2B 2 15 NO2A NCB 2 15 COMB COM 3 14 NO1 COMB 3 14 NO1A NOA 3 14 COMC NO7 4 13 NO0 NO3B 4 13 COMA COMA 4 13 NOC NO5 5 12 NO3 NO1B 5 12 NO0A NCA 5 12 NCC INH 6 11 ADDA INH 6 11 NO3A INH 6 11 ADDC V- 7 LOGIC 10 ADDB V- 7 LOGIC 10 ADDA V- 7 10 ADDB GND 8 9 ADDC GND 8 9 ADDB GND 8 9 ADDA
DIP/SO/QSOP DIP/SO/QSOP DIP/SO/QSOP ________________________________________________________________ Maxim Integrated Products 1 For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
