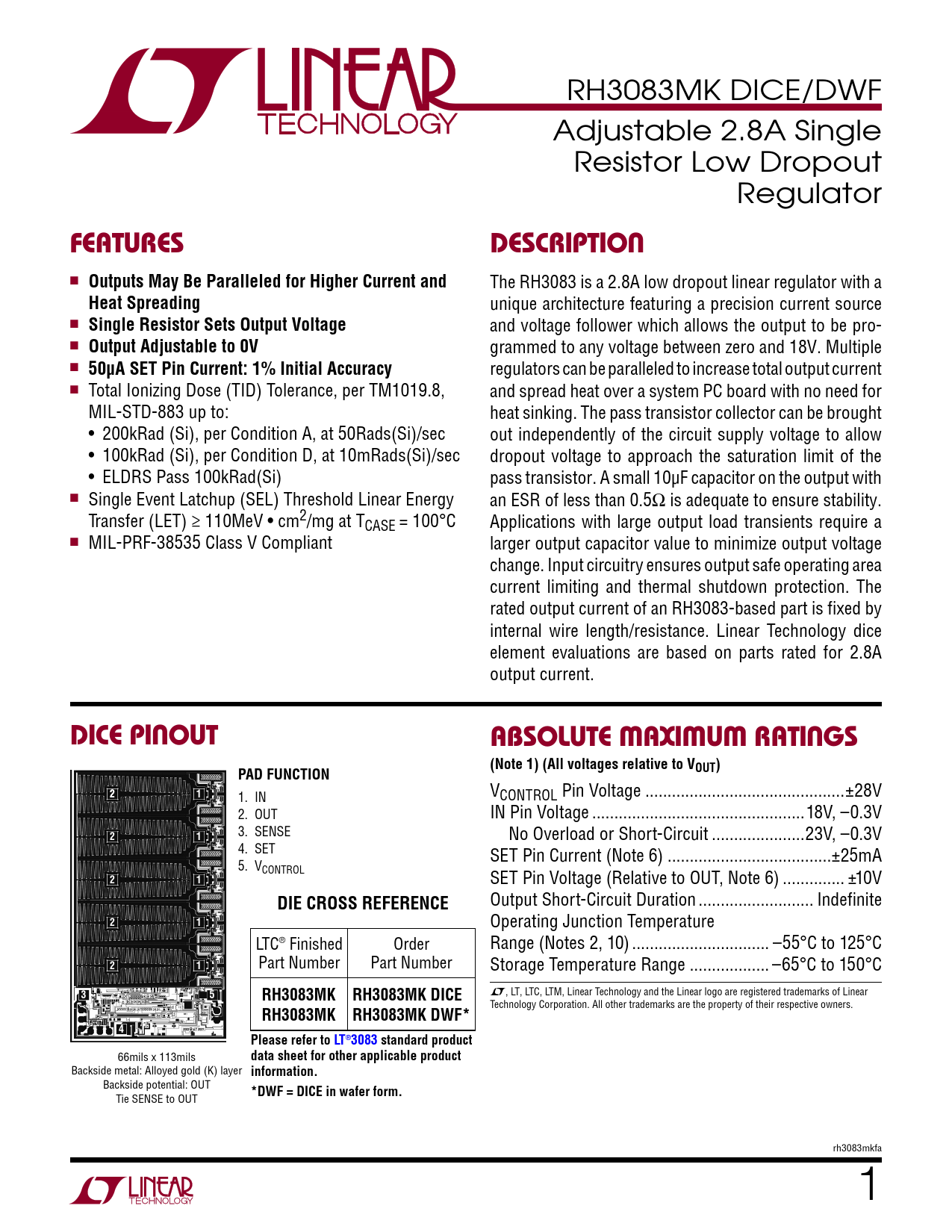

RH3083MK DICE/DWF Adjustable 2.8A Single Resistor Low Dropout Regulator
Features DescriPtion
n
Outputs May Be Paralleled for Higher Current and
The RH3083 is a 2.8A low dropout linear regulator with a
Heat Spreading
unique architecture featuring a precision current source n
Single Resistor Sets Output Voltage
and voltage follower which allows the output to be pro- n
Output Adjustable to 0V
grammed to any voltage between zero and 18V. Multiple n
50µA SET Pin Current: 1% Initial Accuracy
regulators can be paralleled to increase total output current n Total Ionizing Dose (TID) Tolerance, per TM1019.8, and spread heat over a system PC board with no need for MIL-STD-883 up to: heat sinking. The pass transistor collector can be brought • 200kRad (Si), per Condition A, at 50Rads(Si)/sec out independently of the circuit supply voltage to allow • 100kRad (Si), per Condition D, at 10mRads(Si)/sec dropout voltage to approach the saturation limit of the • ELDRS Pass 100kRad(Si) pass transistor. A small 10µF capacitor on the output with n Single Event Latchup (SEL) Threshold Linear Energy an ESR of less than 0.5Ω is adequate to ensure stability. Transfer (LET) ≥ 110MeV • cm2/mg at TCASE = 100°C Applications with large output load transients require a n MIL-PRF-38535 Class V Compliant larger output capacitor value to minimize output voltage change. Input circuitry ensures output safe operating area current limiting and thermal shutdown protection. The rated output current of an RH3083-based part is fixed by internal wire length/resistance. Linear Technology dice element evaluations are based on parts rated for 2.8A output current.
Dice Pinout absolute MaxiMuM ratings (Note 1) (All voltages relative to V PAD FUNCTION OUT) 2 1
V 1. IN CONTROL Pin Voltage ...±28V 2. OUT IN Pin Voltage ..18V, –0.3V 3. SENSE
2 1
No Overload or Short-Circuit ...23V, –0.3V 4. SET SET Pin Current (Note 6) ...±25mA 5. VCONTROL
2 1
SET Pin Voltage (Relative to OUT, Note 6) .. ±10V
DIE CROSS REFERENCE
Output Short-Circuit Duration .. Indefinite
2 1
Operating Junction Temperature LTC® Finished Order Range (Notes 2, 10) ... –55°C to 125°C
2 1
Part Number Part Number Storage Temperature Range .. –65°C to 150°C L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
3 5 RH3083MK RH3083MK DICE
Technology Corporation. All other trademarks are the property of their respective owners.
RH3083MK RH3083MK DWF* 4 Please refer to LT®3083 standard product
66mils x 113mils
data sheet for other applicable product
Backside metal: Alloyed gold (K) layer
information.
Backside potential: OUT
*DWF = DICE in wafer form.
Tie SENSE to OUT rh3083mkfa 1 Document Outline Features Description Dice Pinout Absolute Maximum Ratings Table 1. DICE/DWF Electrical Test Limits Table 2. Electrical Characteristics Table 3. Electrical Characteristics Table 4. Electrical Test Requirements Total Dose Bias Circuit Burn-In Circuit Typical Performance Characteristics Revision History
