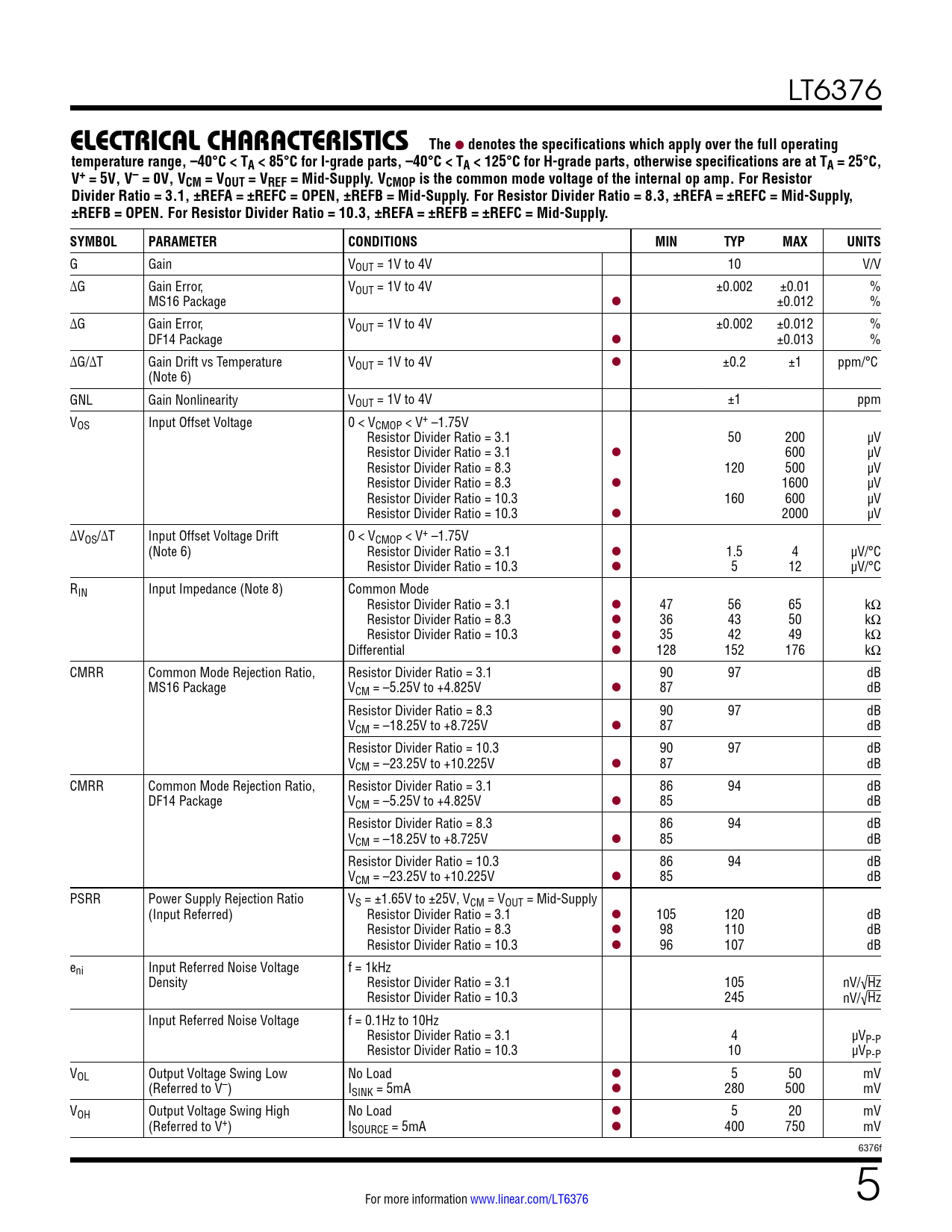

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating

ELECTRICAL CHARACTERISTICS The denotes the specifications which apply over the full operating

Línea de modelo para esta hoja de datos

Versión de texto del documento

LT6376
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, –40°C < TA < 85°C for I-grade parts, –40°C < TA < 125°C for H-grade parts, otherwise specifications are at TA = 25°C, V+ = 5V, V– = 0V, VCM = VOUT = VREF = Mid-Supply. VCMOP is the common mode voltage of the internal op amp. For Resistor Divider Ratio = 3.1, ±REFA = ±REFC = OPEN, ±REFB = Mid-Supply. For Resistor Divider Ratio = 8.3, ±REFA = ±REFC = Mid-Supply, ±REFB = OPEN. For Resistor Divider Ratio = 10.3, ±REFA = ±REFB = ±REFC = Mid-Supply. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
G Gain VOUT = 1V to 4V 10 V/V ∆G Gain Error, VOUT = 1V to 4V ±0.002 ±0.01 % MS16 Package l ±0.012 % ∆G Gain Error, VOUT = 1V to 4V ±0.002 ±0.012 % DF14 Package l ±0.013 % ∆G/∆T Gain Drift vs Temperature VOUT = 1V to 4V l ±0.2 ±1 ppm/°C (Note 6) GNL Gain Nonlinearity VOUT = 1V to 4V ±1 ppm VOS Input Offset Voltage 0 < VCMOP < V+ –1.75V Resistor Divider Ratio = 3.1 50 200 µV Resistor Divider Ratio = 3.1 l 600 µV Resistor Divider Ratio = 8.3 120 500 µV Resistor Divider Ratio = 8.3 l 1600 µV Resistor Divider Ratio = 10.3 160 600 µV Resistor Divider Ratio = 10.3 l 2000 µV ∆VOS/∆T Input Offset Voltage Drift 0 < VCMOP < V+ –1.75V (Note 6) Resistor Divider Ratio = 3.1 l 1.5 4 µV/°C Resistor Divider Ratio = 10.3 l 5 12 µV/°C RIN Input Impedance (Note 8) Common Mode Resistor Divider Ratio = 3.1 l 47 56 65 kΩ Resistor Divider Ratio = 8.3 l 36 43 50 kΩ Resistor Divider Ratio = 10.3 l 35 42 49 kΩ Differential l 128 152 176 kΩ CMRR Common Mode Rejection Ratio, Resistor Divider Ratio = 3.1 90 97 dB MS16 Package VCM = –5.25V to +4.825V l 87 dB Resistor Divider Ratio = 8.3 90 97 dB VCM = –18.25V to +8.725V l 87 dB Resistor Divider Ratio = 10.3 90 97 dB VCM = –23.25V to +10.225V l 87 dB CMRR Common Mode Rejection Ratio, Resistor Divider Ratio = 3.1 86 94 dB DF14 Package VCM = –5.25V to +4.825V l 85 dB Resistor Divider Ratio = 8.3 86 94 dB VCM = –18.25V to +8.725V l 85 dB Resistor Divider Ratio = 10.3 86 94 dB VCM = –23.25V to +10.225V l 85 dB PSRR Power Supply Rejection Ratio VS = ±1.65V to ±25V, VCM = VOUT = Mid-Supply (Input Referred) Resistor Divider Ratio = 3.1 l 105 120 dB Resistor Divider Ratio = 8.3 l 98 110 dB Resistor Divider Ratio = 10.3 l 96 107 dB eni Input Referred Noise Voltage f = 1kHz Density Resistor Divider Ratio = 3.1 105 nV/√Hz Resistor Divider Ratio = 10.3 245 nV/√Hz Input Referred Noise Voltage f = 0.1Hz to 10Hz Resistor Divider Ratio = 3.1 4 µV P-P Resistor Divider Ratio = 10.3 10 µVP-P VOL Output Voltage Swing Low No Load l 5 50 mV (Referred to V–) ISINK = 5mA l 280 500 mV VOH Output Voltage Swing High No Load l 5 20 mV (Referred to V+) ISOURCE = 5mA l 400 750 mV 6376f For more information www.linear.com/LT6376 5 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION E LECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS BLOCK DIAGRAM APPLICATIONS INFORMATION TYPICAL APPLICATIONS PACKAGE DESCRIPTION TYPICAL APPLICATION RELATED PARTS
