Datasheet L78L (STMicroelectronics) - 10

FabricanteSTMicroelectronics
DescripciónPositive voltage regulators
Páginas / Página45 / 10 — Electrical. L78L. Table 7: Electrical characteristics of L78L10C. Symbol. …
Formato / tamaño de archivoPDF / 1.6 Mb
Idioma del documentoInglés

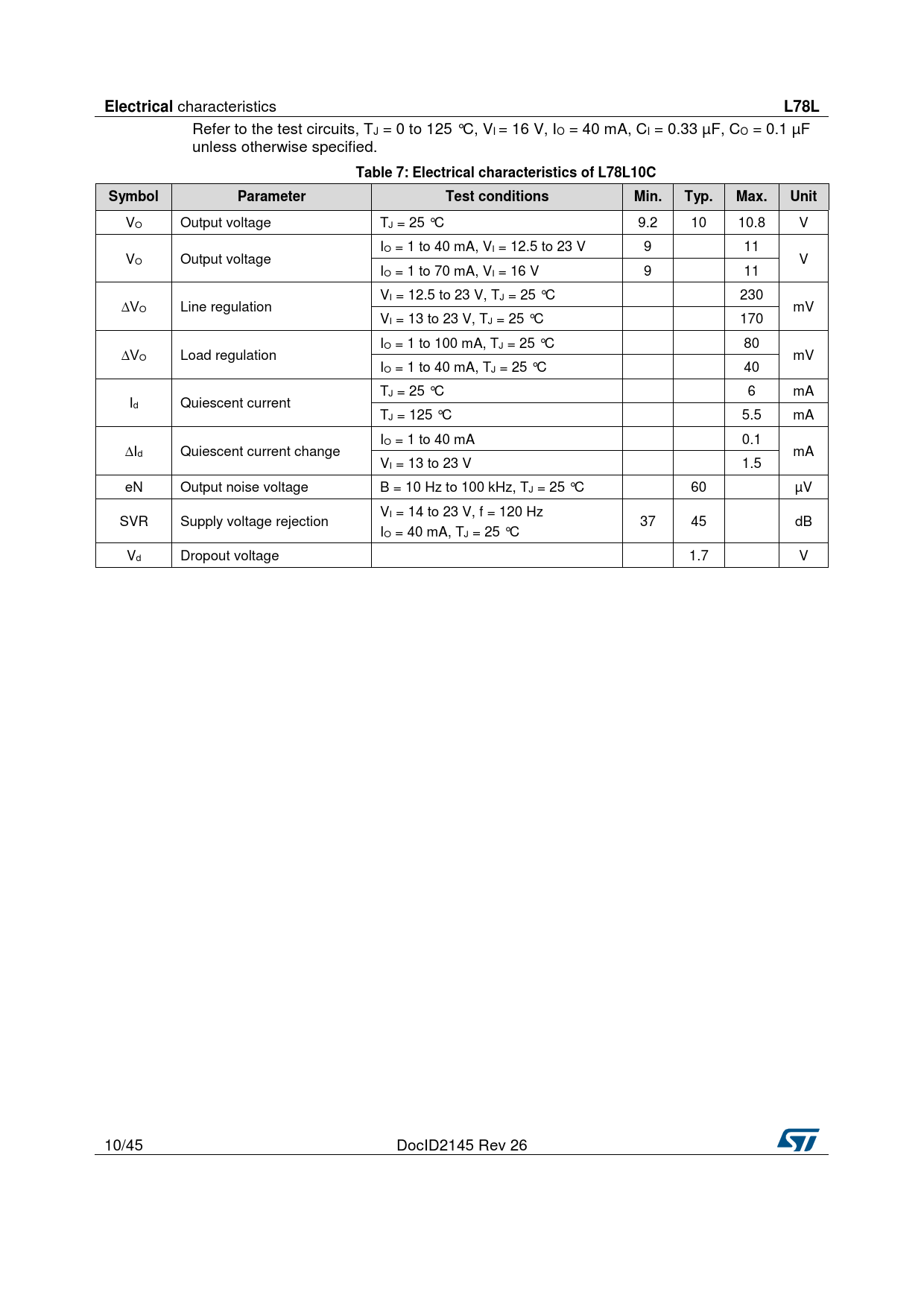

Electrical. L78L. Table 7: Electrical characteristics of L78L10C. Symbol. Parameter. Test conditions. Min. Typ. Max. Unit

Electrical L78L Table 7: Electrical characteristics of L78L10C Symbol Parameter Test conditions Min Typ Max Unit

Línea de modelo para esta hoja de datos

Versión de texto del documento

Electrical
characteristics
L78L
Refer to the test circuits, TJ = 0 to 125 °C, VI = 16 V, IO = 40 mA, CI = 0.33 µF, CO = 0.1 µF unless otherwise specified.
Table 7: Electrical characteristics of L78L10C Symbol Parameter Test conditions Min. Typ. Max. Unit
VO Output voltage TJ = 25 °C 9.2 10 10.8 V IO = 1 to 40 mA, VI = 12.5 to 23 V 9 11 VO Output voltage V IO = 1 to 70 mA, VI = 16 V 9 11 VI = 12.5 to 23 V, TJ = 25 °C 230 ∆VO Line regulation mV VI = 13 to 23 V, TJ = 25 °C 170 IO = 1 to 100 mA, TJ = 25 °C 80 ∆VO Load regulation mV IO = 1 to 40 mA, TJ = 25 °C 40 TJ = 25 °C 6 mA Id Quiescent current TJ = 125 °C 5.5 mA IO = 1 to 40 mA 0.1 ∆Id Quiescent current change mA VI = 13 to 23 V 1.5 eN Output noise voltage B = 10 Hz to 100 kHz, TJ = 25 °C 60 µV VI = 14 to 23 V, f = 120 Hz SVR Supply voltage rejection 37 45 dB IO = 40 mA, TJ = 25 °C Vd Dropout voltage 1.7 V 10/45 DocID2145 Rev 26
