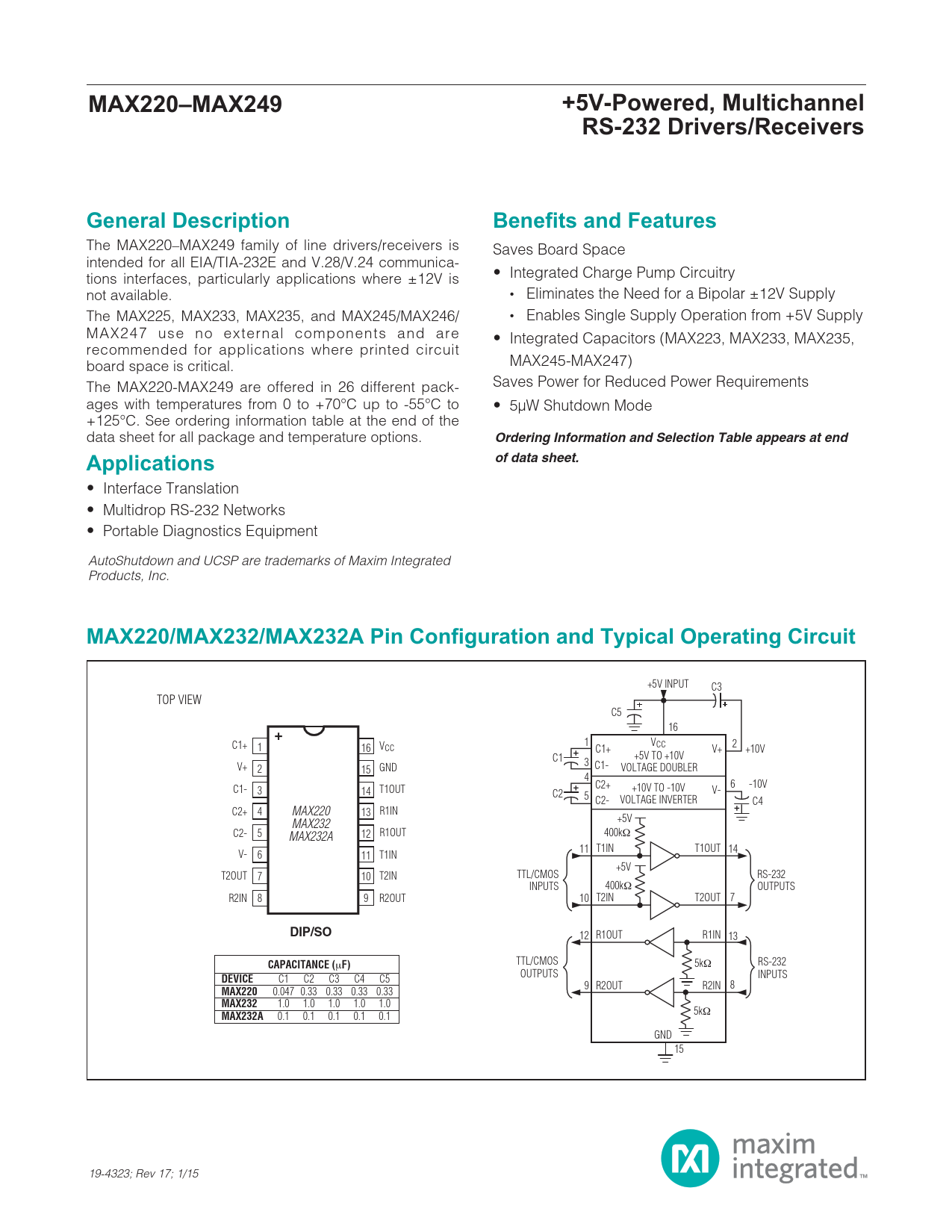

MAX220–MAX249 +5V-Powered, Multichannel RS-232 Drivers/Receivers General Description Benefits and Features
The MAX220–MAX249 family of line drivers/receivers is Saves Board Space intended for all EIA/TIA-232E and V.28/V.24 communica-

tions interfaces, particularly applications where ±12V is Integrated Charge Pump Circuitry not available. • Eliminates the Need for a Bipolar ±12V Supply The MAX225, MAX233, MAX235, and MAX245/MAX246/ • Enables Single Supply Operation from +5V Supply MAX247 use no external components and are

Integrated Capacitors (MAX223, MAX233, MAX235, recommended for applications where printed circuit board space is critical. MAX245-MAX247) The MAX220-MAX249 are offered in 26 different pack- Saves Power for Reduced Power Requirements ages with temperatures from 0 to +70°C up to -55°C to

5µW Shutdown Mode +125°C. See ordering information table at the end of the data sheet for all package and temperature options.
Ordering Information and Selection Table appears at end Applications of data sheet.
Interface Translation

Multidrop RS-232 Networks

Portable Diagnostics Equipment AutoShutdown and UCSP are trademarks of Maxim Integrated Products, Inc.
MAX220/MAX232/MAX232A Pin Configuration and Typical Operating Circuit
+5V INPUT C3 TOP VIEW C5 16
+
C1+ V 1 1 16 V CC 2 CC C1+ V+ +10V C1 +5V TO +10V 3 V+ 2 15 GND C1- VOLTAGE DOUBLER 4 C2+ 6 C1- -10V 3 14 T1OUT +10V TO -10V V- C2 5 C2- VOLTAGE INVERTER C4 C2+ 4 MAX220 13 R1IN MAX232 +5V C2- 5 12 MAX232A R1OUT 400kΩ T1IN T1OUT V- 11 14 6 11 T1IN +5V T2OUT 7 10 T2IN TTL/CMOS RS-232 INPUTS 400kΩ OUTPUTS R2IN 8 9 R2OUT 10 T2IN T2OUT 7
DIP/SO
12 R1OUT R1IN 13 TTL/CMOS
CAPACITANCE (
5k RS-232 μ
F)
Ω OUTPUTS INPUTS
DEVICE
C1 C2 C3 C4 C5 9 R2OUT R2IN 8
MAX220
0.047 0.33 0.33 0.33 0.33
MAX232
1.0 1.0 1.0 1.0 1.0 5kΩ
MAX232A
0.1 0.1 0.1 0.1 0.1 GND 15 19-4323; Rev 17; 1/15
