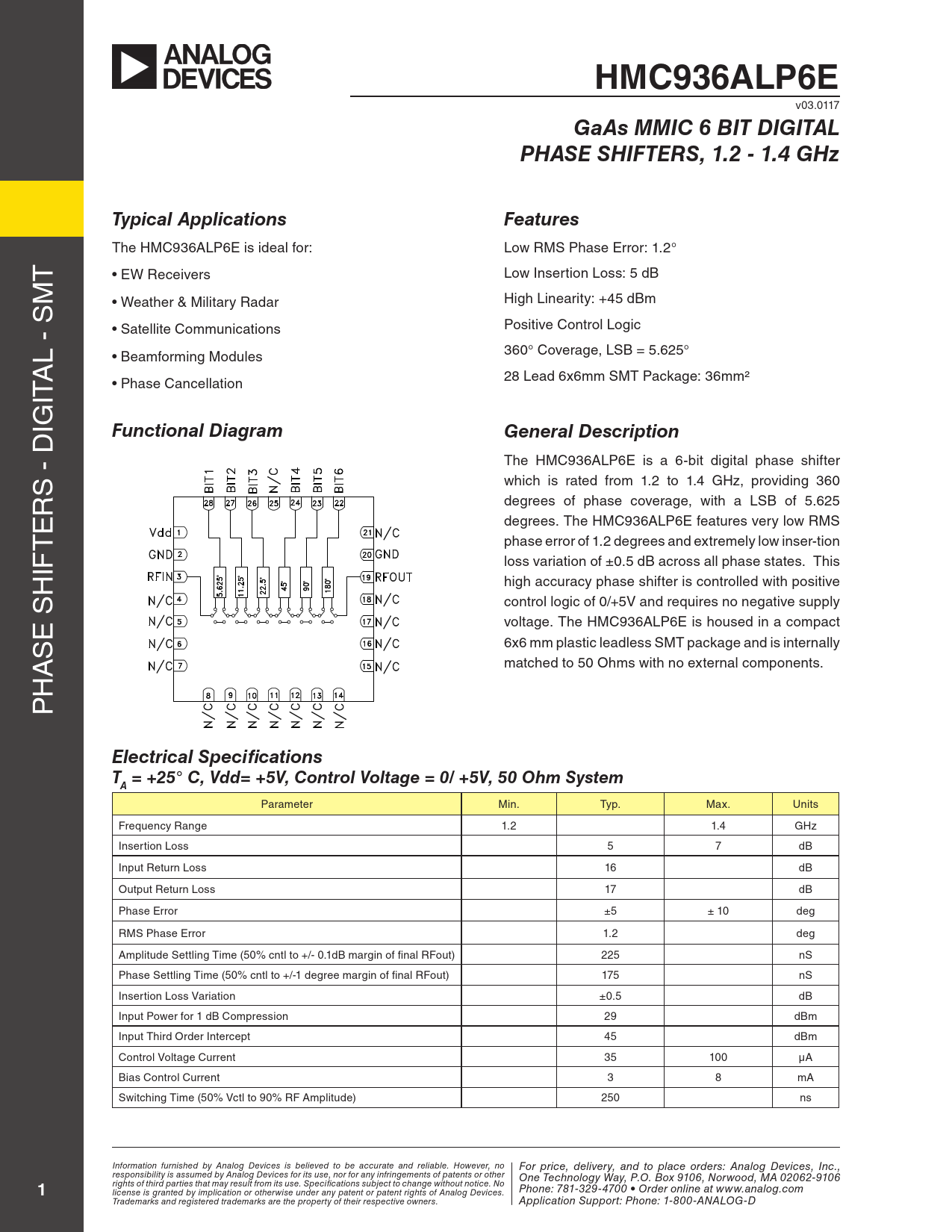

HMC936ALP6E
v03.0117
GaAs MMIC 6 BIT DIGITAL PHASE SHIFTERS, 1.2 - 1.4 GHz Typical Applications Features
The HMC936ALP6E is ideal for: Low RMS Phase Error: 1.2° T • EW Receivers Low Insertion Loss: 5 dB M • Weather & Military Radar High Linearity: +45 dBm Positive Control Logic • Satellite Communications L - S 360° Coverage, LSB = 5.625° • Beamforming Modules 28 Lead 6x6mm SMT Package: 36mm² ITA • Phase Cancel ation IG
Functional Diagram General Description
The HMC936ALP6E is a 6-bit digital phase shifter S - D which is rated from 1.2 to 1.4 GHz, providing 360 R degrees of phase coverage, with a LSB of 5.625 E degrees. The HMC936ALP6E features very low RMS T phase error of 1.2 degrees and extremely low inser-tion IF loss variation of ±0.5 dB across all phase states. This H high accuracy phase shifter is control ed with positive control logic of 0/+5V and requires no negative supply E S voltage. The HMC936ALP6E is housed in a compact S 6x6 mm plastic leadless SMT package and is internal y A matched to 50 Ohms with no external components. H P
Electrical Specifications T = +25° C, Vdd= +5V, Control Voltage = 0/ +5V, 50 Ohm System A
Parameter Min. Typ. Max. Units Frequency Range 1.2 1.4 GHz Insertion Loss 5 7 dB Input Return Loss 16 dB Output Return Loss 17 dB Phase Error ±5 ± 10 deg RMS Phase Error 1.2 deg Amplitude Settling Time (50% cntl to +/- 0.1dB margin of final RFout) 225 nS Phase Settling Time (50% cntl to +/-1 degree margin of final RFout) 175 nS Insertion Loss Variation ±0.5 dB Input Power for 1 dB Compression 29 dBm Input Third Order Intercept 45 dBm Control Voltage Current 35 100 µA Bias Control Current 3 8 mA Switching Time (50% Vctl to 90% RF Amplitude) 250 ns Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D Document Outline Typical Applications Features Functional Diagram General Description Electrical Specifications Phase Error vs. State Insertion Loss vs. Temperature, Major States Only RMS Phase Error vs. Temperature Input P1dB, Major States Only Input IP2, Major States Only Input IP3, Major States Only Relative Phase Shift, RMS, Average, Max, All States Relative Phase Shift Major States Including All Bits Output Return Loss, Major States Only Phase Error, Major States Only Input Return Loss, Major States Only Normalized Loss, Major States Only Insertion Loss, Major States Only Absolute Maximum Ratings Bias Voltage & Current Control Voltage Truth Table Outline Drawing Package Information Pin Descriptions Evaluation PCB List of Materials
