HMC361G8. SMT GaAs HBT MMIC. DIVIDE-BY-2, 0.01 - 13 GHz. Typical Applications. Features. Functional Diagram. General Description

Datasheet HMC361G8 Analog Devices

Línea de modelo para esta hoja de datos

Versión de texto del documento

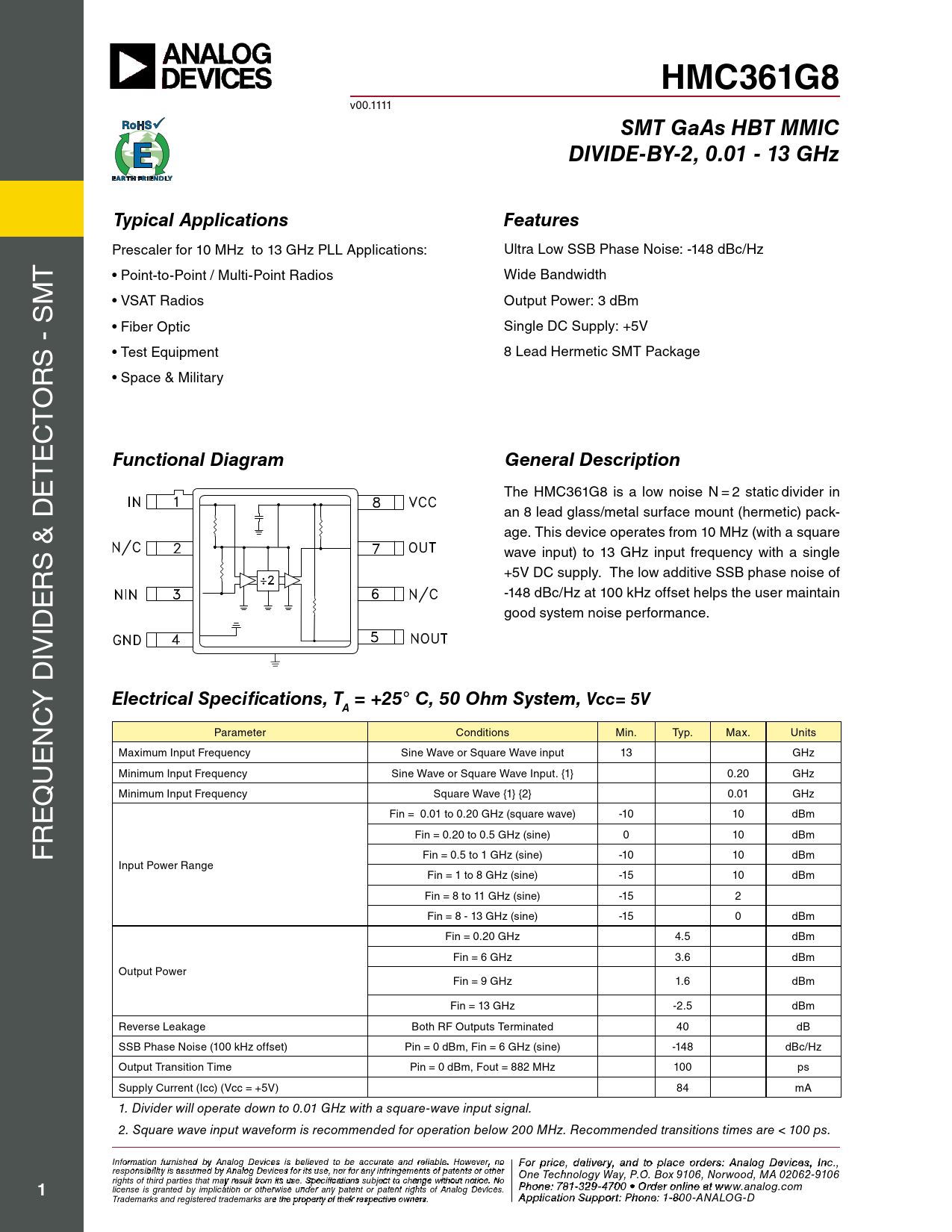

HMC361G8
v00.1111
SMT GaAs HBT MMIC DIVIDE-BY-2, 0.01 - 13 GHz Typical Applications Features
Prescaler for 10 MHz to 13 GHz PLL Applications: ultra Low ssB Phase noise: -148 dBc/Hz t • Point-to-Point / Multi-Point Radios Wide Bandwidth M s • VSAT Radios output Power: 3 dBm • Fiber Optic single Dc supply: +5v s - • Test Equipment 8 Lead Hermetic sMt Package r • Space & Military o t c e t
Functional Diagram General Description
e the HMc361G8 is a low noise n = 2 static divider in an 8 lead glass/metal surface mount (hermetic) pack- age. this device operates from 10 MHz (with a square s & D wave input) to 13 GHz input frequency with a single r +5v Dc supply. the low additive ssB phase noise of e -148 dBc/Hz at 100 kHz offset helps the user maintain iD good system noise performance. iv y D
Electrical Specifications, T = +25° C, 50 Ohm System, Vcc= 5V
c
A
n Parameter conditions Min. typ. Max. units e Maximum input Frequency sine Wave or square Wave input 13 GHz u Minimum input Frequency sine Wave or square Wave input. {1} 0.20 GHz q Minimum input Frequency square Wave {1} {2} 0.01 GHz e Fin = 0.01 to 0.20 GHz (square wave) -10 10 dBm r Fin = 0.20 to 0.5 GHz (sine) 0 10 dBm F Fin = 0.5 to 1 GHz (sine) -10 10 dBm input Power range Fin = 1 to 8 GHz (sine) -15 10 dBm Fin = 8 to 11 GHz (sine) -15 2 Fin = 8 - 13 GHz (sine) -15 0 dBm Fin = 0.20 GHz 4.5 dBm Fin = 6 GHz 3.6 dBm output Power Fin = 9 GHz 1.6 dBm Fin = 13 GHz -2.5 dBm reverse Leakage Both rF outputs terminated 40 dB ssB Phase noise (100 kHz offset) Pin = 0 dBm, Fin = 6 GHz (sine) -148 dBc/Hz output transition time Pin = 0 dBm, Fout = 882 MHz 100 ps supply current (icc) (vcc = +5v) 84 mA 1. Divider will operate down to 0.01 GHz with a square-wave input signal. 2. Square wave input waveform is recommended for operation below 200 MHz. Recommended transitions times are < 100 ps. Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd ho e ne r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o tniltie n .c e ao t m
1
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 o plica r a tio p n S p u s p @ po h rt itt : P ite ho . n c e o : 1m -800-ANALOG-D
