LTC3766
ELECTRICAL CHARACTERISTICS The
l

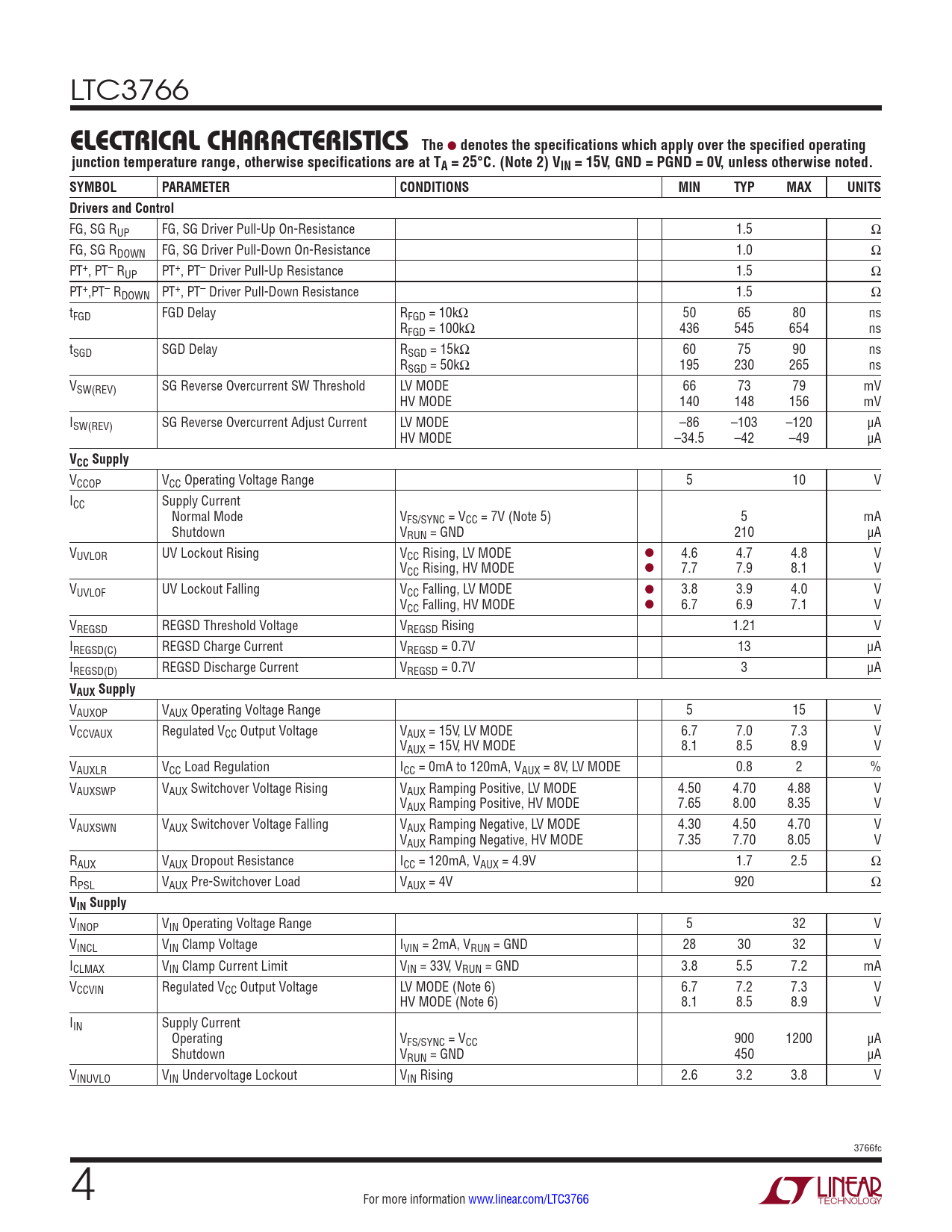

denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TA = 25°C. (Note 2) VIN = 15V, GND = PGND = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Drivers and Control
