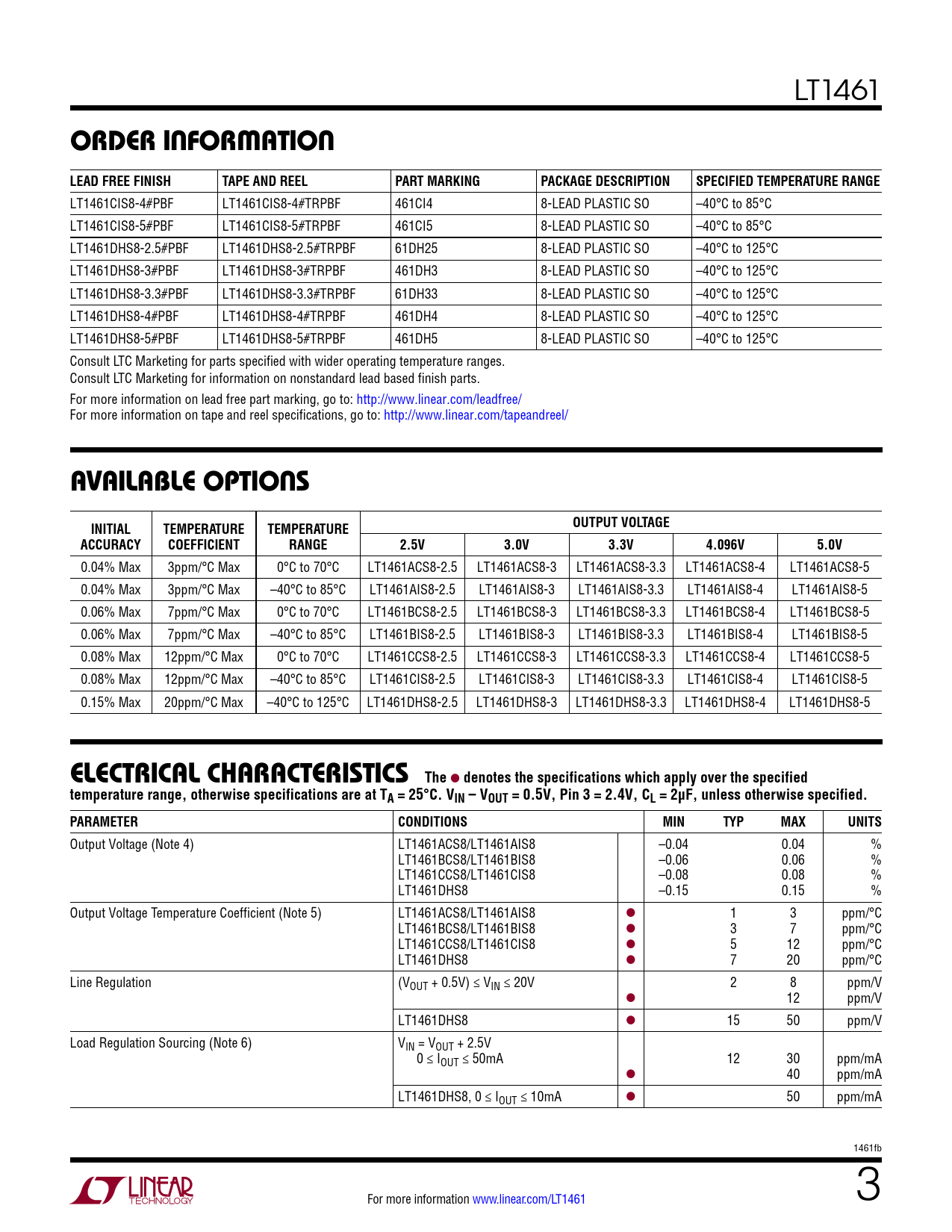

orDer inForMaTion LEAD FREE FINISH. TAPE AND REEL. PART MARKING. PACKAGE DESCRIPTION. SPECIFIED TEMPERATURE RANGE

orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE

Línea de modelo para esta hoja de datos

Versión de texto del documento

LT1461
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1461CIS8-4#PBF LT1461CIS8-4#TRPBF 461CI4 8-LEAD PLASTIC SO –40°C to 85°C LT1461CIS8-5#PBF LT1461CIS8-5#TRPBF 461CI5 8-LEAD PLASTIC SO –40°C to 85°C LT1461DHS8-2.5#PBF LT1461DHS8-2.5#TRPBF 61DH25 8-LEAD PLASTIC SO –40°C to 125°C LT1461DHS8-3#PBF LT1461DHS8-3#TRPBF 461DH3 8-LEAD PLASTIC SO –40°C to 125°C LT1461DHS8-3.3#PBF LT1461DHS8-3.3#TRPBF 61DH33 8-LEAD PLASTIC SO –40°C to 125°C LT1461DHS8-4#PBF LT1461DHS8-4#TRPBF 461DH4 8-LEAD PLASTIC SO –40°C to 125°C LT1461DHS8-5#PBF LT1461DHS8-5#TRPBF 461DH5 8-LEAD PLASTIC SO –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
available opTions INITIAL TEMPERATURE TEMPERATURE OUTPUT VOLTAGE ACCURACY COEFFICIENT RANGE 2.5V 3.0V 3.3V 4.096V 5.0V
0.04% Max 3ppm/°C Max 0°C to 70°C LT1461ACS8-2.5 LT1461ACS8-3 LT1461ACS8-3.3 LT1461ACS8-4 LT1461ACS8-5 0.04% Max 3ppm/°C Max –40°C to 85°C LT1461AIS8-2.5 LT1461AIS8-3 LT1461AIS8-3.3 LT1461AIS8-4 LT1461AIS8-5 0.06% Max 7ppm/°C Max 0°C to 70°C LT1461BCS8-2.5 LT1461BCS8-3 LT1461BCS8-3.3 LT1461BCS8-4 LT1461BCS8-5 0.06% Max 7ppm/°C Max –40°C to 85°C LT1461BIS8-2.5 LT1461BIS8-3 LT1461BIS8-3.3 LT1461BIS8-4 LT1461BIS8-5 0.08% Max 12ppm/°C Max 0°C to 70°C LT1461CCS8-2.5 LT1461CCS8-3 LT1461CCS8-3.3 LT1461CCS8-4 LT1461CCS8-5 0.08% Max 12ppm/°C Max –40°C to 85°C LT1461CIS8-2.5 LT1461CIS8-3 LT1461CIS8-3.3 LT1461CIS8-4 LT1461CIS8-5 0.15% Max 20ppm/°C Max –40°C to 125°C LT1461DHS8-2.5 LT1461DHS8-3 LT1461DHS8-3.3 LT1461DHS8-4 LT1461DHS8-5
