Datasheet REF01, REF02, REF03 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | 2.5 V Precision Voltage Reference |
| Páginas / Página | 20 / 6 — REF01/REF02/REF03. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL … |
| Revisión | M |
| Formato / tamaño de archivo | PDF / 682 Kb |
| Idioma del documento | Inglés |

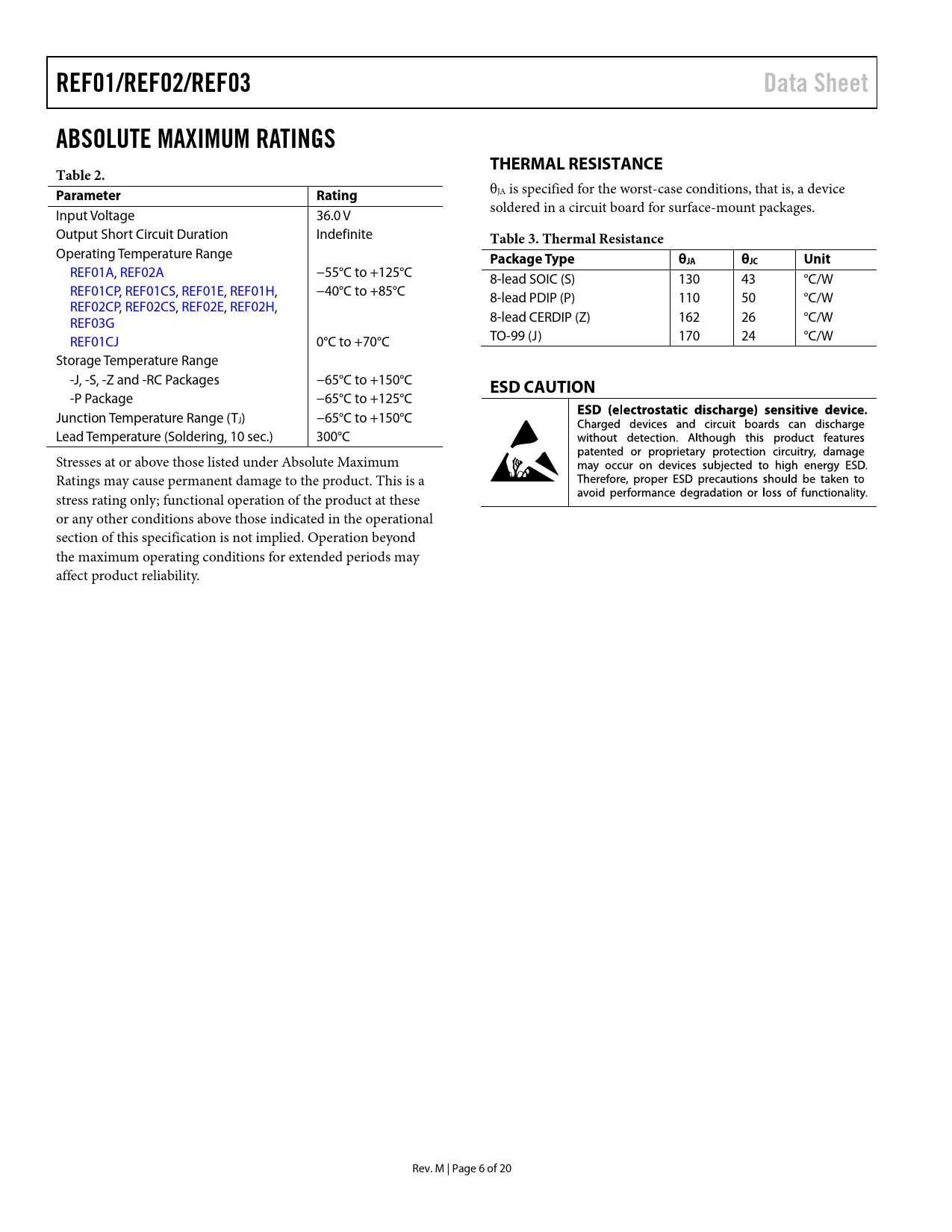

REF01/REF02/REF03. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 2. Parameter. Rating
Línea de modelo para esta hoja de datos
- 5962-8958101PA REF01AJ/883C REF01CJ REF01CPZ REF01CSZ REF01CSZ-REEL REF01CSZ-REEL7 REF01EZ REF01HPZ REF01HZ
Versión de texto del documento
REF01/REF02/REF03 Data Sheet ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 2. Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Input Voltage 36.0 V soldered in a circuit board for surface-mount packages. Output Short Circuit Duration Indefinite
Table 3. Thermal Resistance
Operating Temperature Range
Package Type θJA θJC Unit
REF01A, REF02A −55°C to +125°C 8-lead SOIC (S) 130 43 °C/W REF01CP, REF01CS, REF01E, REF01H, −40°C to +85°C 8-lead PDIP (P) 110 50 °C/W REF02CP, REF02CS, REF02E, REF02H, REF03G 8-lead CERDIP (Z) 162 26 °C/W REF01CJ 0°C to +70°C TO-99 (J) 170 24 °C/W Storage Temperature Range -J, -S, -Z and -RC Packages −65°C to +150°C
ESD CAUTION
-P Package −65°C to +125°C Junction Temperature Range (TJ) −65°C to +150°C Lead Temperature (Soldering, 10 sec.) 300°C Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. M | Page 6 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS REF01 SPECIFICATIONS REF02 SPECIFICATIONS REF03 SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION INPUT AND OUTPUT CAPACITORS OUTPUT ADJUSTMENT TEMPERATURE MONITORING LONG-TERM STABILITY BURN-IN POWER DISSIPATION APPLICATIONS INFORMATION BASIC REFERENCE APPLICATION LOW COST CURRENT SOURCE PRECISION CURRENT SOURCE WITH ADJUSTABLE OUTPUT PRECISION BOOSTED OUTPUT REGULATOR BIPOLAR VOLTAGE REFERENCE ADJUSTABLE REFERENCE WITH POSITIVE AND NEGATIVE SWING OUTLINE DIMENSIONS REF01 ORDERING GUIDE REF02 ORDERING GUIDE REF03 ORDERING GUIDE
