| Descripción | Ultralow VIN, 15A DC/DC µModule Regulator |
| Páginas / Página | 30 / 2 — absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion … |
| Formato / tamaño de archivo | PDF / 493 Kb |
| Idioma del documento | Inglés |
absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion LEAD FREE FINISH. TRAY. PART MARKING*. PACKAGE DESCRIPTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTM4611
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)

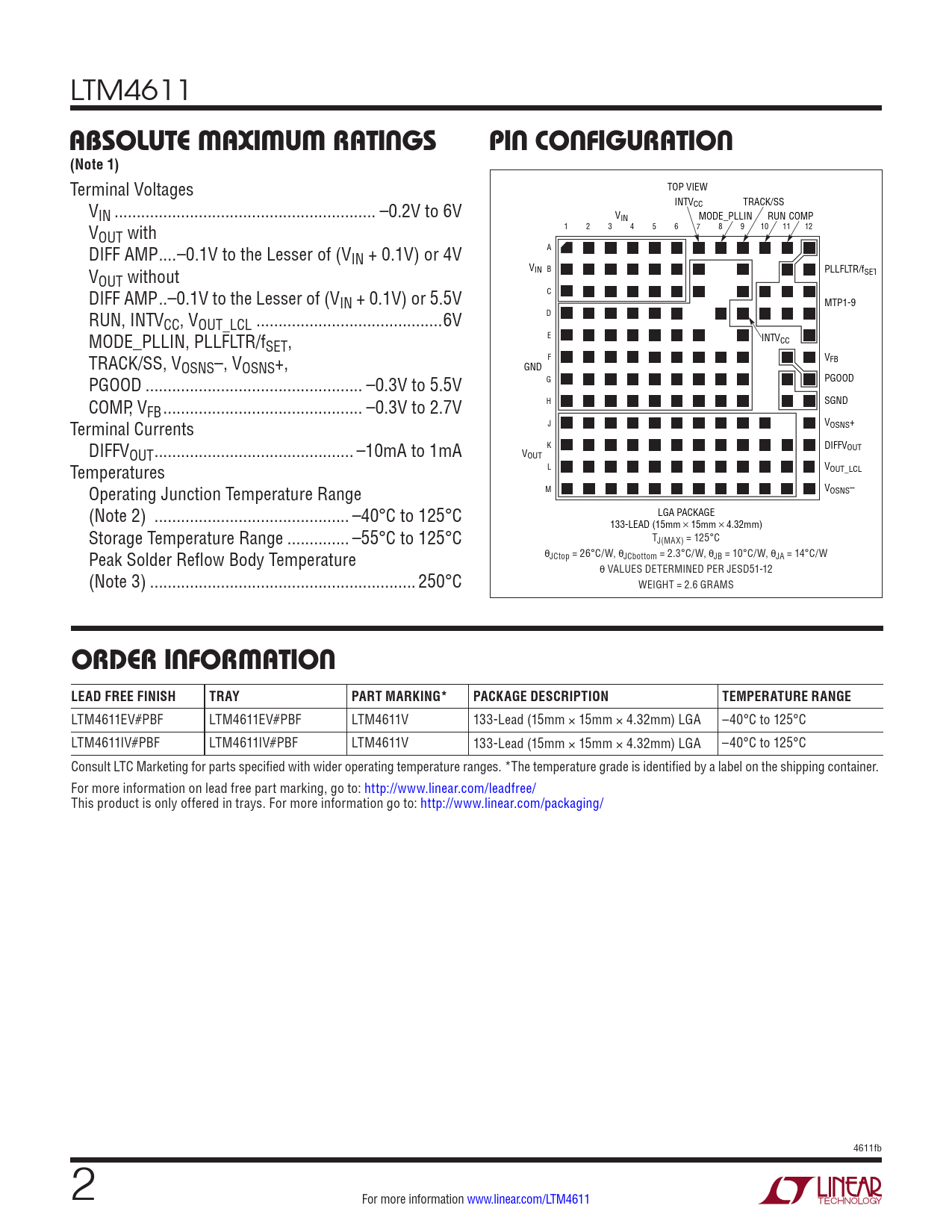

Terminal Voltages TOP VIEW V INTVCC TRACK/SS IN ... –0.2V to 6V VIN MODE_PLLIN RUN COMP V 1 2 3 4 5 6 7 8 9 10 11 12 OUT with DIFF AMP ..–0.1V to the Lesser of (V A IN + 0.1V) or 4V V VIN B PLLFLTR/f OUT without SET DIFF AMP ..–0.1V to the Lesser of (V C IN + 0.1V) or 5.5V MTP1-9 RUN, INTV D CC, VOUT_LCL ..6V MODE_PLLIN, PLLFLTR/f E SET, INTVCC TRACK/SS, V F V OSNS–, VOSNS+, FB GND PGOOD ... –0.3V to 5.5V G PGOOD COMP, V H SGND FB ... –0.3V to 2.7V Terminal Currents J VOSNS+ DIFFV K DIFFV OUT ... –10mA to 1mA OUT VOUT Temperatures L VOUT_LCL Operating Junction Temperature Range M VOSNS– (Note 2) .. –40°C to 125°C LGA PACKAGE 133-LEAD (15mm × 15mm × 4.32mm) Storage Temperature Range .. –55°C to 125°C TJ(MAX) = 125°C Peak Solder Reflow Body Temperature θJCtop = 26°C/W, θJCbottom = 2.3°C/W, θJB = 10°C/W, θJA = 14°C/W (Note 3) .. 250°C θ VALUES DETERMINED PER JESD51-12 WEIGHT = 2.6 GRAMS
orDer inForMaTion LEAD FREE FINISH TRAY PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTM4611EV#PBF LTM4611EV#PBF LTM4611V 133-Lead (15mm × 15mm × 4.32mm) LGA –40°C to 125°C LTM4611IV#PBF LTM4611IV#PBF LTM4611V 133-Lead (15mm × 15mm × 4.32mm) LGA –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http:/ www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http:/ www.linear.com/packaging/ 4611fb 2 For more information www.linear.com/LTM4611 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Decoupling Requirements Operation Applications Information Typical Applications Package Photograph Package Description Revision History Typical Application Related Parts
