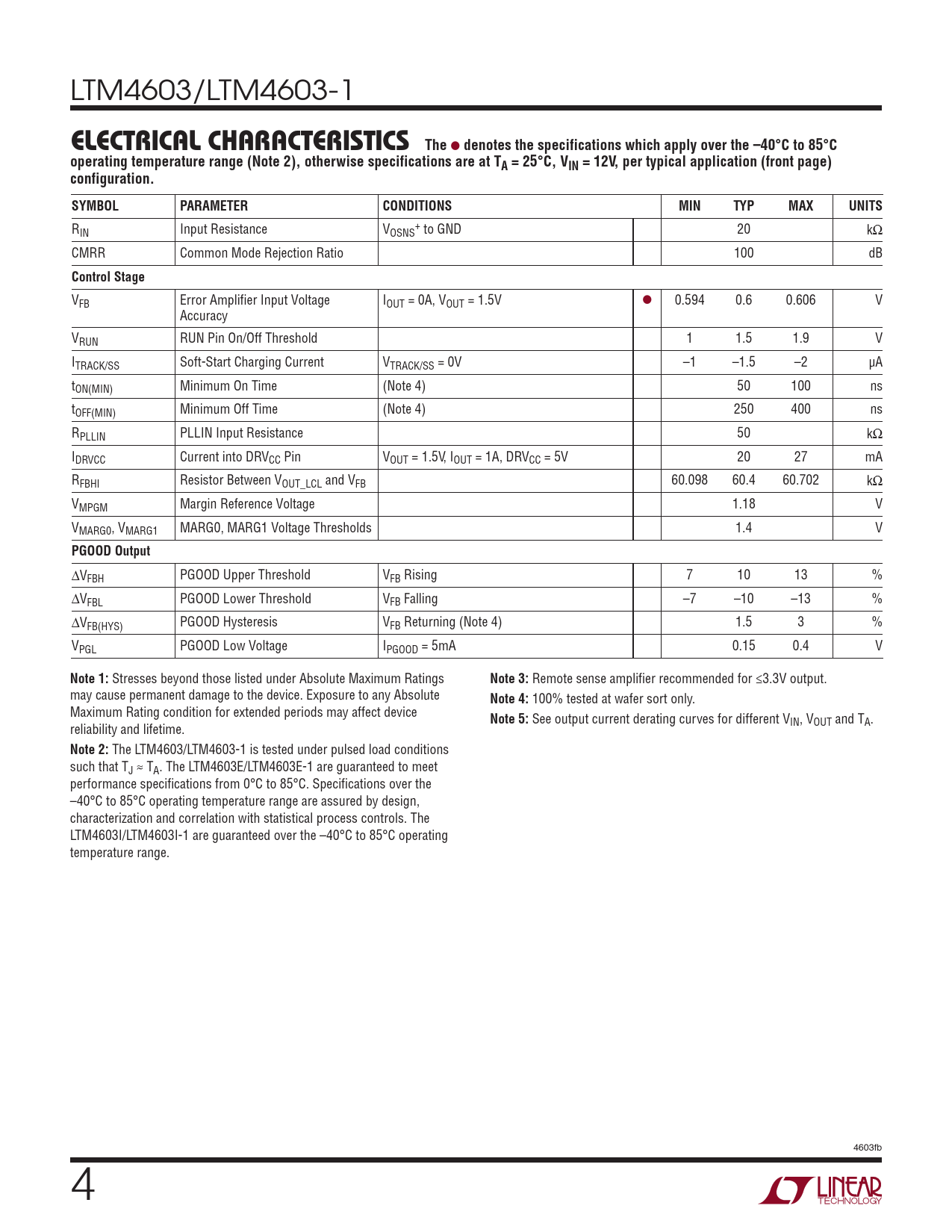

electrical characteristics The. denotes the specifications which apply over the –40°C to 85°C
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTM4603/LTM4603-1
electrical characteristics The
l
denotes the specifications which apply over the –40°C to 85°C operating temperature range (Note 2), otherwise specifications are at TA = 25°C, VIN = 12V, per typical application (front page) configuration. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
R + IN Input Resistance VOSNS to GND 20 kW CMRR Common Mode Rejection Ratio 100 dB
Control Stage
VFB Error Amplifier Input Voltage IOUT = 0A, VOUT = 1.5V l 0.594 0.6 0.606 V Accuracy VRUN RUN Pin On/Off Threshold 1 1.5 1.9 V ITRACK/SS Soft-Start Charging Current VTRACK/SS = 0V –1 –1.5 –2 µA tON(MIN) Minimum On Time (Note 4) 50 100 ns tOFF(MIN) Minimum Off Time (Note 4) 250 400 ns RPLLIN PLLIN Input Resistance 50 kW IDRVCC Current into DRVCC Pin VOUT = 1.5V, IOUT = 1A, DRVCC = 5V 20 27 mA RFBHI Resistor Between VOUT_LCL and VFB 60.098 60.4 60.702 kW VMPGM Margin Reference Voltage 1.18 V VMARG0, VMARG1 MARG0, MARG1 Voltage Thresholds 1.4 V
PGOOD Output
ΔVFBH PGOOD Upper Threshold VFB Rising 7 10 13 % ΔVFBL PGOOD Lower Threshold VFB Falling –7 –10 –13 % ΔVFB(HYS) PGOOD Hysteresis VFB Returning (Note 4) 1.5 3 % VPGL PGOOD Low Voltage IPGOOD = 5mA 0.15 0.4 V
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
Remote sense amplifier recommended for ≤3.3V output. may cause permanent damage to the device. Exposure to any Absolute
Note 4:
100% tested at wafer sort only. Maximum Rating condition for extended periods may affect device
Note 5:
See output current derating curves for different V reliability and lifetime. IN, VOUT and TA.
Note 2:
The LTM4603/LTM4603-1 is tested under pulsed load conditions such that TJ ≈ TA. The LTM4603E/LTM4603E-1 are guaranteed to meet performance specifications from 0°C to 85°C. Specifications over the –40°C to 85°C operating temperature range are assured by design, characterization and correlation with statistical process controls. The LTM4603I/LTM4603I-1 are guaranteed over the –40°C to 85°C operating temperature range. 4603fb 4 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Decoupling Requirements Operation Applications Information Typical Application Package Description Revision History Typical Application Package Photograph Related Parts
