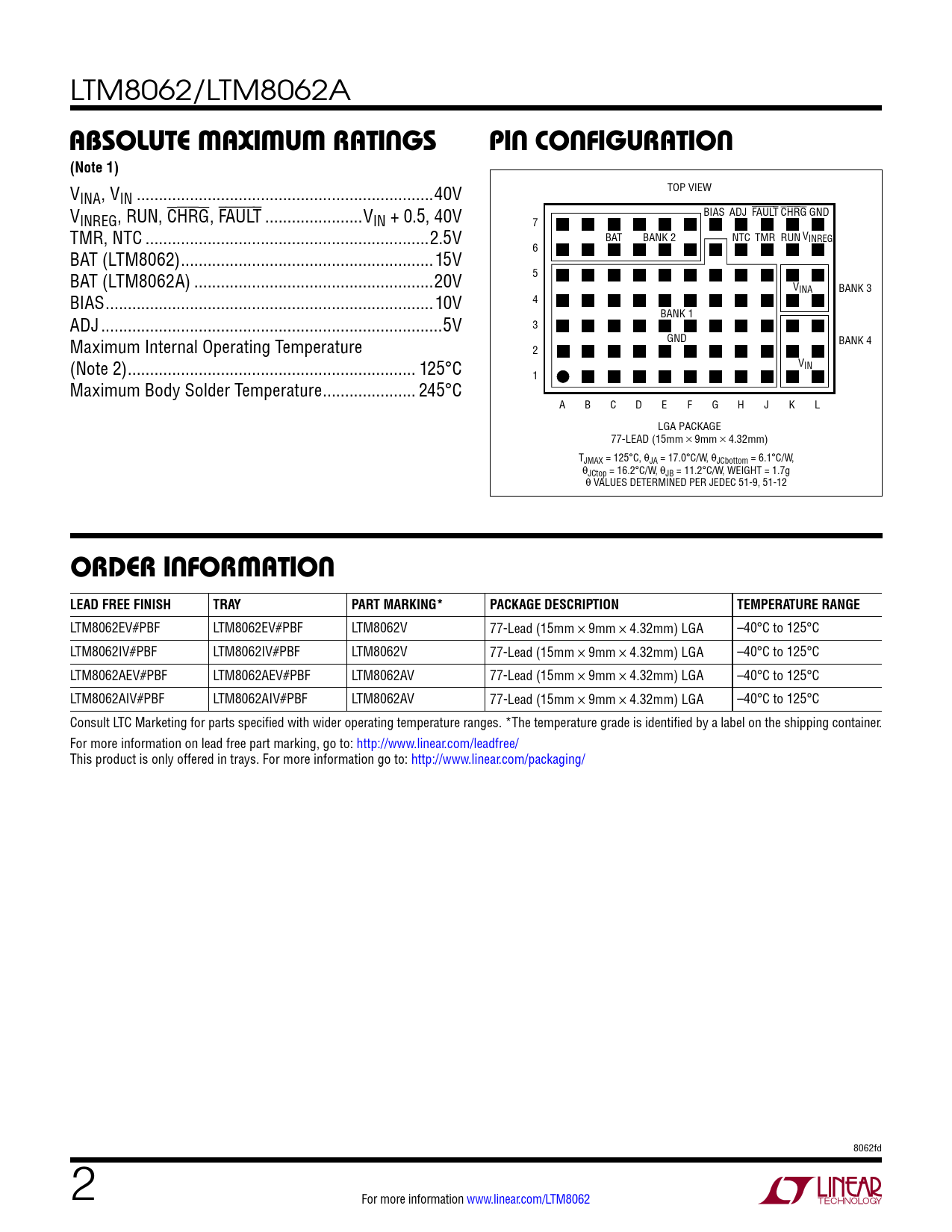

LTM8062/LTM8062A
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
V TOP VIEW INA, VIN ...40V VINREG, RUN, CHRG, FAULT ..VIN + 0.5, 40V BIAS ADJ FAULT CHRG GND 7 TMR, NTC ..2.5V BAT BANK 2 NTC TMR RUN VINREG BAT (LTM8062) ...15V 6 BAT (LTM8062A) ..20V 5 VINA BANK 3 BIAS ..10V 4 ADJ ...5V BANK 1 3 Maximum Internal Operating Temperature GND BANK 4 2 (Note 2) ... 125°C VIN 1 Maximum Body Solder Temperature ... 245°C A B C D E F G H J K L LGA PACKAGE 77-LEAD (15mm × 9mm × 4.32mm) TJMAX = 125°C, θJA = 17.0°C/W, θJCbottom = 6.1°C/W, θJCtop = 16.2°C/W, θJB = 11.2°C/W, WEIGHT = 1.7g θ VALUES DETERMINED PER JEDEC 51-9, 51-12
orDer inForMaTion LEAD FREE FINISH TRAY PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTM8062EV#PBF LTM8062EV#PBF LTM8062V 77-Lead (15mm × 9mm × 4.32mm) LGA –40°C to 125°C LTM8062IV#PBF LTM8062IV#PBF LTM8062V 77-Lead (15mm × 9mm × 4.32mm) LGA –40°C to 125°C LTM8062AEV#PBF LTM8062AEV#PBF LTM8062AV 77-Lead (15mm × 9mm × 4.32mm) LGA –40°C to 125°C LTM8062AIV#PBF LTM8062AIV#PBF LTM8062AV 77-Lead (15mm × 9mm × 4.32mm) LGA –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://www.linear.com/packaging/ 8062fd 2 For more information www.linear.com/LTM8062 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Typical Application Related Parts
