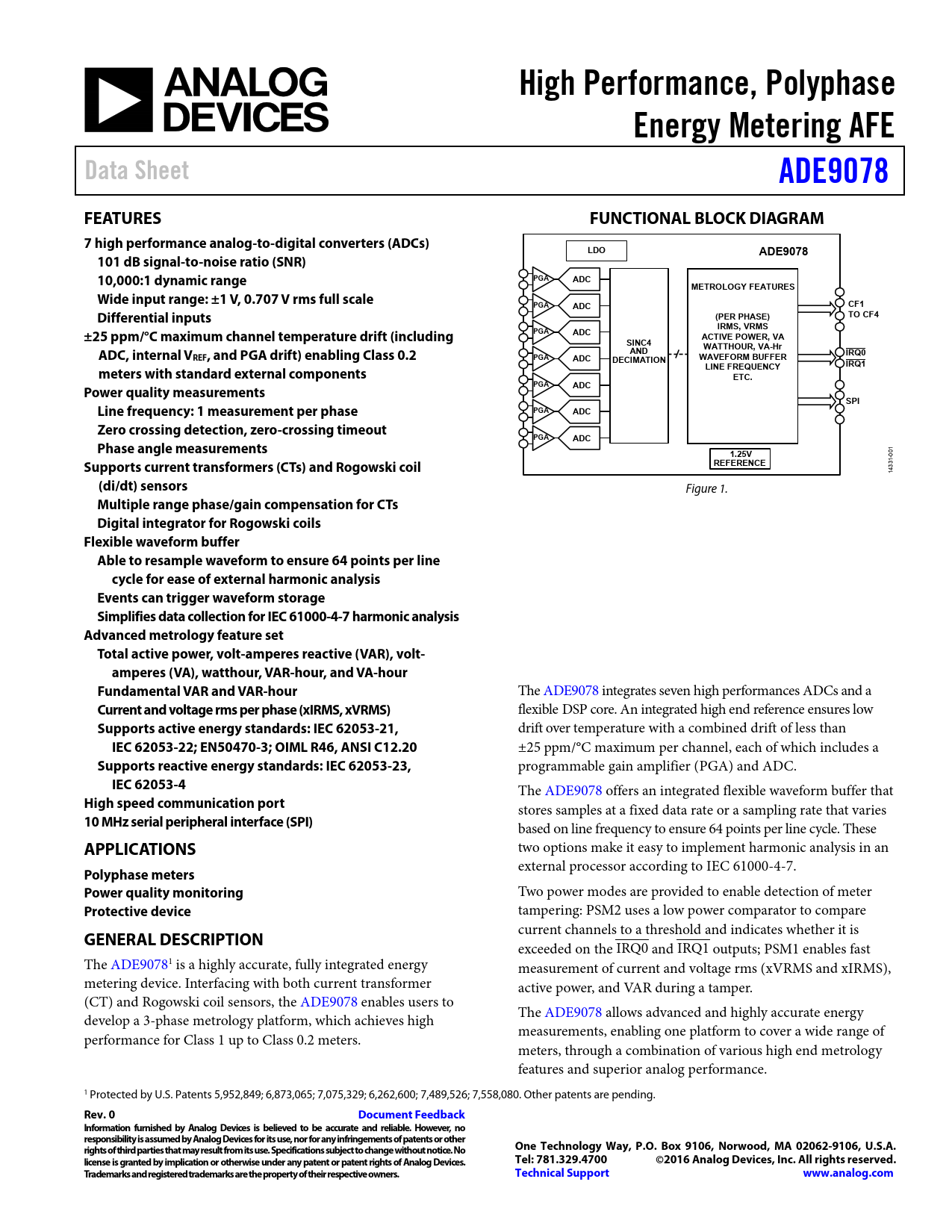

High Performance, Polyphase. Energy Metering AFE. Data Sheet. ADE9078. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet ADE9078 Analog Devices

Línea de modelo para esta hoja de datos

Versión de texto del documento

High Performance, Polyphase Energy Metering AFE Data Sheet ADE9078 FEATURES FUNCTIONAL BLOCK DIAGRAM 7 high performance analog-to-digital converters (ADCs) LDO ADE9078 101 dB signal-to-noise ratio (SNR) 10,000:1 dynamic range PGA ADC METROLOGY FEATURES Wide input range: ±1 V, 0.707 V rms full scale PGA ADC CF1 Differential inputs (PER PHASE) TO CF4 IRMS, VRMS ±25 ppm/°C maximum channel temperature drift (including PGA ADC ACTIVE POWER, VA SINC4 WATTHOUR, VA-Hr ADC, internal V AND IRQ0 REF, and PGA drift) enabling Class 0.2 PGA ADC DECIMATION WAVEFORM BUFFER IRQ1 meters with standard external components LINE FREQUENCY ETC. PGA Power quality measurements ADC SPI Line frequency: 1 measurement per phase PGA ADC Zero crossing detection, zero-crossing timeout PGA ADC Phase angle measurements 1.25V
001
Supports current transformers (CTs) and Rogowski coil REFERENCE
14331-
(di/dt) sensors
Figure 1.
Multiple range phase/gain compensation for CTs Digital integrator for Rogowski coils Flexible waveform buffer Able to resample waveform to ensure 64 points per line cycle for ease of external harmonic analysis Events can trigger waveform storage Simplifies data collection for IEC 61000-4-7 harmonic analysis Advanced metrology feature set Total active power, volt-amperes reactive (VAR), volt- amperes (VA), watthour, VAR-hour, and VA-hour Fundamental VAR and VAR-hour
The ADE9078 integrates seven high performances ADCs and a
Current and voltage rms per phase (xIRMS, xVRMS)
flexible DSP core. An integrated high end reference ensures low
Supports active energy standards: IEC 62053-21,
drift over temperature with a combined drift of less than
IEC 62053-22; EN50470-3; OIML R46, ANSI C12.20
±25 ppm/°C maximum per channel, each of which includes a
Supports reactive energy standards: IEC 62053-23,
programmable gain amplifier (PGA) and ADC.
IEC 62053-4
The ADE9078 offers an integrated flexible waveform buffer that
High speed communication port
stores samples at a fixed data rate or a sampling rate that varies
10 MHz serial peripheral interface (SPI)
based on line frequency to ensure 64 points per line cycle. These
APPLICATIONS
two options make it easy to implement harmonic analysis in an
Polyphase meters
external processor according to IEC 61000-4-7.
Power quality monitoring
Two power modes are provided to enable detection of meter
Protective device
tampering: PSM2 uses a low power comparator to compare
GENERAL DESCRIPTION
current channels to a threshold and indicates whether it is exceeded on the IRQ0 and IRQ1 outputs; PSM1 enables fast The ADE90781 is a highly accurate, fully integrated energy measurement of current and voltage rms (xVRMS and xIRMS), metering device. Interfacing with both current transformer active power, and VAR during a tamper. (CT) and Rogowski coil sensors, the ADE9078 enables users to develop a 3-phase metrology platform, which achieves high The ADE9078 al ows advanced and highly accurate energy performance for Class 1 up to Class 0.2 meters. measurements, enabling one platform to cover a wide range of meters, through a combination of various high end metrology features and superior analog performance. 1 Protected by U.S. Patents 5,952,849; 6,873,065; 7,075,329; 6,262,600; 7,489,526; 7,558,080. Other patents are pending.
