Single-Phase Energy Measurement IC. with 8052 MCU, RTC, and LCD Driver. Data Sheet. ADE7116/. ADE7166. /ADE7169/. ADE7566. /ADE7569

Datasheet ADE7116, ADE7166, ADE7169, ADE7566, ADE7569 Analog Devices, Revisión: C

Línea de modelo para esta hoja de datos

Versión de texto del documento

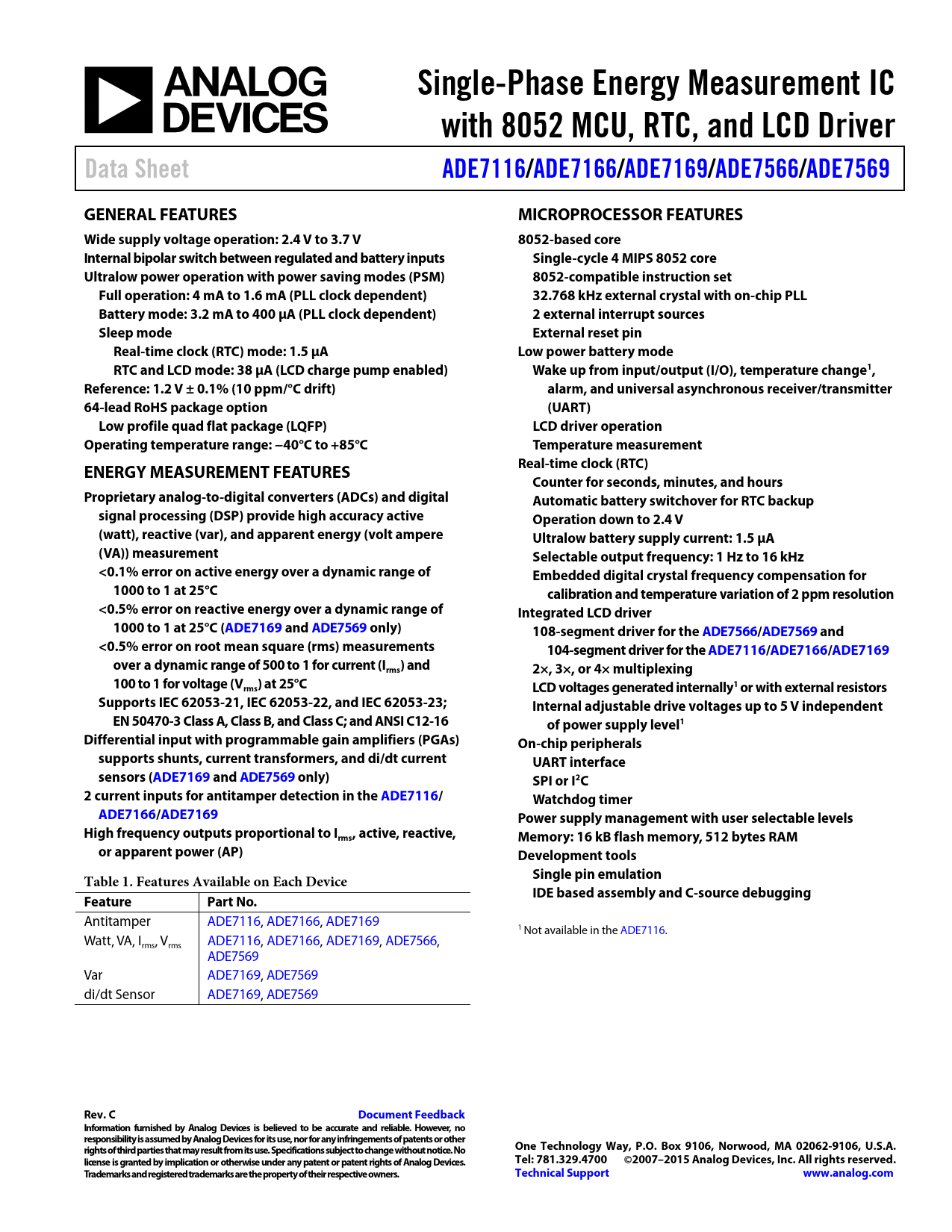

Single-Phase Energy Measurement IC with 8052 MCU, RTC, and LCD Driver Data Sheet ADE7116/ ADE7166 /ADE7169/ ADE7566 /ADE7569 GENERAL FEATURES MICROPROCESSOR FEATURES Wide supply voltage operation: 2.4 V to 3.7 V 8052-based core Internal bipolar switch between regulated and battery inputs Single-cycle 4 MIPS 8052 core Ultralow power operation with power saving modes (PSM) 8052-compatible instruction set Full operation: 4 mA to 1.6 mA (PLL clock dependent) 32.768 kHz external crystal with on-chip PLL Battery mode: 3.2 mA to 400 µA (PLL clock dependent) 2 external interrupt sources Sleep mode External reset pin Real-time clock (RTC) mode: 1.5 µA Low power battery mode RTC and LCD mode: 38 µA (LCD charge pump enabled) Wake up from input/output (I/O), temperature change1, Reference: 1.2 V ± 0.1% (10 ppm/°C drift) alarm, and universal asynchronous receiver/transmitter 64-lead RoHS package option (UART) Low profile quad flat package (LQFP) LCD driver operation Operating temperature range: −40°C to +85°C Temperature measurement ENERGY MEASUREMENT FEATURES Real-time clock (RTC) Counter for seconds, minutes, and hours Proprietary analog-to-digital converters (ADCs) and digital Automatic battery switchover for RTC backup signal processing (DSP) provide high accuracy active Operation down to 2.4 V (watt), reactive (var), and apparent energy (volt ampere Ultralow battery supply current: 1.5 µA (VA)) measurement Selectable output frequency: 1 Hz to 16 kHz <0.1% error on active energy over a dynamic range of Embedded digital crystal frequency compensation for 1000 to 1 at 25°C calibration and temperature variation of 2 ppm resolution <0.5% error on reactive energy over a dynamic range of Integrated LCD driver 1000 to 1 at 25°C (ADE7169 a nd ADE7569 only) 108-segment driver for the ADE7566 /ADE7569 and <0.5% error on root mean square (rms) measurements 104-segment driver for the ADE7116/ ADE7166 /ADE7169 over a dynamic range of 500 to 1 for current (I ) and rms 2×, 3×, or 4× multiplexing 100 to 1 for voltage (V ) at 25°C rms LCD voltages generated internally1 or with external resistors Supports IEC 62053-21, IEC 62053-22, and IEC 62053-23; Internal adjustable drive voltages up to 5 V independent EN 50470-3 Class A, Class B, and Class C; and ANSI C12-16 of power supply level1 Differential input with programmable gain amplifiers (PGAs) On-chip peripherals supports shunts, current transformers, and di/dt current UART interface sensors (ADE7169 a nd ADE7569 only) SPI or I2C 2 current inputs for antitamper detection in the ADE7116/ Watchdog timer ADE7166 /ADE7169 Power supply management with user selectable levels High frequency outputs proportional to I , active, reactive, rms Memory: 16 kB flash memory, 512 bytes RAM or apparent power (AP) Development tools Table 1. Features Available on Each Device Single pin emulation IDE based assembly and C-source debugging Feature Part No.
Antitamper ADE7116, ADE7166, ADE7169 1 Not available in the ADE7116. Watt, VA, I , V ADE7116, ADE7166, ADE7169, ADE7566, rms rms ADE7569 Var ADE7169, ADE7569 di/dt Sensor ADE7169, ADE7569
