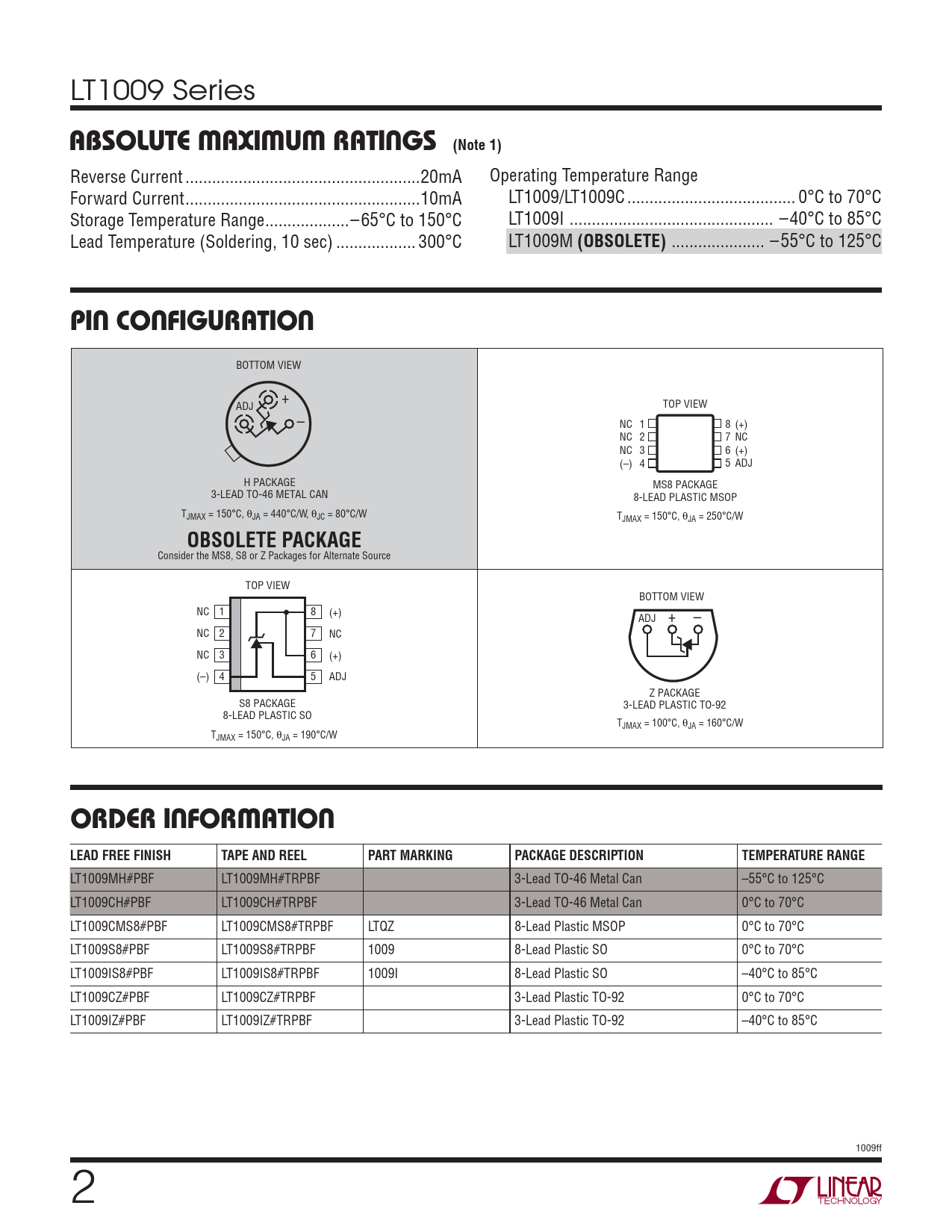

LT1009 Series
ABSOLUTE MAXIMUM RATINGS (Note 1)
Reverse Current ...20mA Operating Temperature Range Forward Current ...10mA LT1009/LT1009C .. 0°C to 70°C Storage Temperature Range ...–65°C to 150°C LT1009I .. –40°C to 85°C Lead Temperature (Soldering, 10 sec) .. 300°C LT1009M
(OBSOLETE)
... –55°C to 125°C
PIN CONFIGURATION
BOTTOM VIEW + ADJ TOP VIEW – NC 1 8 (+) NC 2 7 NC NC 3 6 (+) (–) 4 5 ADJ H PACKAGE MS8 PACKAGE 3-LEAD TO-46 METAL CAN 8-LEAD PLASTIC MSOP TJMAX = 150°C, θJA = 440°C/W, θJC = 80°C/W TJMAX = 150°C, θJA = 250°C/W
OBSOLETE PACKAGE
Consider the MS8, S8 or Z Packages for Alternate Source TOP VIEW BOTTOM VIEW NC 1 8 (+) ADJ + – NC 2 7 NC NC 3 6 (+) (–) 4 5 ADJ Z PACKAGE S8 PACKAGE 3-LEAD PLASTIC TO-92 8-LEAD PLASTIC SO TJMAX = 100°C, θJA = 160°C/W TJMAX = 150°C, θJA = 190°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1009MH#PBF LT1009MH#TRPBF 3-Lead TO-46 Metal Can –55°C to 125°C LT1009CH#PBF LT1009CH#TRPBF 3-Lead TO-46 Metal Can 0°C to 70°C LT1009CMS8#PBF LT1009CMS8#TRPBF LTQZ 8-Lead Plastic MSOP 0°C to 70°C LT1009S8#PBF LT1009S8#TRPBF 1009 8-Lead Plastic SO 0°C to 70°C LT1009IS8#PBF LT1009IS8#TRPBF 1009I 8-Lead Plastic SO –40°C to 85°C LT1009CZ#PBF LT1009CZ#TRPBF 3-Lead Plastic TO-92 0°C to 70°C LT1009IZ#PBF LT1009IZ#TRPBF 3-Lead Plastic TO-92 –40°C to 85°C 1009ff 2
