Datasheet LTC2058 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 36V, Low Noise Zero-Drift Operational Amplifier |
| Páginas / Página | 28 / 5 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply … |
| Formato / tamaño de archivo | PDF / 2.0 Mb |
| Idioma del documento | Inglés |

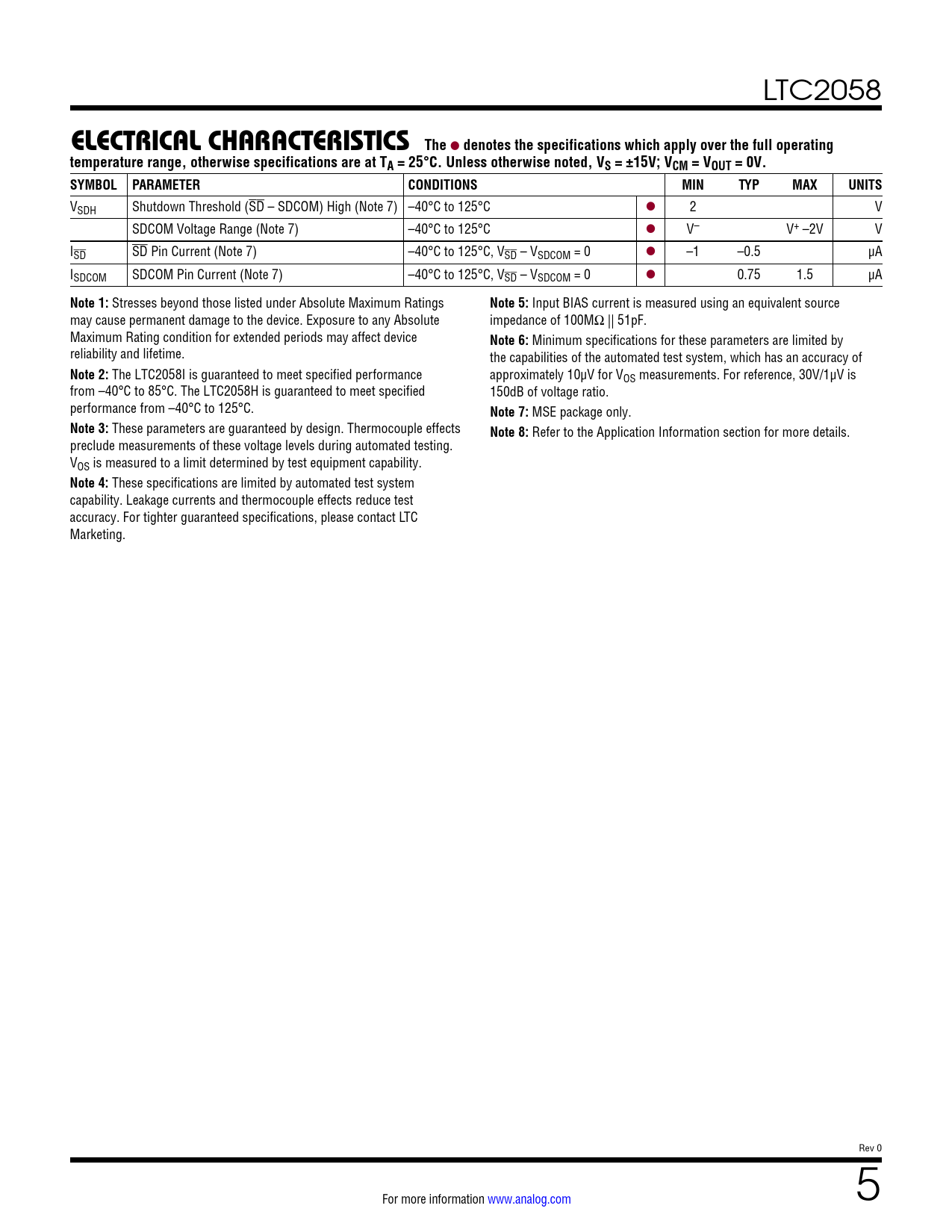

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC2058
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. Unless otherwise noted, VS = ±15V; VCM = VOUT = 0V. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VSDH Shutdown Threshold (SD – SDCOM) High (Note 7) –40°C to 125°C l 2 V SDCOM Voltage Range (Note 7) –40°C to 125°C l V– V+ –2V V ISD SD Pin Current (Note 7) –40°C to 125°C, VSD – VSDCOM = 0 l –1 –0.5 µA ISDCOM SDCOM Pin Current (Note 7) –40°C to 125°C, VSD – VSDCOM = 0 l 0.75 1.5 µA
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 5:
Input BIAS current is measured using an equivalent source may cause permanent damage to the device. Exposure to any Absolute impedance of 100MΩ || 51pF. Maximum Rating condition for extended periods may affect device
Note 6:
Minimum specifications for these parameters are limited by reliability and lifetime. the capabilities of the automated test system, which has an accuracy of
Note 2:
The LTC2058I is guaranteed to meet specified performance approximately 10µV for VOS measurements. For reference, 30V/1µV is from –40°C to 85°C. The LTC2058H is guaranteed to meet specified 150dB of voltage ratio. performance from –40°C to 125°C.
Note 7:
MSE package only.
Note 3:
These parameters are guaranteed by design. Thermocouple effects
Note 8:
Refer to the Application Information section for more details. preclude measurements of these voltage levels during automated testing. VOS is measured to a limit determined by test equipment capability.
Note 4:
These specifications are limited by automated test system capability. Leakage currents and thermocouple effects reduce test accuracy. For tighter guaranteed specifications, please contact LTC Marketing. Rev 0 For more information www.analog.com 5 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagrams Applications Information Typical Applications Package Description Typical Application Related Parts
