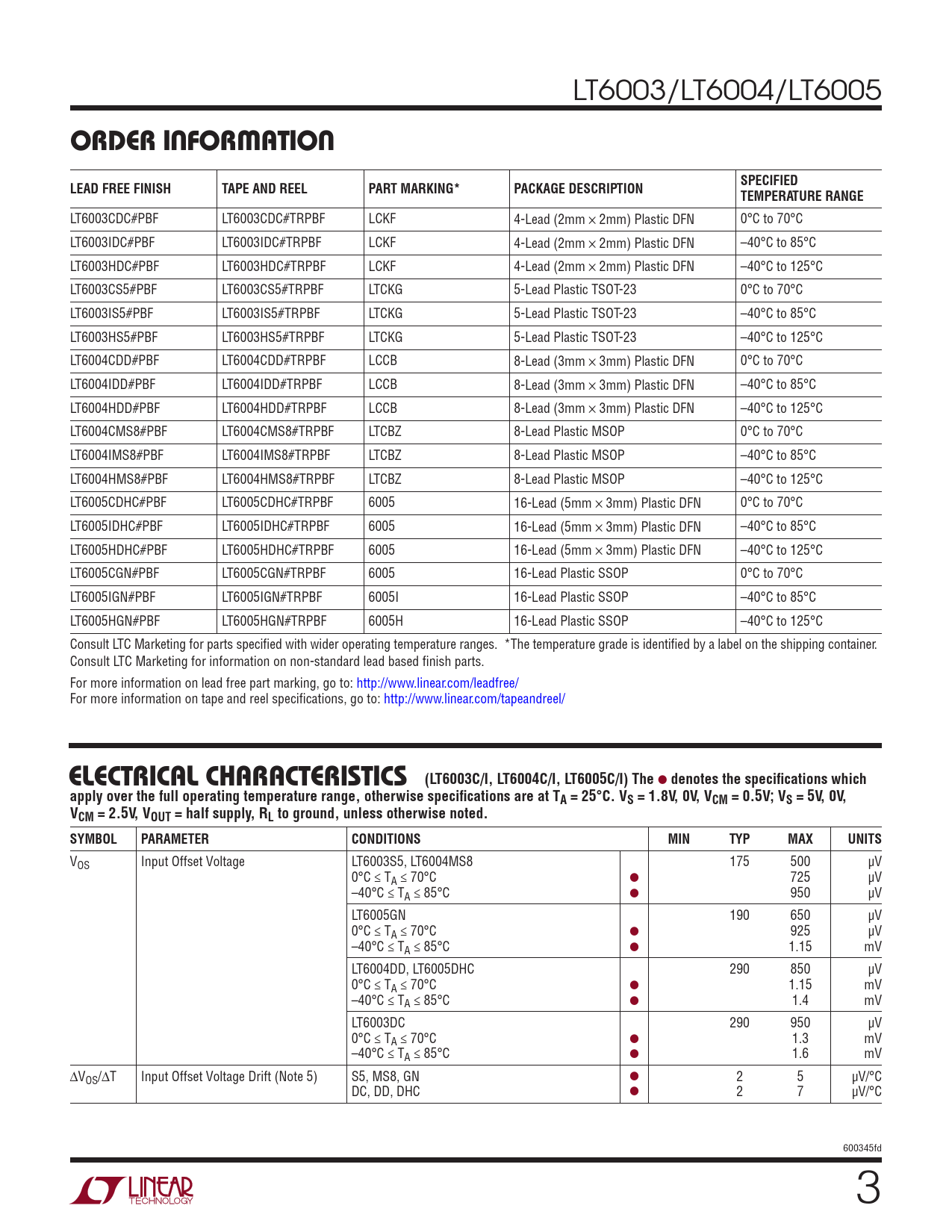

Datasheet LT6003, LT6004, LT6005 (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | 1.6V, 1µA Precision Rail-to-Rail Input and Output Op Amps |
| Páginas / Página | 20 / 3 — ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. … |
| Formato / tamaño de archivo | PDF / 1.2 Mb |
| Idioma del documento | Inglés |
ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. SPECIFIED. TEMPERATURE RANGE
Línea de modelo para esta hoja de datos
- LT6003CDC#PBF LT6003CDC#TRMPBF LT6003CDC#TRPBF LT6003CS5#PBF LT6003CS5#TRMPBF LT6003CS5#TRPBF LT6003HDC#PBF LT6003HDC#TRMPBF LT6003HDC#TRPBF LT6003HS5#PBF LT6003HS5#TRMPBF LT6003HS5#TRPBF LT6003IDC#PBF LT6003IDC#TRMPBF LT6003IDC#TRPBF LT6003IS5#PBF LT6003IS5#TRMPBF LT6003IS5#TRPBF
Versión de texto del documento
LT6003/LT6004/LT6005
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6003CDC#PBF LT6003CDC#TRPBF LCKF 4-Lead (2mm × 2mm) Plastic DFN 0°C to 70°C LT6003IDC#PBF LT6003IDC#TRPBF LCKF 4-Lead (2mm × 2mm) Plastic DFN –40°C to 85°C LT6003HDC#PBF LT6003HDC#TRPBF LCKF 4-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT6003CS5#PBF LT6003CS5#TRPBF LTCKG 5-Lead Plastic TSOT-23 0°C to 70°C LT6003IS5#PBF LT6003IS5#TRPBF LTCKG 5-Lead Plastic TSOT-23 –40°C to 85°C LT6003HS5#PBF LT6003HS5#TRPBF LTCKG 5-Lead Plastic TSOT-23 –40°C to 125°C LT6004CDD#PBF LT6004CDD#TRPBF LCCB 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LT6004IDD#PBF LT6004IDD#TRPBF LCCB 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LT6004HDD#PBF LT6004HDD#TRPBF LCCB 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT6004CMS8#PBF LT6004CMS8#TRPBF LTCBZ 8-Lead Plastic MSOP 0°C to 70°C LT6004IMS8#PBF LT6004IMS8#TRPBF LTCBZ 8-Lead Plastic MSOP –40°C to 85°C LT6004HMS8#PBF LT6004HMS8#TRPBF LTCBZ 8-Lead Plastic MSOP –40°C to 125°C LT6005CDHC#PBF LT6005CDHC#TRPBF 6005 16-Lead (5mm × 3mm) Plastic DFN 0°C to 70°C LT6005IDHC#PBF LT6005IDHC#TRPBF 6005 16-Lead (5mm × 3mm) Plastic DFN –40°C to 85°C LT6005HDHC#PBF LT6005HDHC#TRPBF 6005 16-Lead (5mm × 3mm) Plastic DFN –40°C to 125°C LT6005CGN#PBF LT6005CGN#TRPBF 6005 16-Lead Plastic SSOP 0°C to 70°C LT6005IGN#PBF LT6005IGN#TRPBF 6005I 16-Lead Plastic SSOP –40°C to 85°C LT6005HGN#PBF LT6005HGN#TRPBF 6005H 16-Lead Plastic SSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS (LT6003C/I, LT6004C/I, LT6005C/I) The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VS = 1.8V, 0V, VCM = 0.5V; VS = 5V, 0V, VCM = 2.5V, VOUT = half supply, RL to ground, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage LT6003S5, LT6004MS8 175 500 µV 0°C ≤ TA ≤ 70°C l 725 µV –40°C ≤ TA ≤ 85°C l 950 µV LT6005GN 190 650 µV 0°C ≤ TA ≤ 70°C l 925 µV –40°C ≤ TA ≤ 85°C l 1.15 mV LT6004DD, LT6005DHC 290 850 µV 0°C ≤ TA ≤ 70°C l 1.15 mV –40°C ≤ TA ≤ 85°C l 1.4 mV LT6003DC 290 950 µV 0°C ≤ TA ≤ 70°C l 1.3 mV –40°C ≤ TA ≤ 85°C l 1.6 mV ΔVOS/ΔT Input Offset Voltage Drift (Note 5) S5, MS8, GN l 2 5 µV/°C DC, DD, DHC l 2 7 µV/°C 600345fd 3
