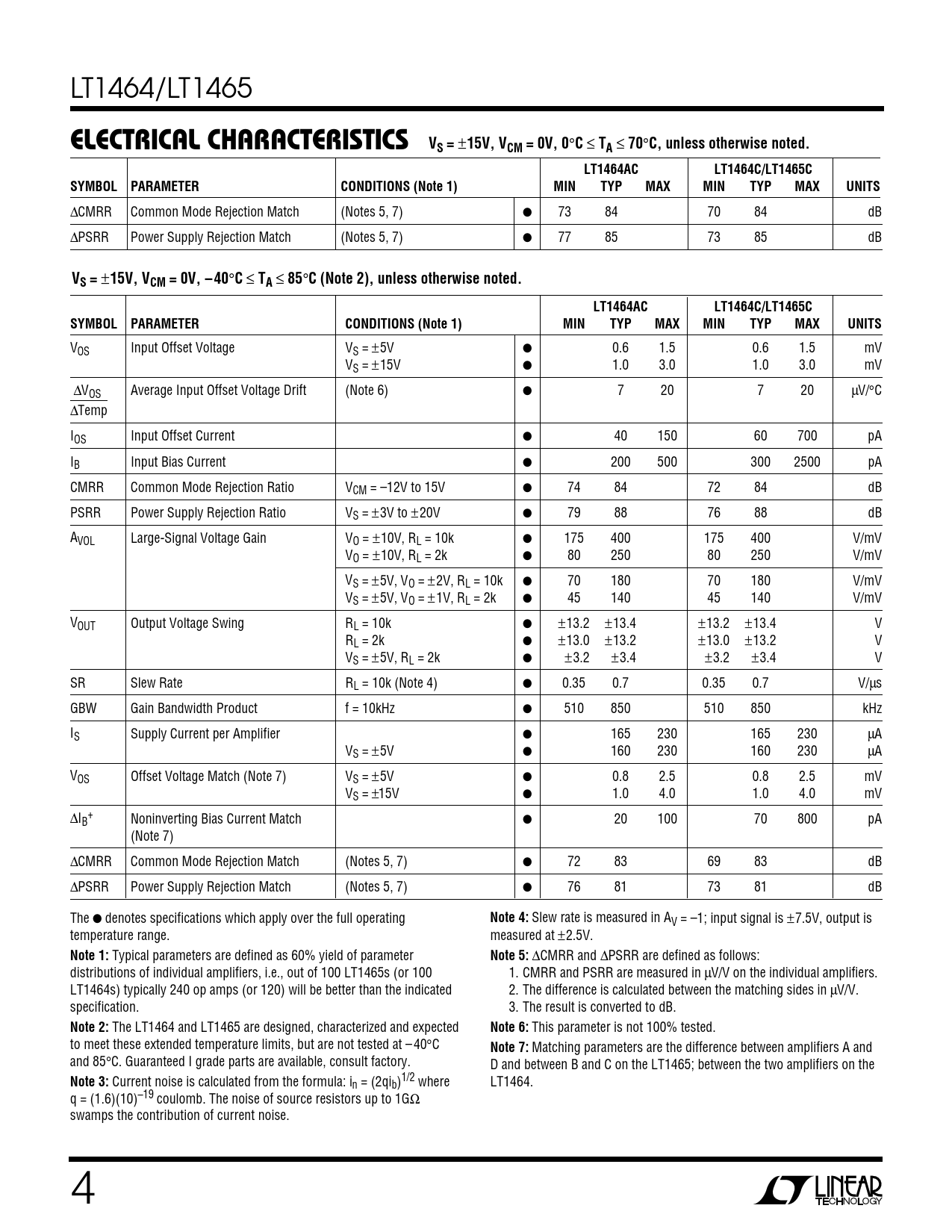

ELECTRICAL CHARACTERISTICS VS =. 15V, VCM = 0V, 0. C, unless otherwise noted. LT1464AC. LT1464C/LT1465C. SYMBOL. PARAMETER

ELECTRICAL CHARACTERISTICS VS = 15V, VCM = 0V, 0 C, unless otherwise noted LT1464AC LT1464C/LT1465C SYMBOL PARAMETER

Línea de modelo para esta hoja de datos

Versión de texto del documento

LT1464/LT1465
ELECTRICAL CHARACTERISTICS VS =
±
15V, VCM = 0V, 0
°
C

TA

70
°
C, unless otherwise noted. LT1464AC LT1464C/LT1465C SYMBOL PARAMETER CONDITIONS (Note 1) MIN TYP MAX MIN TYP MAX UNITS
∆CMRR Common Mode Rejection Match (Notes 5, 7) ● 73 84 70 84 dB ∆PSRR Power Supply Rejection Match (Notes 5, 7) ● 77 85 73 85 dB
VS =
±
15V, VCM = 0V, –40
°
C

TA

85
°
C (Note 2), unless otherwise noted. LT1464AC LT1464C/LT1465C SYMBOL PARAMETER CONDITIONS (Note 1) MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage VS = ±5V ● 0.6 1.5 0.6 1.5 mV VS = ±15V ● 1.0 3.0 1.0 3.0 mV ∆VOS Average Input Offset Voltage Drift (Note 6) ● 7 20 7 20 µV/°C ∆Temp IOS Input Offset Current ● 40 150 60 700 pA IB Input Bias Current ● 200 500 300 2500 pA CMRR Common Mode Rejection Ratio VCM = –12V to 15V ● 74 84 72 84 dB PSRR Power Supply Rejection Ratio VS = ±3V to ±20V ● 79 88 76 88 dB AVOL Large-Signal Voltage Gain VO = ±10V, RL = 10k ● 175 400 175 400 V/mV VO = ±10V, RL = 2k ● 80 250 80 250 V/mV VS = ±5V, VO = ±2V, RL = 10k ● 70 180 70 180 V/mV VS = ±5V, VO = ±1V, RL = 2k ● 45 140 45 140 V/mV VOUT Output Voltage Swing RL = 10k ● ±13.2 ±13.4 ±13.2 ±13.4 V RL = 2k ● ±13.0 ±13.2 ±13.0 ±13.2 V VS = ±5V, RL = 2k ● ±3.2 ±3.4 ±3.2 ±3.4 V SR Slew Rate RL = 10k (Note 4) ● 0.35 0.7 0.35 0.7 V/µs GBW Gain Bandwidth Product f = 10kHz ● 510 850 510 850 kHz IS Supply Current per Amplifier ● 165 230 165 230 µA VS = ±5V ● 160 230 160 230 µA VOS Offset Voltage Match (Note 7) VS = ±5V ● 0.8 2.5 0.8 2.5 mV VS = ±15V ● 1.0 4.0 1.0 4.0 mV ∆I + B Noninverting Bias Current Match ● 20 100 70 800 pA (Note 7) ∆CMRR Common Mode Rejection Match (Notes 5, 7) ● 72 83 69 83 dB ∆PSRR Power Supply Rejection Match (Notes 5, 7) ● 76 81 73 81 dB The ● denotes specifications which apply over the full operating
Note 4:
Slew rate is measured in AV = –1; input signal is ±7.5V, output is temperature range. measured at ±2.5V.
Note 1:
Typical parameters are defined as 60% yield of parameter
Note 5:
∆CMRR and ∆PSRR are defined as follows: distributions of individual amplifiers, i.e., out of 100 LT1465s (or 100 1. CMRR and PSRR are measured in µV/V on the individual amplifiers. LT1464s) typically 240 op amps (or 120) will be better than the indicated 2. The difference is calculated between the matching sides in µV/V. specification. 3. The result is converted to dB.
Note 2:
The LT1464 and LT1465 are designed, characterized and expected
Note 6:
This parameter is not 100% tested. to meet these extended temperature limits, but are not tested at – 40°C
Note 7:
Matching parameters are the difference between amplifiers A and and 85°C. Guaranteed I grade parts are available, consult factory. D and between B and C on the LT1465; between the two amplifiers on the
Note 3:
Current noise is calculated from the formula: in = (2qib)1/2 where LT1464. q = (1.6)(10)–19 coulomb. The noise of source resistors up to 1GΩ swamps the contribution of current noise. 4
