LT6600-10

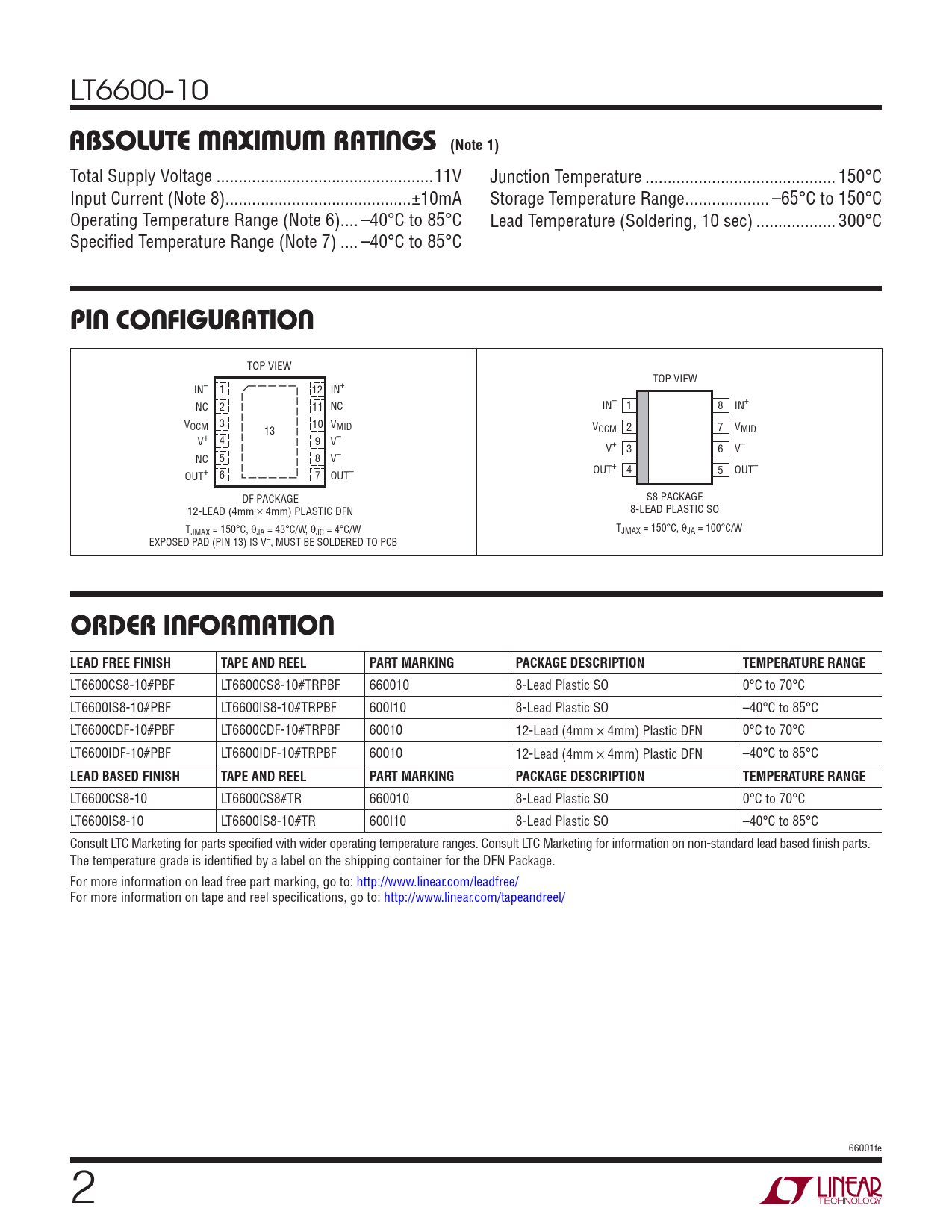

ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage ...11V Junction Temperature ... 150°C Input Current (Note 8) ..±10mA Storage Temperature Range ... –65°C to 150°C Operating Temperature Range (Note 6).. –40°C to 85°C Lead Temperature (Soldering, 10 sec) .. 300°C Specifi ed Temperature Range (Note 7) .. –40°C to 85°C
PIN CONFIGURATION
TOP VIEW TOP VIEW IN– 1 12 IN+ NC 2 11 NC IN– 1 8 IN+ V 3 10 V OCM 13 MID V 2 7 V OCM MID V+ 4 9 V– V+ 3 6 V– NC 5 8 V– OUT+ 4 5 OUT– OUT+ 6 7 OUT– DF PACKAGE S8 PACKAGE 12-LEAD (4mm s 4mm) PLASTIC DFN 8-LEAD PLASTIC SO T T JMAX = 150°C, θJA = 43°C/W, θJC = 4°C/W JMAX = 150°C, θJA = 100°C/W EXPOSED PAD (PIN 13) IS V–, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6600CS8-10#PBF LT6600CS8-10#TRPBF 660010 8-Lead Plastic SO 0°C to 70°C LT6600IS8-10#PBF LT6600IS8-10#TRPBF 600I10 8-Lead Plastic SO –40°C to 85°C LT6600CDF-10#PBF LT6600CDF-10#TRPBF 60010 12-Lead (4mm × 4mm) Plastic DFN 0°C to 70°C LT6600IDF-10#PBF LT6600IDF-10#TRPBF 60010 12-Lead (4mm × 4mm) Plastic DFN –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6600CS8-10 LT6600CS8#TR 660010 8-Lead Plastic SO 0°C to 70°C LT6600IS8-10 LT6600IS8-10#TR 600I10 8-Lead Plastic SO –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based fi nish parts. The temperature grade is identifi ed by a label on the shipping container for the DFN Package. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 66001fe 2
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage ...11V Junction Temperature ... 150°C Input Current (Note 8) ..±10mA Storage Temperature Range ... –65°C to 150°C Operating Temperature Range (Note 6).. –40°C to 85°C Lead Temperature (Soldering, 10 sec) .. 300°C Specifi ed Temperature Range (Note 7) .. –40°C to 85°C
PIN CONFIGURATION
TOP VIEW TOP VIEW IN– 1 12 IN+ NC 2 11 NC IN– 1 8 IN+ V 3 10 V OCM 13 MID V 2 7 V OCM MID V+ 4 9 V– V+ 3 6 V– NC 5 8 V– OUT+ 4 5 OUT– OUT+ 6 7 OUT– DF PACKAGE S8 PACKAGE 12-LEAD (4mm s 4mm) PLASTIC DFN 8-LEAD PLASTIC SO T T JMAX = 150°C, θJA = 43°C/W, θJC = 4°C/W JMAX = 150°C, θJA = 100°C/W EXPOSED PAD (PIN 13) IS V–, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6600CS8-10#PBF LT6600CS8-10#TRPBF 660010 8-Lead Plastic SO 0°C to 70°C LT6600IS8-10#PBF LT6600IS8-10#TRPBF 600I10 8-Lead Plastic SO –40°C to 85°C LT6600CDF-10#PBF LT6600CDF-10#TRPBF 60010 12-Lead (4mm × 4mm) Plastic DFN 0°C to 70°C LT6600IDF-10#PBF LT6600IDF-10#TRPBF 60010 12-Lead (4mm × 4mm) Plastic DFN –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6600CS8-10 LT6600CS8#TR 660010 8-Lead Plastic SO 0°C to 70°C LT6600IS8-10 LT6600IS8-10#TR 600I10 8-Lead Plastic SO –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based fi nish parts. The temperature grade is identifi ed by a label on the shipping container for the DFN Package. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 66001fe 2
