ABSOLUTE. AXI U. R TI GS (Note 1). PACKAGE/ORDER I FOR ATIO. ELECTRICAL CH. ARA TERISTICS (LT1398/LT1399). The
Línea de modelo para esta hoja de datos
Versión de texto del documento

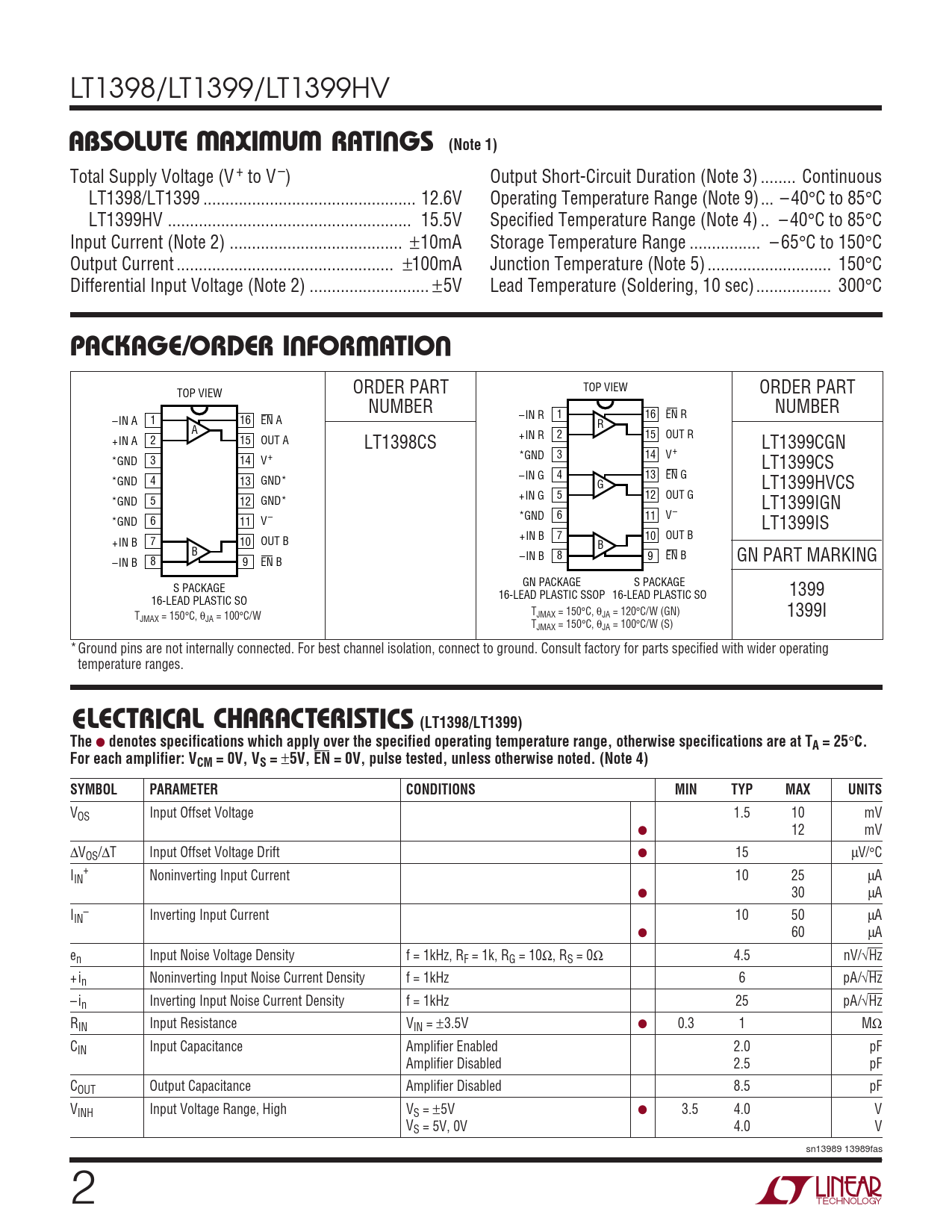

LT1398/LT1399/LT1399HV
W W W U ABSOLUTE AXI U A R TI GS (Note 1)
Total Supply Voltage (V + to V –) Output Short-Circuit Duration (Note 3) .. Continuous LT1398/LT1399 .. 12.6V Operating Temperature Range (Note 9) ... – 40°C to 85°C LT1399HV ... 15.5V Specified Temperature Range (Note 4) .. – 40°C to 85°C Input Current (Note 2) ... ±10mA Storage Temperature Range .. – 65°C to 150°C Output Current ... ±100mA Junction Temperature (Note 5) .. 150°C Differential Input Voltage (Note 2) ... ±5V Lead Temperature (Soldering, 10 sec)... 300°C
U W U PACKAGE/ORDER I FOR ATIO
ORDER PART TOP VIEW ORDER PART TOP VIEW NUMBER NUMBER –IN R 1 16 EN R –IN A 1 16 EN A R A +IN R 2 15 OUT R +IN A 2 15 OUT A LT1398CS LT1399CGN *GND 3 14 V+ *GND 3 14 V+ LT1399CS –IN G 4 13 EN G *GND 4 13 GND* G LT1399HVCS +IN G 5 12 OUT G *GND 5 12 GND* LT1399IGN *GND 6 11 V– *GND 6 11 V– LT1399IS +IN B 7 10 OUT B +IN B 7 10 OUT B B B –IN B 8 9 EN B GN PART MARKING –IN B 8 9 EN B GN PACKAGE S PACKAGE S PACKAGE 16-LEAD PLASTIC SSOP 16-LEAD PLASTIC SO 1399 16-LEAD PLASTIC SO T 1399I JMAX = 150°C, θJA = 120°C/W (GN) TJMAX = 150°C, θJA = 100°C/W TJMAX = 150°C, θJA = 100°C/W (S) *Ground pins are not internally connected. For best channel isolation, connect to ground. Consult factory for parts specified with wider operating temperature ranges.
ELECTRICAL CH C ARA TERISTICS (LT1398/LT1399) The
●
denotes specifications which apply over the specified operating temperature range, otherwise specifications are at TA = 25
°
C. For each amplifier: VCM = 0V, VS =
±
5V, EN = 0V, pulse tested, unless otherwise noted. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage 1.5 10 mV ● 12 mV ∆VOS/∆T Input Offset Voltage Drift ● 15 µV/°C I + IN Noninverting Input Current 10 25 µA ● 30 µA I – IN Inverting Input Current 10 50 µA ● 60 µA en Input Noise Voltage Density f = 1kHz, RF = 1k, RG = 10Ω, RS = 0Ω 4.5 nV/√Hz + in Noninverting Input Noise Current Density f = 1kHz 6 pA/√Hz – in Inverting Input Noise Current Density f = 1kHz 25 pA/√Hz RIN Input Resistance VIN = ±3.5V ● 0.3 1 MΩ CIN Input Capacitance Amplifier Enabled 2.0 pF Amplifier Disabled 2.5 pF COUT Output Capacitance Amplifier Disabled 8.5 pF VINH Input Voltage Range, High VS = ±5V ● 3.5 4.0 V VS = 5V, 0V 4.0 V sn13989 13989fas 2
