Datasheet LT6230, LT6230-10, LT6231, LT6232 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | 215MHz, Rail-to-Rail Output, 1.1nV/√Hz, 3.5mA Op Amp Family |
| Páginas / Página | 24 / 2 — absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion |
| Formato / tamaño de archivo | PDF / 804 Kb |
| Idioma del documento | Inglés |

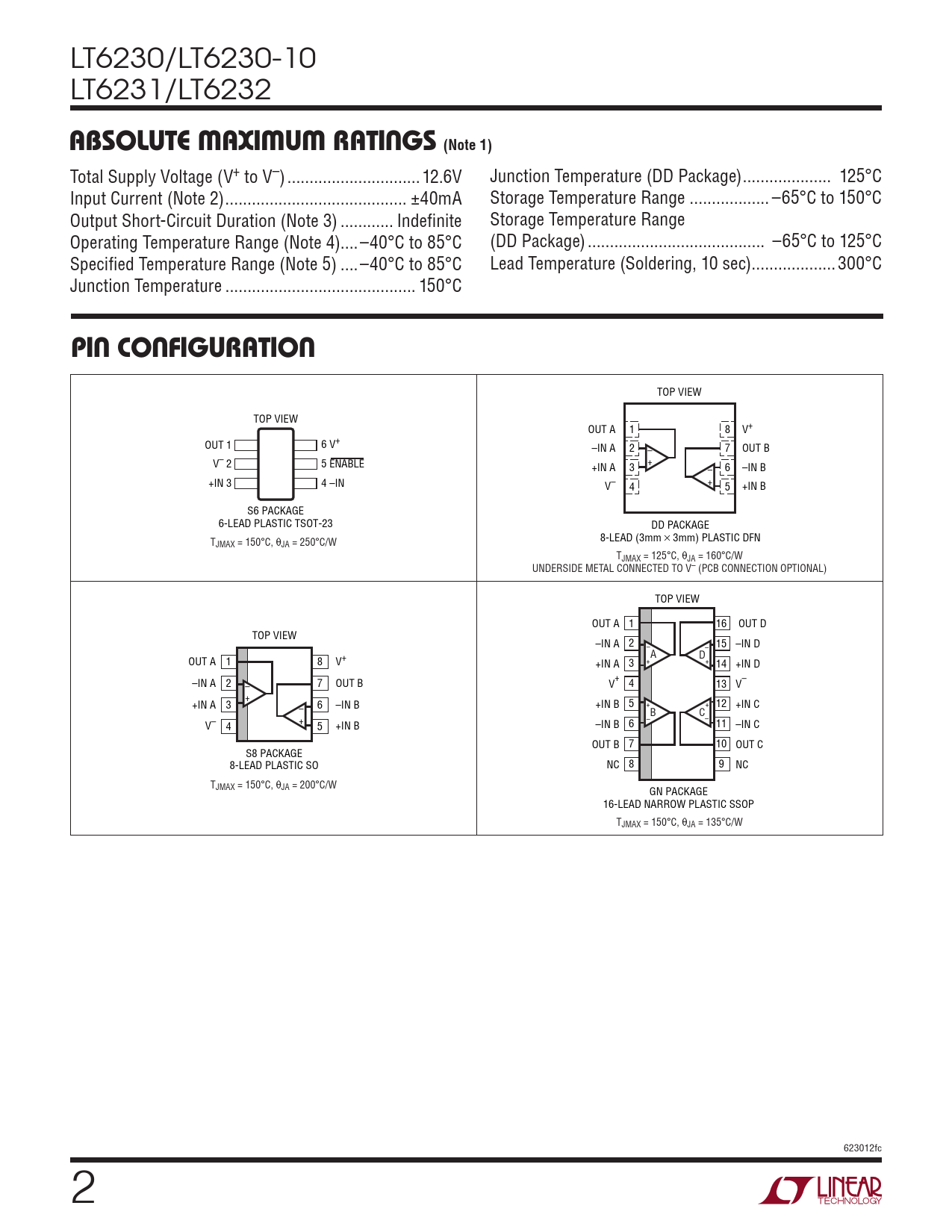

absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion
Línea de modelo para esta hoja de datos
- LT6230CS6#PBF LT6230CS6#TRMPBF LT6230CS6#TRPBF LT6230CS6-10#PBF LT6230CS6-10#TRMPBF LT6230CS6-10#TRPBF LT6230IS6#PBF LT6230IS6#TRMPBF LT6230IS6#TRPBF LT6230IS6-10#PBF LT6230IS6-10#TRMPBF LT6230IS6-10#TRPBF
Versión de texto del documento
LT6230/LT6230-10 LT6231/LT6232
absoluTe MaxiMuM raTings (Note 1)
Total Supply Voltage (V+ to V–) ..12.6V Junction Temperature (DD Package) .. 125°C Input Current (Note 2) ... ±40mA Storage Temperature Range .. –65°C to 150°C Output Short-Circuit Duration (Note 3) .. Indefinite Storage Temperature Range Operating Temperature Range (Note 4)..–40°C to 85°C (DD Package) .. –65°C to 125°C Specified Temperature Range (Note 5) ..–40°C to 85°C Lead Temperature (Soldering, 10 sec) ...300°C Junction Temperature ... 150°C
pin conFiguraTion
TOP VIEW TOP VIEW OUT A 1 8 V+ OUT 1 6 V+ –IN A 2 – 7 OUT B V– 2 5 ENABLE +IN A 3 + – 6 –IN B +IN 3 4 –IN V– 4 + 5 +IN B S6 PACKAGE 6-LEAD PLASTIC TSOT-23 DD PACKAGE T 8-LEAD (3mm × 3mm) PLASTIC DFN JMAX = 150°C, θJA = 250°C/W TJMAX = 125°C, θJA = 160°C/W UNDERSIDE METAL CONNECTED TO V– (PCB CONNECTION OPTIONAL) TOP VIEW OUT A 1 16 OUT D TOP VIEW –IN A 2 – – 15 –IN D A D OUT A 1 8 V+ +IN A 3 + + 14 +IN D –IN A 2 – 7 OUT B V+ 4 13 V– +IN A 3 + 6 –IN B +IN B 5 + – + 12 +IN C –B C – V– 4 + 5 +IN B –IN B 6 11 –IN C OUT B 7 10 OUT C S8 PACKAGE 8-LEAD PLASTIC SO NC 8 9 NC TJMAX = 150°C, θJA = 200°C/W GN PACKAGE 16-LEAD NARROW PLASTIC SSOP TJMAX = 150°C, θJA = 135°C/W 623012fc 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Applications Related Parts
