Datasheet LT6375 (Analog Devices) - 3

FabricanteAnalog Devices
Descripción±270V Common Mode Voltage Difference Amplifier
Páginas / Página32 / 3 — ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply …
Formato / tamaño de archivoPDF / 1.7 Mb
Idioma del documentoInglés

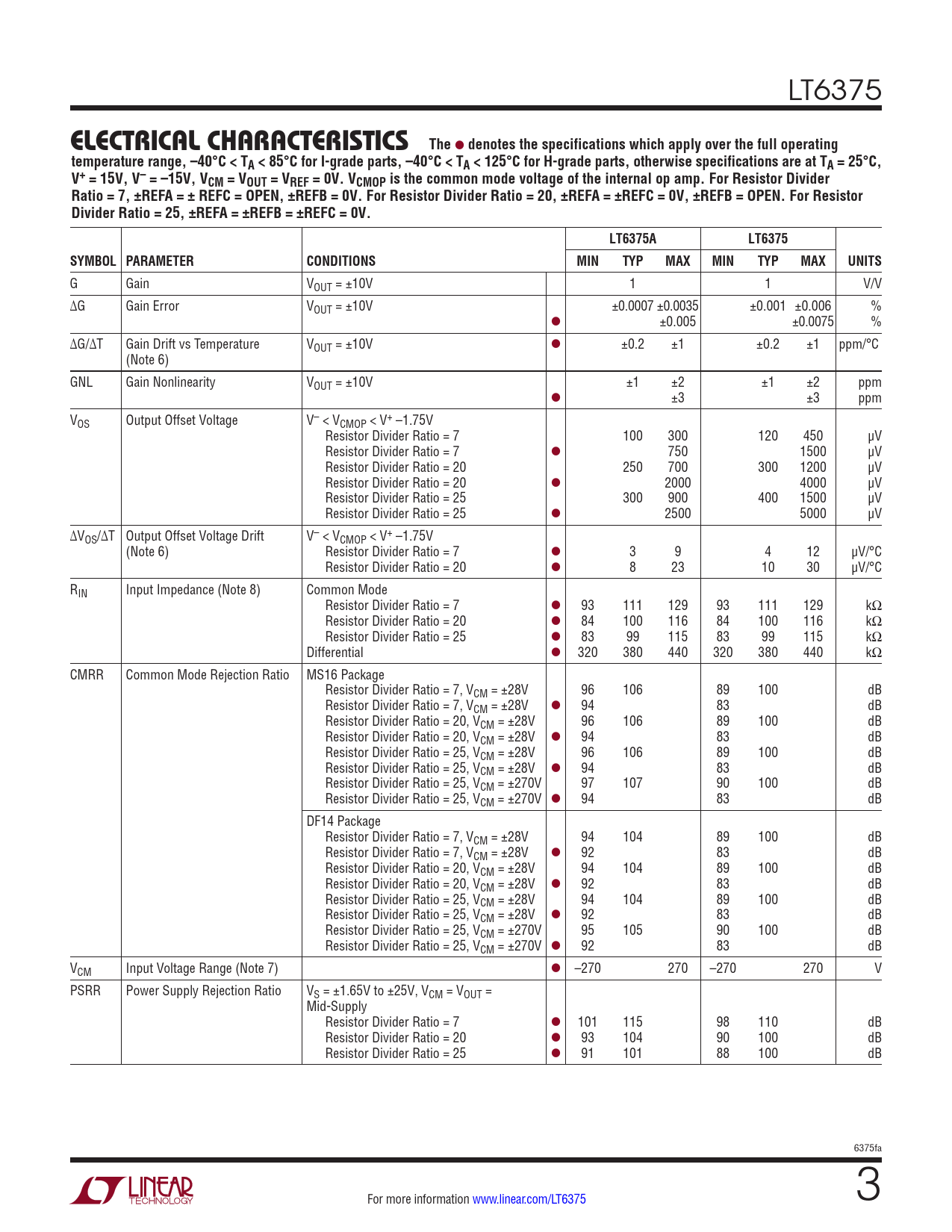

ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply over the full operating

ELECTRICAL CHARACTERISTICS The denotes the specifications which apply over the full operating

Línea de modelo para esta hoja de datos

Versión de texto del documento

LT6375
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, –40°C < TA < 85°C for I-grade parts, –40°C < TA < 125°C for H-grade parts, otherwise specifications are at TA = 25°C, V+ = 15V, V– = –15V, VCM = VOUT = VREF = 0V. VCMOP is the common mode voltage of the internal op amp. For Resistor Divider Ratio = 7, ±REFA = ± REFC = OPEN, ±REFB = 0V. For Resistor Divider Ratio = 20, ±REFA = ±REFC = 0V, ±REFB = OPEN. For Resistor Divider Ratio = 25, ±REFA = ±REFB = ±REFC = 0V. LT6375A LT6375 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
G Gain VOUT = ±10V 1 1 V/V ∆G Gain Error VOUT = ±10V ±0.0007 ±0.0035 ±0.001 ±0.006 % l ±0.005 ±0.0075 % ∆G/∆T Gain Drift vs Temperature VOUT = ±10V l ±0.2 ±1 ±0.2 ±1 ppm/°C (Note 6) GNL Gain Nonlinearity VOUT = ±10V ±1 ±2 ±1 ±2 ppm l ±3 ±3 ppm VOS Output Offset Voltage V– < VCMOP < V+ –1.75V Resistor Divider Ratio = 7 100 300 120 450 µV Resistor Divider Ratio = 7 l 750 1500 µV Resistor Divider Ratio = 20 250 700 300 1200 µV Resistor Divider Ratio = 20 l 2000 4000 µV Resistor Divider Ratio = 25 300 900 400 1500 µV Resistor Divider Ratio = 25 l 2500 5000 µV ∆VOS/∆T Output Offset Voltage Drift V– < VCMOP < V+ –1.75V (Note 6) Resistor Divider Ratio = 7 l 3 9 4 12 µV/°C Resistor Divider Ratio = 20 l 8 23 10 30 µV/°C RIN Input Impedance (Note 8) Common Mode Resistor Divider Ratio = 7 l 93 111 129 93 111 129 kΩ Resistor Divider Ratio = 20 l 84 100 116 84 100 116 kΩ Resistor Divider Ratio = 25 l 83 99 115 83 99 115 kΩ Differential l 320 380 440 320 380 440 kΩ CMRR Common Mode Rejection Ratio MS16 Package Resistor Divider Ratio = 7, VCM = ±28V 96 106 89 100 dB Resistor Divider Ratio = 7, VCM = ±28V l 94 83 dB Resistor Divider Ratio = 20, VCM = ±28V 96 106 89 100 dB Resistor Divider Ratio = 20, VCM = ±28V l 94 83 dB Resistor Divider Ratio = 25, VCM = ±28V 96 106 89 100 dB Resistor Divider Ratio = 25, VCM = ±28V l 94 83 dB Resistor Divider Ratio = 25, VCM = ±270V 97 107 90 100 dB Resistor Divider Ratio = 25, VCM = ±270V l 94 83 dB DF14 Package Resistor Divider Ratio = 7, VCM = ±28V 94 104 89 100 dB Resistor Divider Ratio = 7, VCM = ±28V l 92 83 dB Resistor Divider Ratio = 20, VCM = ±28V 94 104 89 100 dB Resistor Divider Ratio = 20, VCM = ±28V l 92 83 dB Resistor Divider Ratio = 25, VCM = ±28V 94 104 89 100 dB Resistor Divider Ratio = 25, VCM = ±28V l 92 83 dB Resistor Divider Ratio = 25, VCM = ±270V 95 105 90 100 dB Resistor Divider Ratio = 25, VCM = ±270V l 92 83 dB VCM Input Voltage Range (Note 7) l –270 270 –270 270 V PSRR Power Supply Rejection Ratio VS = ±1.65V to ±25V, VCM = VOUT = Mid-Supply Resistor Divider Ratio = 7 l 101 115 98 110 dB Resistor Divider Ratio = 20 l 93 104 90 100 dB Resistor Divider Ratio = 25 l 91 101 88 100 dB 6375fa For more information www.linear.com/LT6375 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Package Description Revision History Typical Application Related Parts
