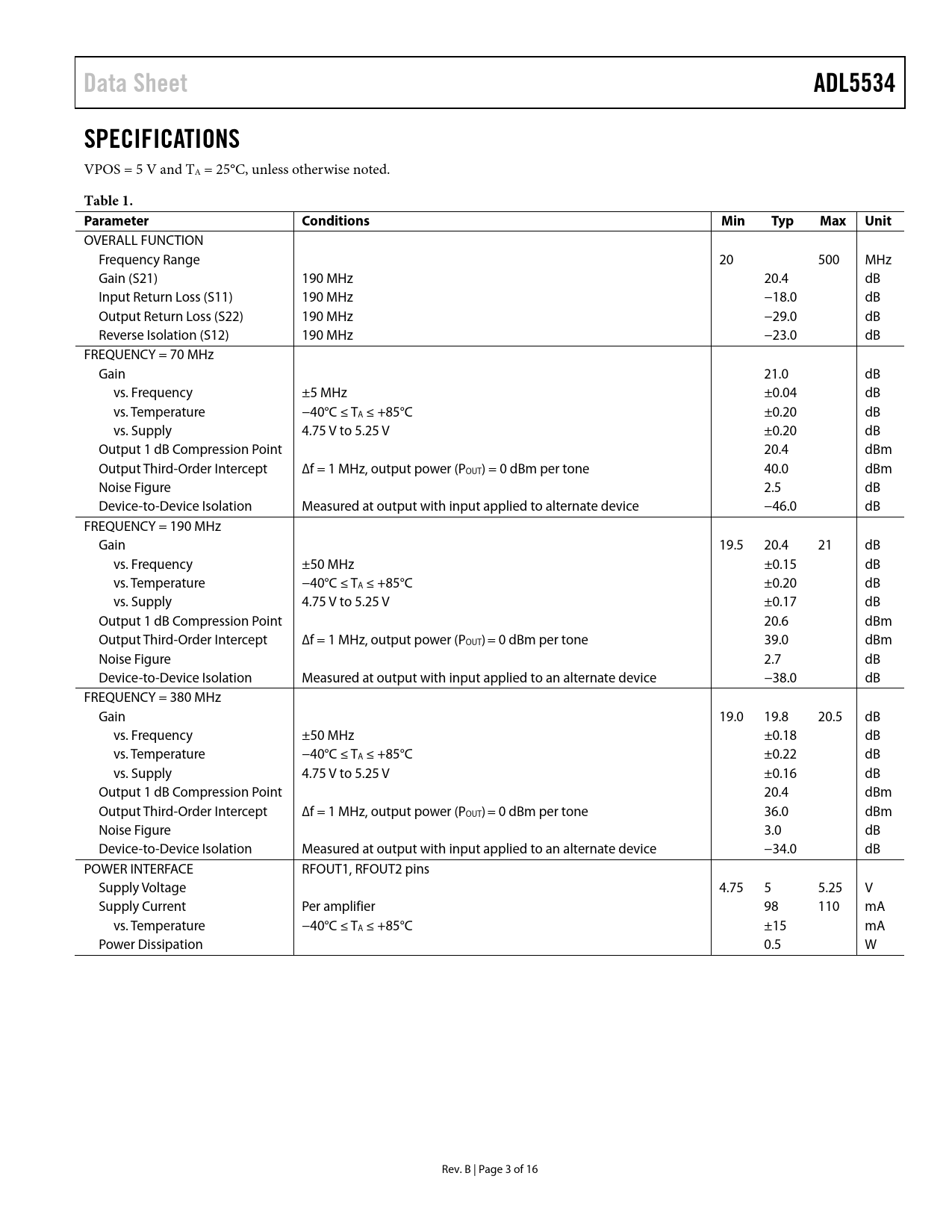

Data Sheet ADL5534 SPECIFICATIONS
VPOS = 5 V and TA = 25°C, unless otherwise noted.
Table 1. Parameter Conditions Min Typ Max Unit
OVERALL FUNCTION Frequency Range 20 500 MHz Gain (S21) 190 MHz 20.4 dB Input Return Loss (S11) 190 MHz −18.0 dB Output Return Loss (S22) 190 MHz −29.0 dB Reverse Isolation (S12) 190 MHz −23.0 dB FREQUENCY = 70 MHz Gain 21.0 dB vs. Frequency ±5 MHz ±0.04 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.20 dB vs. Supply 4.75 V to 5.25 V ±0.20 dB Output 1 dB Compression Point 20.4 dBm Output Third-Order Intercept ∆f = 1 MHz, output power (POUT) = 0 dBm per tone 40.0 dBm Noise Figure 2.5 dB Device-to-Device Isolation Measured at output with input applied to alternate device −46.0 dB FREQUENCY = 190 MHz Gain 19.5 20.4 21 dB vs. Frequency ±50 MHz ±0.15 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.20 dB vs. Supply 4.75 V to 5.25 V ±0.17 dB Output 1 dB Compression Point 20.6 dBm Output Third-Order Intercept ∆f = 1 MHz, output power (POUT) = 0 dBm per tone 39.0 dBm Noise Figure 2.7 dB Device-to-Device Isolation Measured at output with input applied to an alternate device −38.0 dB FREQUENCY = 380 MHz Gain 19.0 19.8 20.5 dB vs. Frequency ±50 MHz ±0.18 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.22 dB vs. Supply 4.75 V to 5.25 V ±0.16 dB Output 1 dB Compression Point 20.4 dBm Output Third-Order Intercept ∆f = 1 MHz, output power (POUT) = 0 dBm per tone 36.0 dBm Noise Figure 3.0 dB Device-to-Device Isolation Measured at output with input applied to an alternate device −34.0 dB POWER INTERFACE RFOUT1, RFOUT2 pins Supply Voltage 4.75 5 5.25 V Supply Current Per amplifier 98 110 mA vs. Temperature −40°C ≤ TA ≤ +85°C ±15 mA Power Dissipation 0.5 W Rev. B | Page 3 of 16 Document Outline Features Functional Block Diagram General Description Table of Contents Revision History Specifications Typical Scattering Parameters Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Basic Connections Using Baluns to Combine Both Amplifiers into a Single Amplifier ADC Driving Application Soldering Information and Recommended PCB Land Pattern Evaluation Board Outline Dimensions Ordering Guide
VPOS = 5 V and TA = 25°C, unless otherwise noted.
Table 1. Parameter Conditions Min Typ Max Unit
OVERALL FUNCTION Frequency Range 20 500 MHz Gain (S21) 190 MHz 20.4 dB Input Return Loss (S11) 190 MHz −18.0 dB Output Return Loss (S22) 190 MHz −29.0 dB Reverse Isolation (S12) 190 MHz −23.0 dB FREQUENCY = 70 MHz Gain 21.0 dB vs. Frequency ±5 MHz ±0.04 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.20 dB vs. Supply 4.75 V to 5.25 V ±0.20 dB Output 1 dB Compression Point 20.4 dBm Output Third-Order Intercept ∆f = 1 MHz, output power (POUT) = 0 dBm per tone 40.0 dBm Noise Figure 2.5 dB Device-to-Device Isolation Measured at output with input applied to alternate device −46.0 dB FREQUENCY = 190 MHz Gain 19.5 20.4 21 dB vs. Frequency ±50 MHz ±0.15 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.20 dB vs. Supply 4.75 V to 5.25 V ±0.17 dB Output 1 dB Compression Point 20.6 dBm Output Third-Order Intercept ∆f = 1 MHz, output power (POUT) = 0 dBm per tone 39.0 dBm Noise Figure 2.7 dB Device-to-Device Isolation Measured at output with input applied to an alternate device −38.0 dB FREQUENCY = 380 MHz Gain 19.0 19.8 20.5 dB vs. Frequency ±50 MHz ±0.18 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.22 dB vs. Supply 4.75 V to 5.25 V ±0.16 dB Output 1 dB Compression Point 20.4 dBm Output Third-Order Intercept ∆f = 1 MHz, output power (POUT) = 0 dBm per tone 36.0 dBm Noise Figure 3.0 dB Device-to-Device Isolation Measured at output with input applied to an alternate device −34.0 dB POWER INTERFACE RFOUT1, RFOUT2 pins Supply Voltage 4.75 5 5.25 V Supply Current Per amplifier 98 110 mA vs. Temperature −40°C ≤ TA ≤ +85°C ±15 mA Power Dissipation 0.5 W Rev. B | Page 3 of 16 Document Outline Features Functional Block Diagram General Description Table of Contents Revision History Specifications Typical Scattering Parameters Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Basic Connections Using Baluns to Combine Both Amplifiers into a Single Amplifier ADC Driving Application Soldering Information and Recommended PCB Land Pattern Evaluation Board Outline Dimensions Ordering Guide
