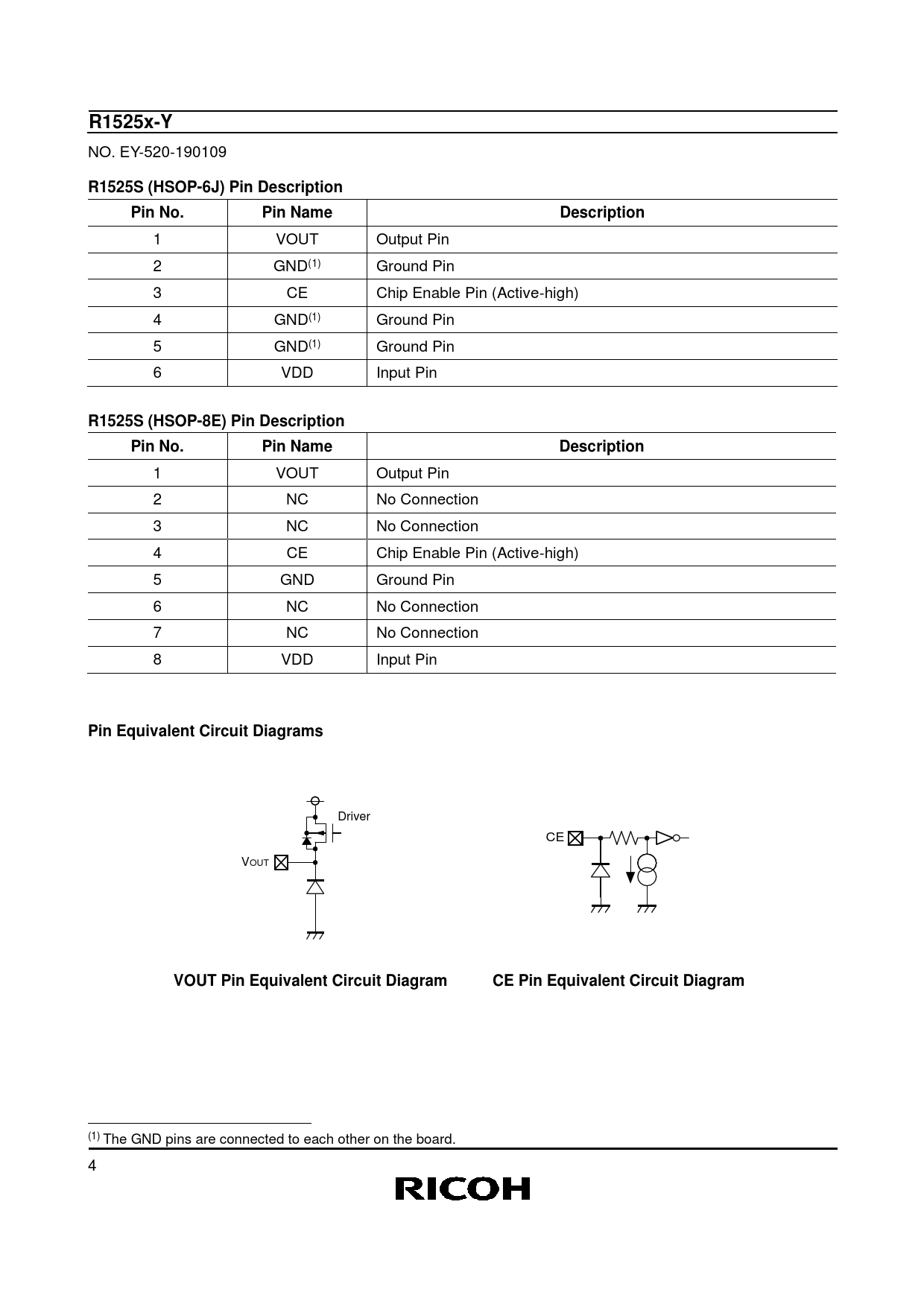

R1525x-Y
NO. EY-520-190109
R1525S (HSOP-6J) Pin Description Pin No. Pin Name Description
1 VOUT Output Pin 2 GND(1) Ground Pin 3 CE Chip Enable Pin (Active-high) 4 GND(1) Ground Pin 5 GND(1) Ground Pin 6 VDD Input Pin
R1525S (HSOP-8E) Pin Description Pin No. Pin Name Description
1 VOUT Output Pin 2 NC No Connection 3 NC No Connection 4 CE Chip Enable Pin (Active-high) 5 GND Ground Pin 6 NC No Connection 7 NC No Connection 8 VDD Input Pin
Pin Equivalent Circuit Diagrams
Driver CE VOUT
VOUT Pin Equivalent Circuit Diagram CE Pin Equivalent Circuit Diagram
(1) The GND pins are connected to each other on the board. 4
NO. EY-520-190109
R1525S (HSOP-6J) Pin Description Pin No. Pin Name Description
1 VOUT Output Pin 2 GND(1) Ground Pin 3 CE Chip Enable Pin (Active-high) 4 GND(1) Ground Pin 5 GND(1) Ground Pin 6 VDD Input Pin
R1525S (HSOP-8E) Pin Description Pin No. Pin Name Description
1 VOUT Output Pin 2 NC No Connection 3 NC No Connection 4 CE Chip Enable Pin (Active-high) 5 GND Ground Pin 6 NC No Connection 7 NC No Connection 8 VDD Input Pin
Pin Equivalent Circuit Diagrams
Driver CE VOUT
VOUT Pin Equivalent Circuit Diagram CE Pin Equivalent Circuit Diagram
(1) The GND pins are connected to each other on the board. 4
