DC Electrical Characteristics (continued). PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS. DC CHARACTERISTICS / C/Q, DO/DI DRIVER
Línea de modelo para esta hoja de datos
Versión de texto del documento

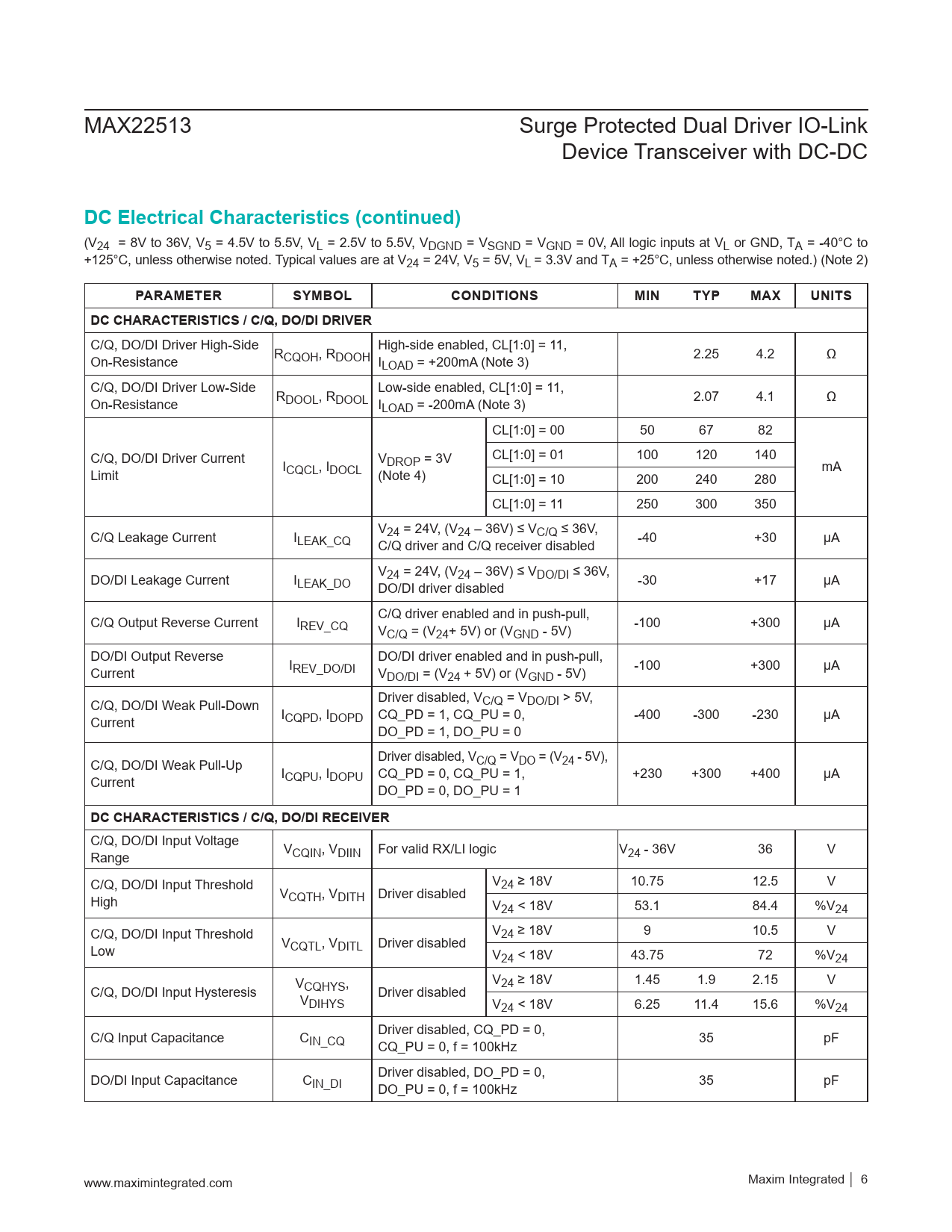

MAX22513 Surge Protected Dual Driver IO-Link Device Transceiver with DC-DC
DC Electrical Characteristics (continued)
(V24 = 8V to 36V, V5 = 4.5V to 5.5V, VL = 2.5V to 5.5V, VDGND = VSGND = VGND = 0V, All logic inputs at VL or GND, TA = -40°C to +125°C, unless otherwise noted. Typical values are at V24 = 24V, V5 = 5V, VL = 3.3V and TA = +25°C, unless otherwise noted.) (Note 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS DC CHARACTERISTICS / C/Q, DO/DI DRIVER
C/Q, DO/DI Driver High-Side High-side enabled, CL[1:0] = 11, On-Resistance RCQOH, RDOOH ILOAD = +200mA (Note 3) 2.25 4.2 Ω C/Q, DO/DI Driver Low-Side Low-side enabled, CL[1:0] = 11, On-Resistance RDOOL, RDOOL ILOAD = -200mA (Note 3) 2.07 4.1 Ω CL[1:0] = 00 50 67 82 C/Q, DO/DI Driver Current VDROP = 3V CL[1:0] = 01 100 120 140 Limit ICQCL, IDOCL (Note 4) mA CL[1:0] = 10 200 240 280 CL[1:0] = 11 250 300 350 C/Q Leakage Current I V24 = 24V, (V24 – 36V) ≤ VC/Q ≤ 36V, LEAK_CQ C/Q driver and C/Q receiver disabled -40 +30 µA DO/DI Leakage Current I V24 = 24V, (V24 – 36V) ≤ VDO/DI ≤ 36V, LEAK_DO DO/DI driver disabled -30 +17 µA C/Q Output Reverse Current I C/Q driver enabled and in push-pull, REV_CQ VC/Q = (V24+ 5V) or (VGND - 5V) -100 +300 µA DO/DI Output Reverse DO/DI driver enabled and in push-pull, Current IREV_DO/DI VDO/DI = (V24 + 5V) or (VGND - 5V) -100 +300 µA C/Q, DO/DI Weak Pull-Down Driver disabled, VC/Q = VDO/DI > 5V, Current ICQPD, IDOPD CQ_PD = 1, CQ_PU = 0, -400 -300 -230 µA DO_PD = 1, DO_PU = 0 C/Q, DO/DI Weak Pull-Up Driver disabled, VC/Q = VDO = (V24 - 5V), Current ICQPU, IDOPU CQ_PD = 0, CQ_PU = 1, +230 +300 +400 µA DO_PD = 0, DO_PU = 1
DC CHARACTERISTICS / C/Q, DO/DI RECEIVER
C/Q, DO/DI Input Voltage Range VCQIN, VDIIN For valid RX/LI logic V24 - 36V 36 V C/Q, DO/DI Input Threshold V24 ≥ 18V 10.75 12.5 V High VCQTH, VDITH Driver disabled V24 < 18V 53.1 84.4 %V24 C/Q, DO/DI Input Threshold V24 ≥ 18V 9 10.5 V Low VCQTL, VDITL Driver disabled V24 < 18V 43.75 72 %V24 V C/Q, DO/DI Input Hysteresis VCQHYS, 24 ≥ 18V 1.45 1.9 2.15 V V Driver disabled DIHYS V24 < 18V 6.25 11.4 15.6 %V24 C/Q Input Capacitance C Driver disabled, CQ_PD = 0, IN_CQ CQ_PU = 0, f = 100kHz 35 pF DO/DI Input Capacitance C Driver disabled, DO_PD = 0, IN_DI DO_PU = 0, f = 100kHz 35 pF www.maximintegrated.com Maxim Integrated │
6
DC Electrical Characteristics (continued)
(V24 = 8V to 36V, V5 = 4.5V to 5.5V, VL = 2.5V to 5.5V, VDGND = VSGND = VGND = 0V, All logic inputs at VL or GND, TA = -40°C to +125°C, unless otherwise noted. Typical values are at V24 = 24V, V5 = 5V, VL = 3.3V and TA = +25°C, unless otherwise noted.) (Note 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS DC CHARACTERISTICS / C/Q, DO/DI DRIVER
C/Q, DO/DI Driver High-Side High-side enabled, CL[1:0] = 11, On-Resistance RCQOH, RDOOH ILOAD = +200mA (Note 3) 2.25 4.2 Ω C/Q, DO/DI Driver Low-Side Low-side enabled, CL[1:0] = 11, On-Resistance RDOOL, RDOOL ILOAD = -200mA (Note 3) 2.07 4.1 Ω CL[1:0] = 00 50 67 82 C/Q, DO/DI Driver Current VDROP = 3V CL[1:0] = 01 100 120 140 Limit ICQCL, IDOCL (Note 4) mA CL[1:0] = 10 200 240 280 CL[1:0] = 11 250 300 350 C/Q Leakage Current I V24 = 24V, (V24 – 36V) ≤ VC/Q ≤ 36V, LEAK_CQ C/Q driver and C/Q receiver disabled -40 +30 µA DO/DI Leakage Current I V24 = 24V, (V24 – 36V) ≤ VDO/DI ≤ 36V, LEAK_DO DO/DI driver disabled -30 +17 µA C/Q Output Reverse Current I C/Q driver enabled and in push-pull, REV_CQ VC/Q = (V24+ 5V) or (VGND - 5V) -100 +300 µA DO/DI Output Reverse DO/DI driver enabled and in push-pull, Current IREV_DO/DI VDO/DI = (V24 + 5V) or (VGND - 5V) -100 +300 µA C/Q, DO/DI Weak Pull-Down Driver disabled, VC/Q = VDO/DI > 5V, Current ICQPD, IDOPD CQ_PD = 1, CQ_PU = 0, -400 -300 -230 µA DO_PD = 1, DO_PU = 0 C/Q, DO/DI Weak Pull-Up Driver disabled, VC/Q = VDO = (V24 - 5V), Current ICQPU, IDOPU CQ_PD = 0, CQ_PU = 1, +230 +300 +400 µA DO_PD = 0, DO_PU = 1
DC CHARACTERISTICS / C/Q, DO/DI RECEIVER
C/Q, DO/DI Input Voltage Range VCQIN, VDIIN For valid RX/LI logic V24 - 36V 36 V C/Q, DO/DI Input Threshold V24 ≥ 18V 10.75 12.5 V High VCQTH, VDITH Driver disabled V24 < 18V 53.1 84.4 %V24 C/Q, DO/DI Input Threshold V24 ≥ 18V 9 10.5 V Low VCQTL, VDITL Driver disabled V24 < 18V 43.75 72 %V24 V C/Q, DO/DI Input Hysteresis VCQHYS, 24 ≥ 18V 1.45 1.9 2.15 V V Driver disabled DIHYS V24 < 18V 6.25 11.4 15.6 %V24 C/Q Input Capacitance C Driver disabled, CQ_PD = 0, IN_CQ CQ_PU = 0, f = 100kHz 35 pF DO/DI Input Capacitance C Driver disabled, DO_PD = 0, IN_DI DO_PU = 0, f = 100kHz 35 pF www.maximintegrated.com Maxim Integrated │
6
