Nexperia BZX84 series Voltage regulator diodes
aaa-006665 aaa-006666 10-1 10-1 IR 2V4 3V6 3V9 4V3 4V7 5V1 IR (A) (A) 10-2 2V7 10-2 7V5 10 12 15 18 22 3V0 8V2 10-3 3V3 10-3 9V1 11 13 16 20 24 10-4 10-4 10-5 10-5 10-6 5V6 6V2 6V8 10-6 10-7 10-8 10-7 10-9 10-8 0 2 4 6 8 0 5 10 15 20 25 VR (V) VR (V) BZX84-A/B/C2V4 to BZX84-A/B/C6V8 BZX84-A/B/C7V5 to BZX84-A/B/C24 Tamb = 25 C Tamb = 25 C

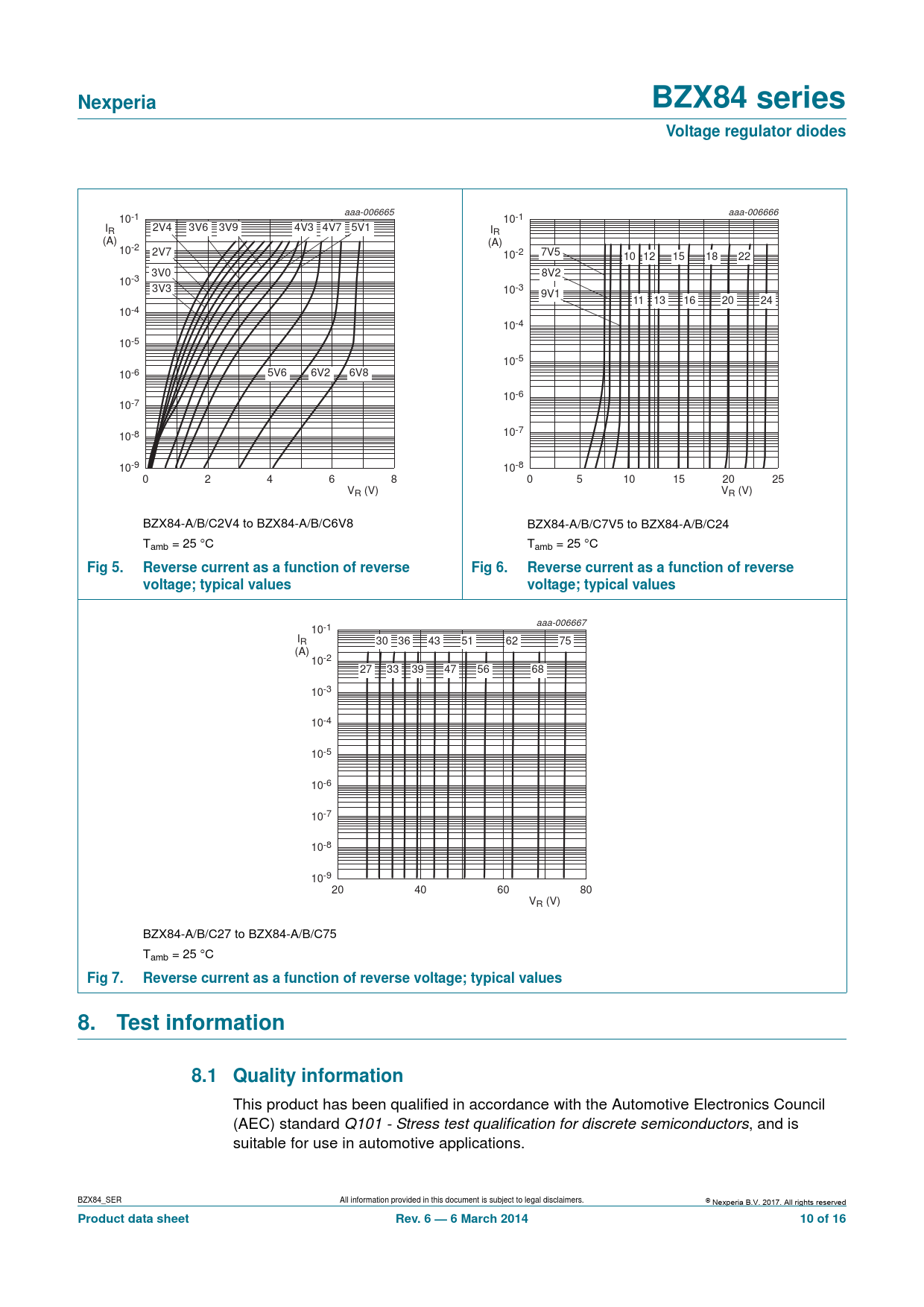

Fig 5. Reverse current as a function of reverse Fig 6. Reverse current as a function of reverse voltage; typical values voltage; typical values
aaa-006667 10-1 IR 30 36 43 51 62 75 (A) 10-2 27 33 39 47 56 68 10-3 10-4 10-5 10-6 10-7 10-8 10-9 20 40 60 80 VR (V) BZX84-A/B/C27 to BZX84-A/B/C75 Tamb = 25 C
Fig 7. Reverse current as a function of reverse voltage; typical values 8. Test information 8.1 Quality information
This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in automotive applications. BZX84_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 6 — 6 March 2014 10 of 16
