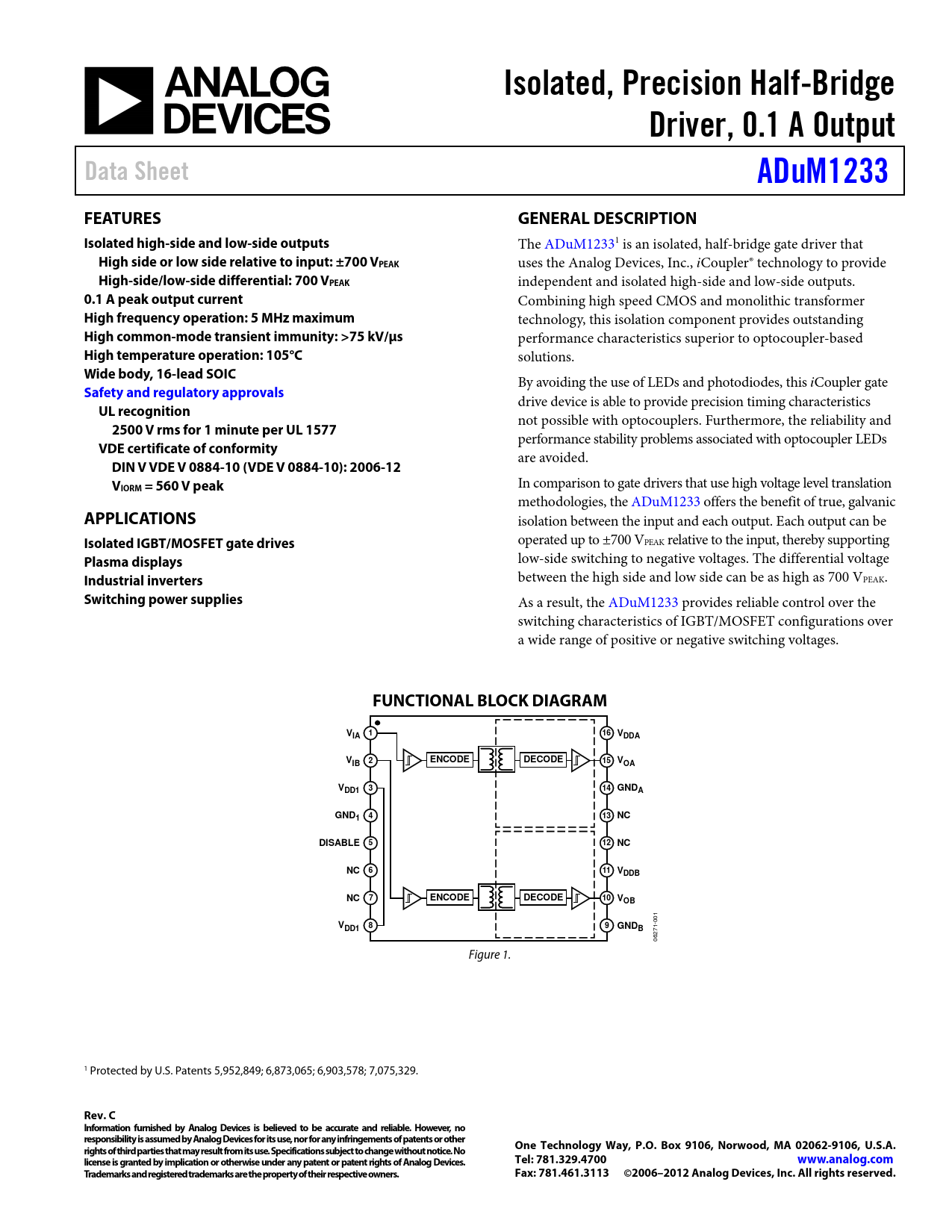

Isolated, Precision Half-Bridge Driver, 0.1 A Output Data Sheet ADuM1233 FEATURES GENERAL DESCRIPTION Isolated high-side and low-side outputs
The ADuM12331 is an isolated, half-bridge gate driver that
High side or low side relative to input: ±700 VPEAK
uses the Analog Devices, Inc., iCoupler® technology to provide
High-side/low-side differential: 700 VPEAK
independent and isolated high-side and low-side outputs.
0.1 A peak output current
Combining high speed CMOS and monolithic transformer
High frequency operation: 5 MHz maximum
technology, this isolation component provides outstanding
High common-mode transient immunity: >75 kV/µs
performance characteristics superior to optocoupler-based
High temperature operation: 105°C
solutions.
Wide body, 16-lead SOIC
By avoiding the use of LEDs and photodiodes, this iCoupler gate
Safety and regulatory approvals
drive device is able to provide precision timing characteristics
UL recognition
not possible with optocouplers. Furthermore, the reliability and
2500 V rms for 1 minute per UL 1577
performance stability problems associated with optocoupler LEDs
VDE certificate of conformity
are avoided.
DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12 V
In comparison to gate drivers that use high voltage level translation
IORM = 560 V peak
methodologies, the ADuM1233 offers the benefit of true, galvanic
APPLICATIONS
isolation between the input and each output. Each output can be
Isolated IGBT/MOSFET gate drives
operated up to ±700 VPEAK relative to the input, thereby supporting
Plasma displays
low-side switching to negative voltages. The differential voltage
Industrial inverters
between the high side and low side can be as high as 700 VPEAK.
Switching power supplies
As a result, the ADuM1233 provides reliable control over the switching characteristics of IGBT/MOSFET configurations over a wide range of positive or negative switching voltages.
FUNCTIONAL BLOCK DIAGRAM VIA 1 16 VDDA V 2 ENCODE DECODE IB 15 VOA VDD1 3 14 GNDA GND1 4 13 NC DISABLE 5 12 NC NC 6 11 VDDB NC 7 ENCODE DECODE 10 VOB
001
VDD1 8 9 GNDB
06271- Figure 1. 1 Protected by U.S. Patents 5,952,849; 6,873,065; 6,903,578; 7,075,329.
