DescripciónPhotoconductive Cell
Páginas / Página1 / 1 — Photoconductive Cell. VT900 Series. PACKAGE DIMENSIONS inch (mm). …
Formato / tamaño de archivoPDF / 29 Kb
Idioma del documentoinglés

Photoconductive Cell. VT900 Series. PACKAGE DIMENSIONS inch (mm). ABSOLUTE MAXIMUM RATINGS

Datasheet VT900 PerkinElmer

Línea de modelo para esta hoja de datos

Versión de texto del documento

filename Optoisolators.pdf

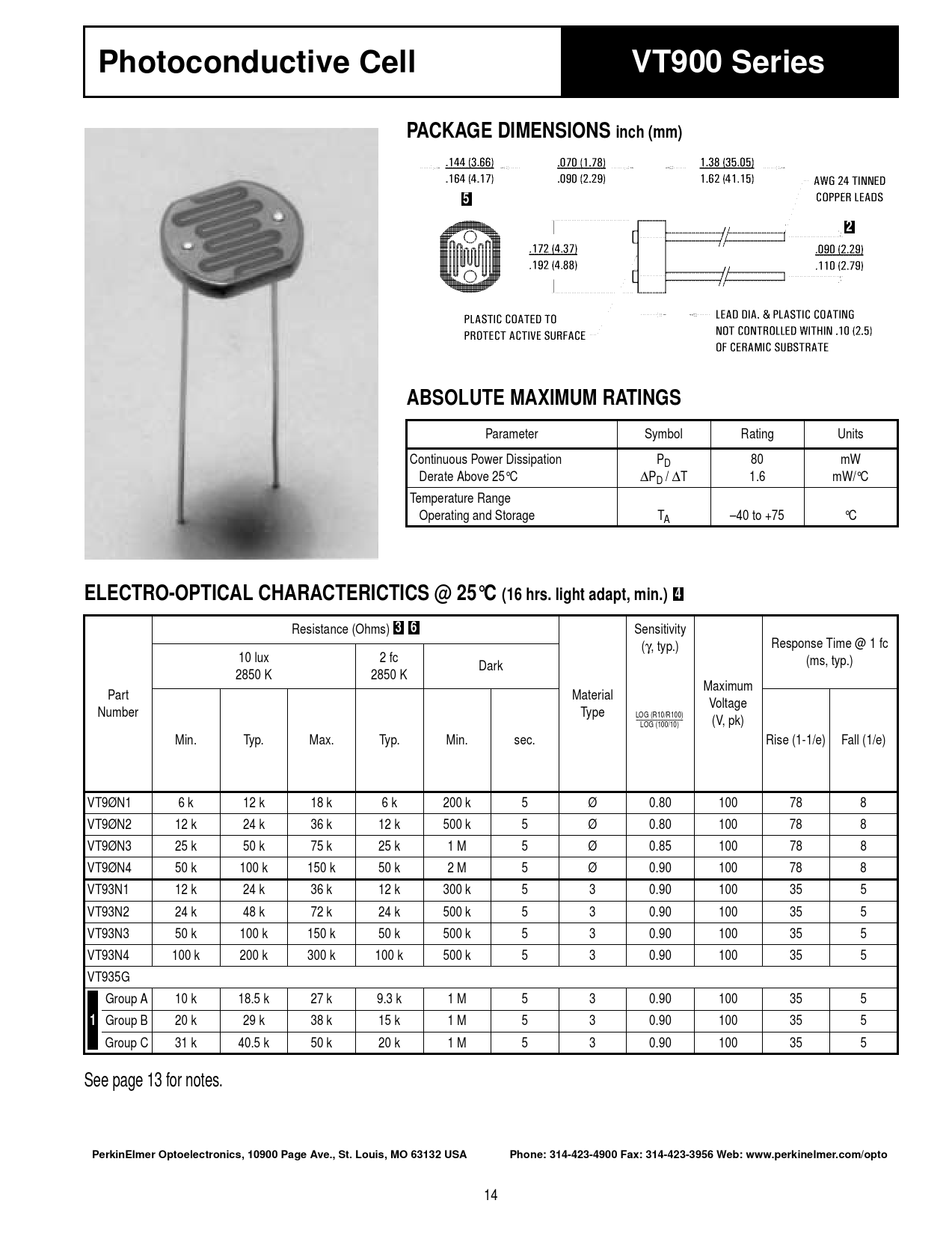

Photoconductive Cell VT900 Series PACKAGE DIMENSIONS inch (mm) 5 2 ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Rating Units Continuous Power Dissipation PD 80 mW Derate Above 25°C ∆PD / ∆T 1.6 mW/°C Temperature Range Operating and Storage TA –40 to +75 °C
ELECTRO-OPTICAL CHARACTERICTICS @ 25°C (16 hrs. light adapt, min.) 4
Resistance (Ohms)
3 6
Sensitivity (γ, typ.) Response Time @ 1 fc 10 lux 2 fc (ms, typ.) Dark 2850 K 2850 K Maximum Part Material Voltage Number Type LOG (R10/R100) -------------------- LOG (100/10) (V, pk) Min. Typ. Max. Typ. Min. sec. Rise (1-1/e) Fall (1/e) VT9ØN1 6 k 12 k 18 k 6 k 200 k 5 Ø 0.80 100 78 8 VT9ØN2 12 k 24 k 36 k 12 k 500 k 5 Ø 0.80 100 78 8 VT9ØN3 25 k 50 k 75 k 25 k 1 M 5 Ø 0.85 100 78 8 VT9ØN4 50 k 100 k 150 k 50 k 2 M 5 Ø 0.90 100 78 8 VT93N1 12 k 24 k 36 k 12 k 300 k 5 3 0.90 100 35 5 VT93N2 24 k 48 k 72 k 24 k 500 k 5 3 0.90 100 35 5 VT93N3 50 k 100 k 150 k 50 k 500 k 5 3 0.90 100 35 5 VT93N4 100 k 200 k 300 k 100 k 500 k 5 3 0.90 100 35 5 VT935G Group A 10 k 18.5 k 27 k 9.3 k 1 M 5 3 0.90 100 35 5
1
Group B 20 k 29 k 38 k 15 k 1 M 5 3 0.90 100 35 5 Group C 31 k 40.5 k 50 k 20 k 1 M 5 3 0.90 100 35 5 See page 13 for notes.
