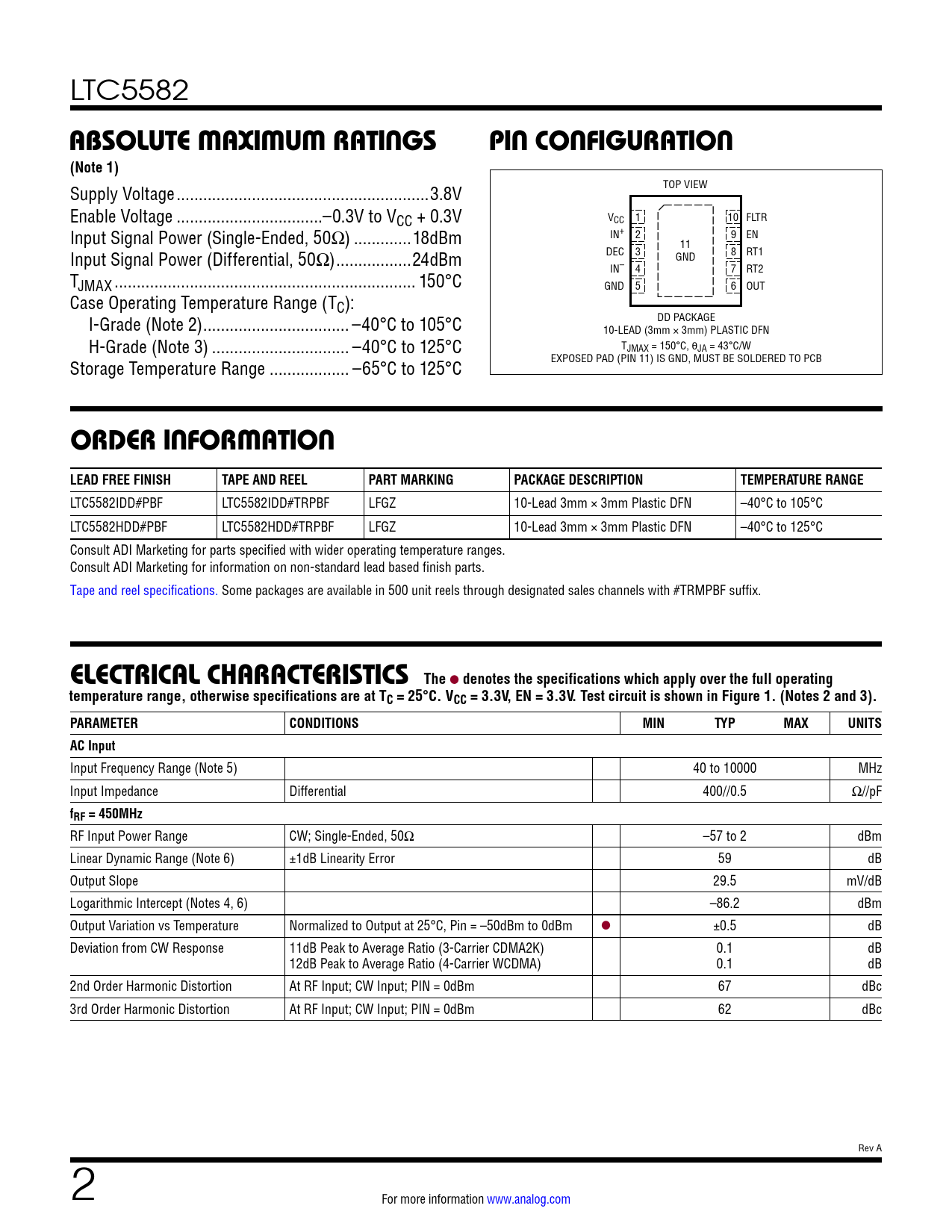

Datasheet LTC5582 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | 40MHz to 10GHz RMS Power Detector with 57dB Dynamic Range |
| Páginas / Página | 18 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 621 Kb |
| Idioma del documento | Inglés |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Versión de texto del documento
link to page 10 LTC5582
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltage ...3.8V TOP VIEW Enable Voltage ...–0.3V to VCC + 0.3V VCC 1 10 FLTR Input Signal Power (Single-Ended, 50Ω) ...18dBm IN+ 2 9 EN 11 Input Signal Power (Differential, 50Ω) ...24dBm DEC 3 GND 8 RT1 IN– 4 7 RT2 TJMAX .. 150°C GND 5 6 OUT Case Operating Temperature Range (TC): I-Grade (Note 2) ... –40°C to 105°C DD PACKAGE 10-LEAD (3mm × 3mm) PLASTIC DFN H-Grade (Note 3) ... –40°C to 125°C TJMAX = 150°C, θJA = 43°C/W Storage Temperature Range .. –65°C to 125°C EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC5582IDD#PBF LTC5582IDD#TRPBF LFGZ 10-Lead 3mm × 3mm Plastic DFN –40°C to 105°C LTC5582HDD#PBF LTC5582HDD#TRPBF LFGZ 10-Lead 3mm × 3mm Plastic DFN –40°C to 125°C Consult ADI Marketing for parts specified with wider operating temperature ranges. Consult ADI Marketing for information on non-standard lead based finish parts. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TC = 25°C. VCC = 3.3V, EN = 3.3V. Test circuit is shown in Figure 1. (Notes 2 and 3). PARAMETER CONDITIONS MIN TYP MAX UNITS AC Input
Input Frequency Range (Note 5) 40 to 10000 MHz Input Impedance Differential 400//0.5 Ω//pF
fRF = 450MHz
RF Input Power Range CW; Single-Ended, 50Ω –57 to 2 dBm Linear Dynamic Range (Note 6) ±1dB Linearity Error 59 dB Output Slope 29.5 mV/dB Logarithmic Intercept (Notes 4, 6) –86.2 dBm Output Variation vs Temperature Normalized to Output at 25°C, Pin = –50dBm to 0dBm l ±0.5 dB Deviation from CW Response 11dB Peak to Average Ratio (3-Carrier CDMA2K) 0.1 dB 12dB Peak to Average Ratio (4-Carrier WCDMA) 0.1 dB 2nd Order Harmonic Distortion At RF Input; CW Input; PIN = 0dBm 67 dBc 3rd Order Harmonic Distortion At RF Input; CW Input; PIN = 0dBm 62 dBc Rev A 2 For more information www.analog.com Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Test Circuits Applications Information Package Description Revision History Typical Application Related Parts Features Applications Typical Application Description Absolute Maximum Ratings Order Information Electrical Characteristics Pin Configuration Typical Performance Characteristics Pin Functions Test Circuits Applications Information Package Description Revision History Typical Application Related Parts
