Datasheet AD9697 (Analog Devices)

FabricanteAnalog Devices
Descripción14-Bit, 1300 MSPS, JESD204B, Analog-to-Digital Converter
Páginas / Página130 / 1 — 14-Bit, 1300 MSPS, JESD204B,. Analog-to-Digital Converter. Data Sheet. …
Formato / tamaño de archivoPDF / 2.2 Mb
Idioma del documentoInglés

14-Bit, 1300 MSPS, JESD204B,. Analog-to-Digital Converter. Data Sheet. AD9697. FEATURES. APPLICATIONS

Datasheet AD9697 Analog Devices

Línea de modelo para esta hoja de datos

Versión de texto del documento

14-Bit, 1300 MSPS, JESD204B, Analog-to-Digital Converter Data Sheet AD9697 FEATURES APPLICATIONS JESD204B (Subclass 1) coded serial digital outputs Communications Lane rates up to 16 Gbps Diversity multiband, multimode digital receivers Total power dissipation: 1.00 W at 1300 MSPS 3G/4G, TD-SCDMA, W-CDMA, GSM, LTE SNR: 65.6 dBFS at 172.3 MHz (1.59 V p-p analog input full scale) General-purpose software radios SFDR: 78 dBFS at 172.3 MHz (1.59 V p-p analog input full scale) Ultrawideband satellite receiver Noise density Instrumentation −153.9 dBFS/Hz (1.59 V p-p analog input full scale) Oscilloscopes −155.6 dBFS/Hz (2.04 V p-p analog input full scale) Spectrum analyzers 0.95 V, 1.8 V, and 2.5 V supply operation Network analyzers No missing codes Integrated RF test solutions Internal ADC voltage reference Radars Flexible differential input voltage range Electronic support measures, electronic counter measures, 1.36 V p-p to 2.04 V p-p (1.59 V p-p typical) and electronic counter to counter measures 2 GHz usable analog input full power bandwidth High speed data acquisition systems Amplitude detect bits for efficient AGC implementation DOCSIS 3.0 CMTS upstream receive paths 4 integrated digital downconverters Hybrid fiber coaxial digital reverse path receivers 48-bit NCO Wideband digital predistortion Programmable decimation rates Differential clock input SPI control Integer clock divide by 2 and divide by 4 Flexible JESD204B lane configurations On-chip dithering to improve small signal linearity FUNCTIONAL BLOCK DIAGRAM AVDD1 AVDD2 AVDD3 AVDD1_SR DVDD DRVDD1 DRVDD2 SPIVDD (0.95V) (1.8V) (2.5V) (0.95V) (0.95V) (0.95V) (1.8V) (1.8V) E SIGNAL UX UX MONITOR ABL R SERDOUT0± M JESD204B 4 SERDOUT1± FAST DIGITAL DOWN- LINK DETECT BAR M CONVERTER BAR M SERDOUT2± AND RAM FILTE S S S S G Tx SERDOUT3± FIR OUTPUTS RO CRO CRO P VIN+ 14 ADC VIN– CORE BUFFER VREF SYNCINB± PDWN/STBY JESD204B CLOCK SYSREF± SUBCLASS 1 DISTRIBUTION CONTROL FD/GPIO1 CLK+ GPIO MUX SPI AND GPIO2 CONTROL REGISTERS CLK– ÷2 ÷4 AD9697
001
AGND SDIO SCLK CSB DRGND DGND

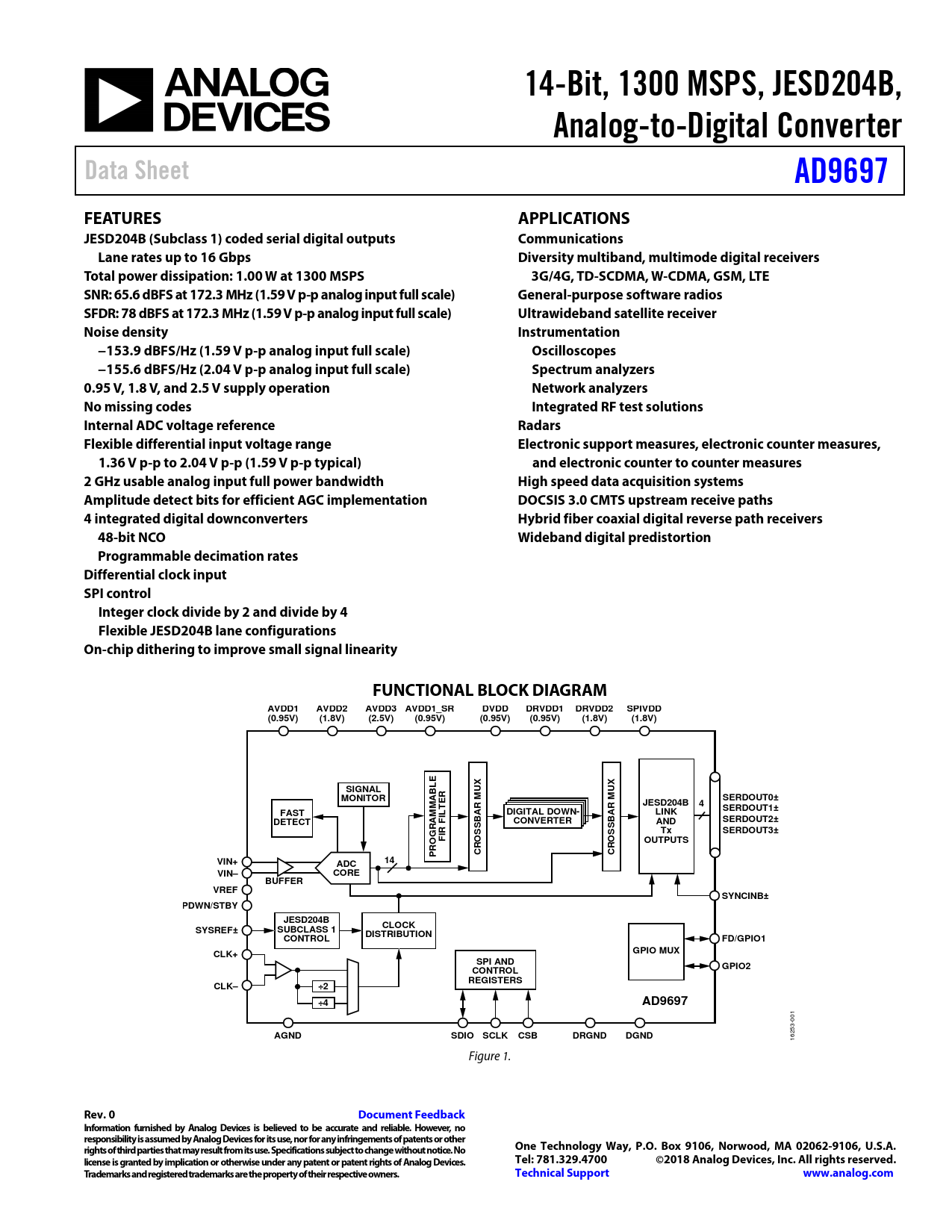

16253- Figure 1.
