Datasheet 2N4033 (STMicroelectronics)
| Fabricante | STMicroelectronics |
| Descripción | Small Signal PNP Transistor |
| Páginas / Página | 6 / 1 — 2N4033. DESCRIPTION. TO-39. INTERNAL SCHEMATIC DIAGRAM. ABSOLUTE MAXIMUM … |
| Formato / tamaño de archivo | PDF / 502 Kb |
| Idioma del documento | Inglés |

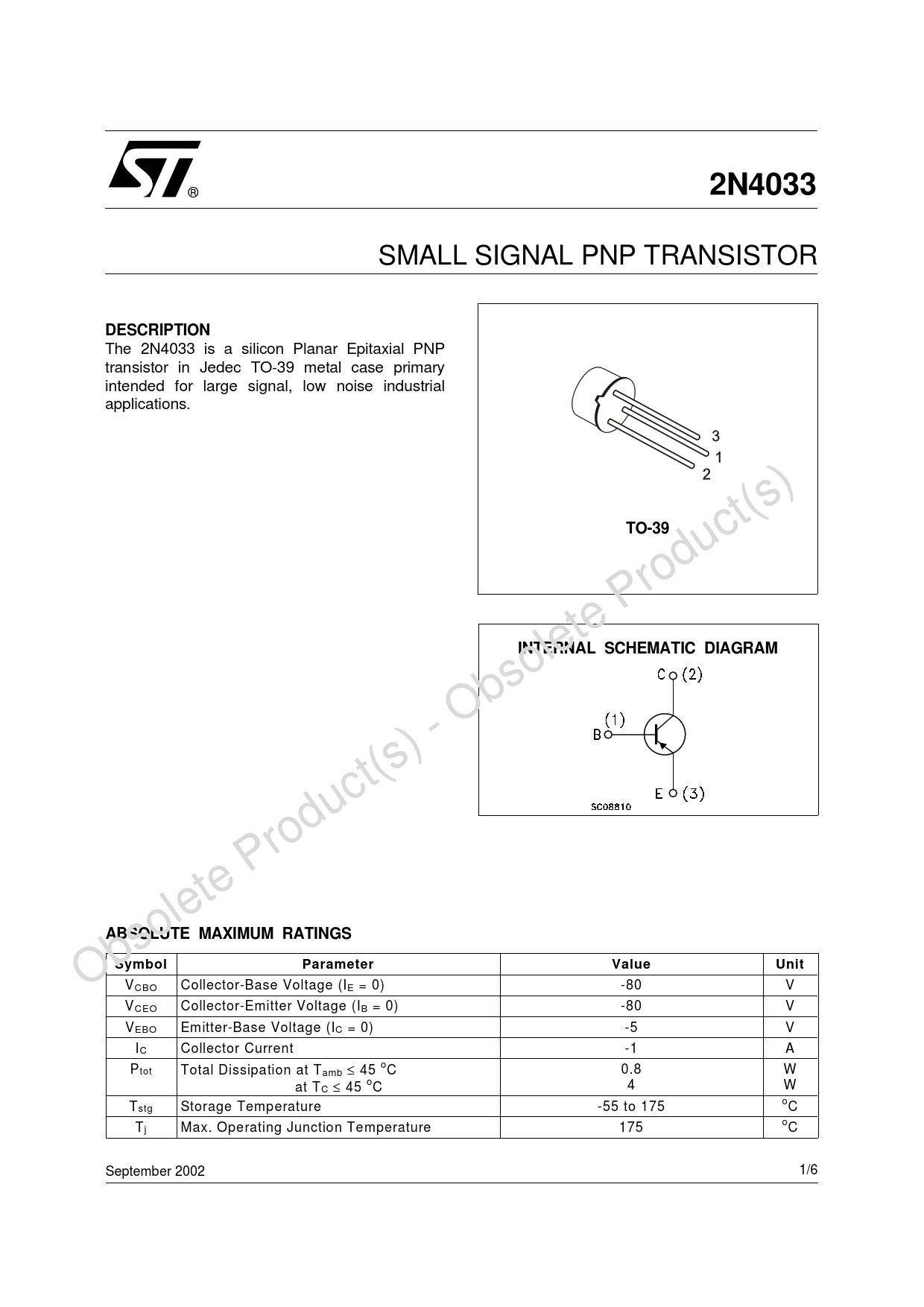

2N4033. DESCRIPTION. TO-39. INTERNAL SCHEMATIC DIAGRAM. ABSOLUTE MAXIMUM RATINGS. Symbol. Parameter. Value. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
®
2N4033
SMALL SIGNAL PNP TRANSISTOR
DESCRIPTION
The 2N4033 is a silicon Planar Epitaxial PNP transistor in Jedec TO-39 metal case primary intended for large signal, low noise industrial applications.
TO-39 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter Value Unit
Obsolete Product(s) - Obsolete Product(s) VCBO Collector-Base Voltage (IE = 0) -80 V VCEO Collector-Emitter Voltage (IB = 0) -80 V VEBO Emitter-Base Voltage (IC = 0) -5 V IC Collector Current -1 A Ptot Total Dissipation at Tamb ≤ 45 oC 0.8 W at TC ≤ 45 oC 4 W Tstg Storage Temperature -55 to 175 oC Tj Max. Operating Junction Temperature 175 oC September 2002 1/6
