Bridge Sensor Signal Conditioner IC with LIN Interface, Nonlinearity Correction, Temperature Compensation Data Sheet ADA4558 FEATURES GENERAL DESCRIPTION LIN 2.1 compliant interface (bridge sensor signal, temperature)
The ADA4558 is a fully integrated, sensor signal conditioner
Digitally programmable gain and offset voltage adjustment
IC for bridge sensors. The device provides digital nonlinearity
Gain range from 2.94 V/V to 971.10 V/V
correction and temperature compensation via internal or external
Sensor temperature compensation (first- or second-order)
sensed temperatures using on-chip correction and calibration
Sensor nonlinearity correction (first- or second-order)
hardware that can be optimized for a specific bridge sensor.
Internal or external temperature sensor compensation
The ADA4558 utilizes a fourth-order digital correction algorithm
EEPROM nonvolatile memory for calibration data
and delivers a system accuracy of 0.1% full scale range (FSR) for
High system accuracy: 0.1% FSR over temperature
bridge sensors with second-order nonlinearity sensitivity. The
EMC and EMI protection
ADA4558 includes a local interconnect network (LIN) physical
Fault protection for open circuits and short circuits
interface for single-wire, high voltage communications in
4 mm × 4 mm, 20-lead LFCSP
automotive environments. LIN 2.1 and earlier versions are
6 V to 18 V supply operation
supported. The LIN interface allows access to measurements,
−40°C to +150°C operating temperature range
end of line (EOL) calibration, and a wide range of diagnostic
AEC-Q100 qualified for automotive applications
functions.
APPLICATIONS
The analog subsystem consists of an analog-to-digital
Strain gage
converter (ADC) and a programmable gain amplifier (PGA)
Pressure signal conditioner for automotive vehicles
with a wide gain range from 2.94 V/V to 971.10 V/V. To minimize power supply noise, the bridge sensor is biased with an internal 4 V voltage regulator. The ADA4558 is fully specified from −40°C to +150°C. The device operates from battery supply voltages of 6 V to 18 V. The ADA4558 is available in a 4 mm × 4 mm, 20-lead lead frame chip scale package (LFCSP).

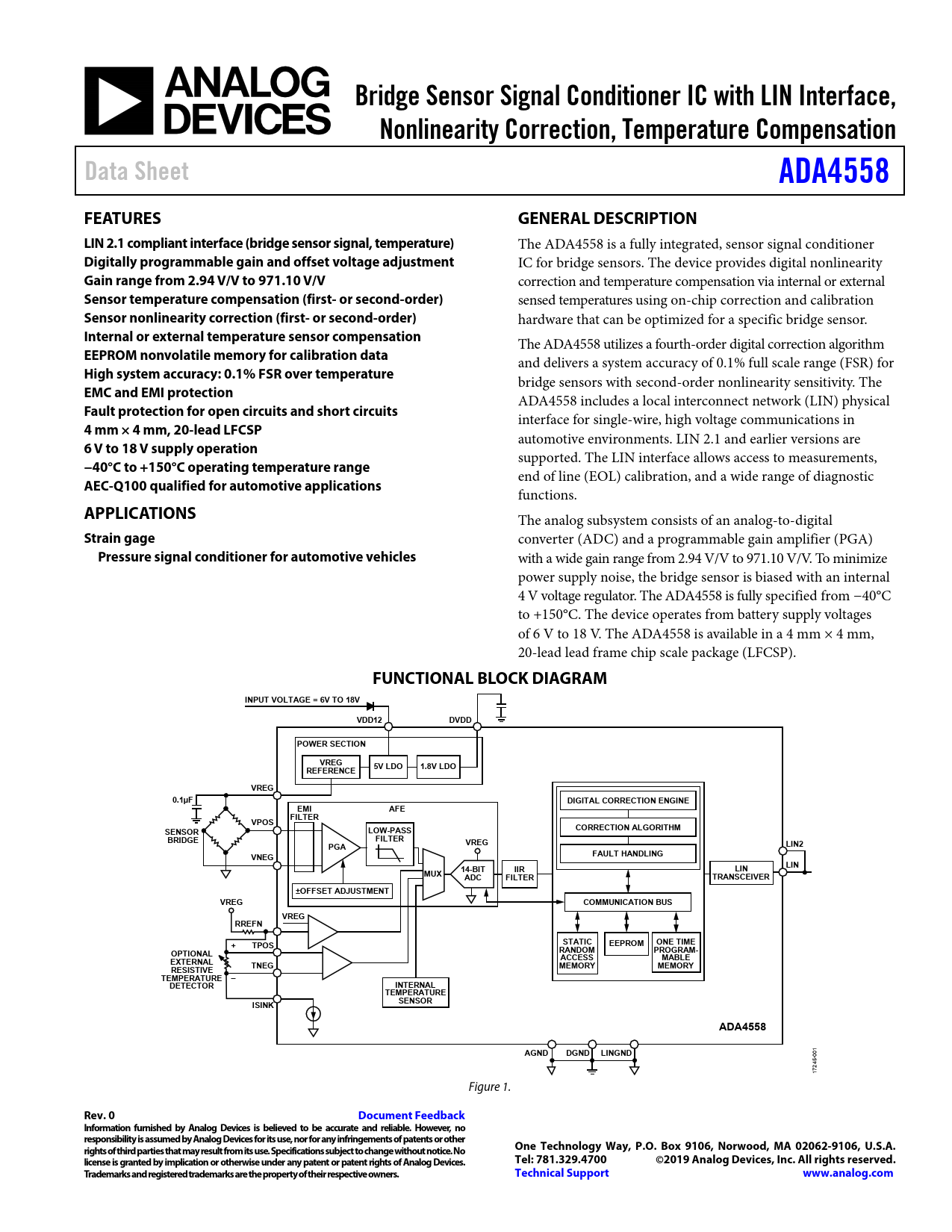

FUNCTIONAL BLOCK DIAGRAM INPUT VOLTAGE = 6V TO 18V VDD12 DVDD POWER SECTION VREG 5V LDO 1.8V LDO REFERENCE VREG 0.1µF DIGITAL CORRECTION ENGINE EMI AFE FILTER VPOS SENSOR LOW-PASS CORRECTION ALGORITHM BRIDGE FILTER VREG LIN2 PGA FAULT HANDLING VNEG 14-BIT IIR LIN LIN MUX ADC FILTER TRANSCEIVER ±OFFSET ADJUSTMENT VREG COMMUNICATION BUS VREG RREFN STATIC EEPROM ONE TIME + TPOS RANDOM PROGRAM- OPTIONAL ACCESS MABLE EXTERNAL TNEG MEMORY MEMORY RESISTIVE TEMPERATURE DETECTOR INTERNAL TEMPERATURE SENSOR ISINK ADA4558 AGND DGND LINGND
