3.3 V, 4.25 Gbps,. Limiting Amplifier. Data Sheet. ADN2892. FEATURES. GENERAL DESCRIPTION. Input sensitivity: 3.5 mV p-p

Datasheet ADN2892 Analog Devices, Revisión: C

Línea de modelo para esta hoja de datos

Versión de texto del documento

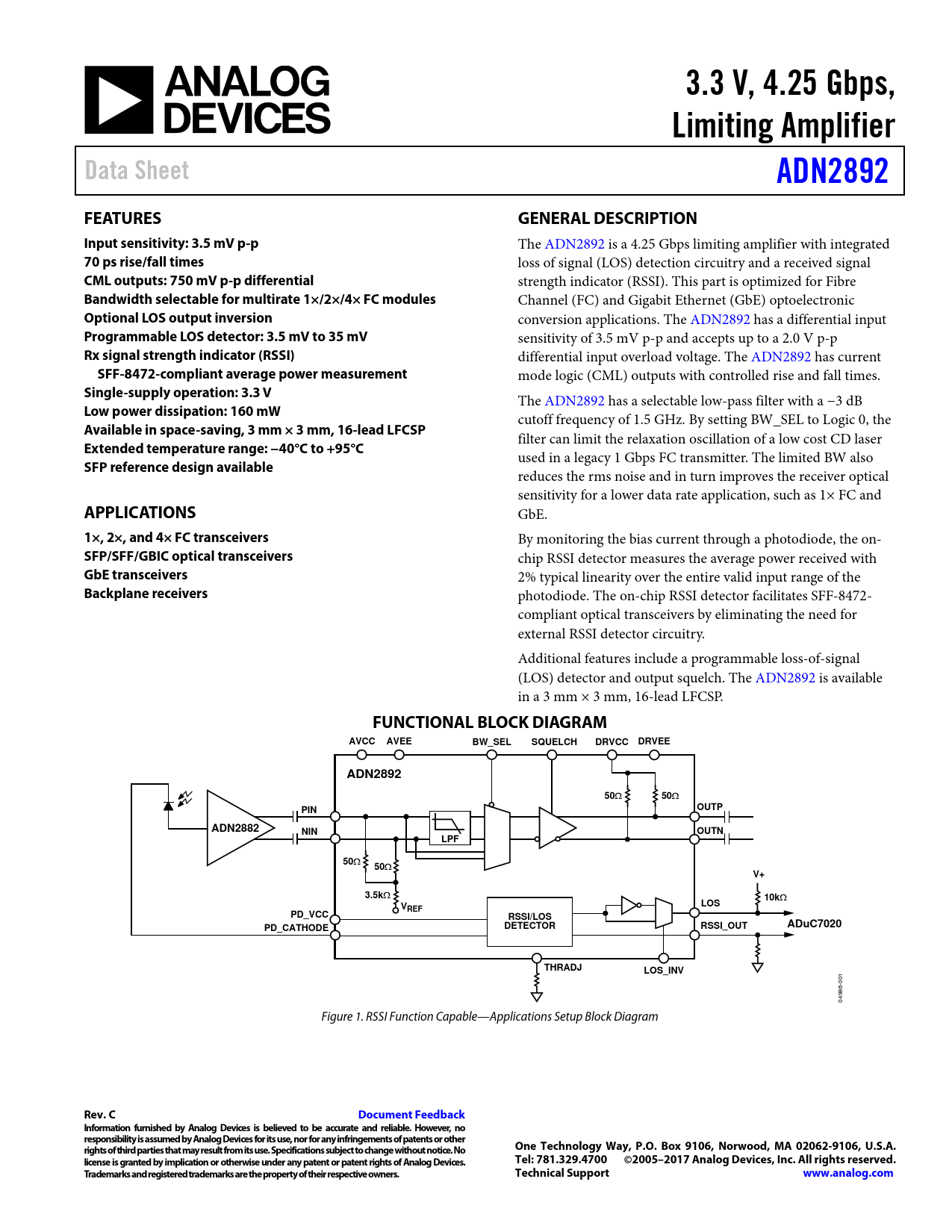

3.3 V, 4.25 Gbps, Limiting Amplifier Data Sheet ADN2892 FEATURES GENERAL DESCRIPTION Input sensitivity: 3.5 mV p-p
The ADN2892 is a 4.25 Gbps limiting amplifier with integrated
70 ps rise/fall times
loss of signal (LOS) detection circuitry and a received signal
CML outputs: 750 mV p-p differential
strength indicator (RSSI). This part is optimized for Fibre
Bandwidth selectable for multirate 1×/2×/4× FC modules
Channel (FC) and Gigabit Ethernet (GbE) optoelectronic
Optional LOS output inversion
conversion applications. The ADN2892 has a differential input
Programmable LOS detector: 3.5 mV to 35 mV
sensitivity of 3.5 mV p-p and accepts up to a 2.0 V p-p
Rx signal strength indicator (RSSI)
differential input overload voltage. The ADN2892 has current
SFF-8472-compliant average power measurement
mode logic (CML) outputs with controlled rise and fall times.
Single-supply operation: 3.3 V
The ADN2892 has a selectable low-pass filter with a −3 dB
Low power dissipation: 160 mW
cutoff frequency of 1.5 GHz. By setting BW_SEL to Logic 0, the
Available in space-saving, 3 mm × 3 mm, 16-lead LFCSP
filter can limit the relaxation oscil ation of a low cost CD laser
Extended temperature range: −40°C to +95°C
used in a legacy 1 Gbps FC transmitter. The limited BW also
SFP reference design available
reduces the rms noise and in turn improves the receiver optical sensitivity for a lower data rate application, such as 1× FC and
APPLICATIONS
GbE.
1×, 2×, and 4× FC transceivers
By monitoring the bias current through a photodiode, the on-
SFP/SFF/GBIC optical transceivers
chip RSSI detector measures the average power received with
GbE transceivers
2% typical linearity over the entire valid input range of the
Backplane receivers
photodiode. The on-chip RSSI detector facilitates SFF-8472- compliant optical transceivers by eliminating the need for external RSSI detector circuitry. Additional features include a programmable loss-of-signal (LOS) detector and output squelch. The ADN2892 is available in a 3 mm × 3 mm, 16-lead LFCSP.
FUNCTIONAL BLOCK DIAGRAM AVCC AVEE BW_SEL SQUELCH DRVCC DRVEE ADN2892 50

50

OUTP PIN ADN2882 NIN OUTN LPF 50

50

V+ 3.5k

10k

V LOS REF PD_VCC RSSI/LOS DETECTOR PD_CATHODE RSSI_OUT ADuC7020 THRADJ LOS_INV
04986-001 Figure 1. RSSI Function Capable—Applications Setup Block Diagram
