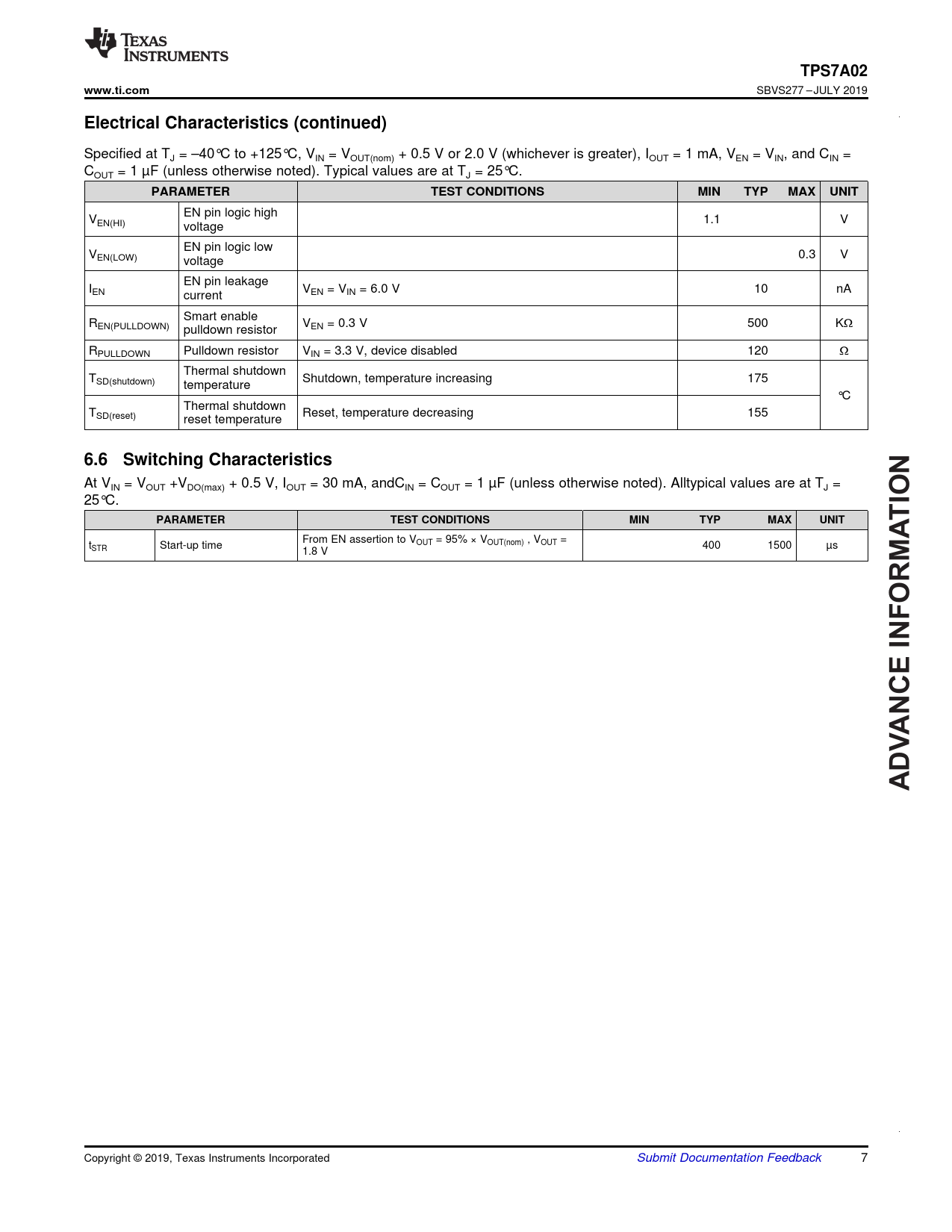

Datasheet TPS7A02 (Texas Instruments) - 7

TPS7A02 www.ti.com
SBVS277 – JULY 2019
Electrical Characteristics (continued)
Specified at TJ = –40°C to +125°C, VIN = VOUT(nom) + 0.5 V or 2.0 V (whichever is greater), IOUT = 1 mA, VEN = VIN, and CIN = COUT = 1 µF (unless otherwise noted). Typical values are at TJ = 25°C.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
EN pin logic high VEN(HI) 1.1 V voltage EN pin logic low VEN(LOW) 0.3 V voltage EN pin leakage IEN V current EN = VIN = 6.0 V 10 nA Smart enable REN(PULLDOWN) V pulldown resistor EN = 0.3 V 500 KΩ RPULLDOWN Pulldown resistor VIN = 3.3 V, device disabled 120 Ω Thermal shutdown TSD(shutdown) Shutdown, temperature increasing 175 temperature °C Thermal shutdown TSD(reset) Reset, temperature decreasing 155 reset temperature
6.6 Switching Characteristics
At VIN = VOUT +VDO(max) + 0.5 V, IOUT = 30 mA, andCIN = COUT = 1 µF (unless otherwise noted). Alltypical values are at TJ = 25°C.
TION PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
From EN assertion to V t OUT = 95% × VOUT(nom) , VOUT = STR Start-up time 400 1500 µs 1.8 V
ANCEINFORMA ADV
