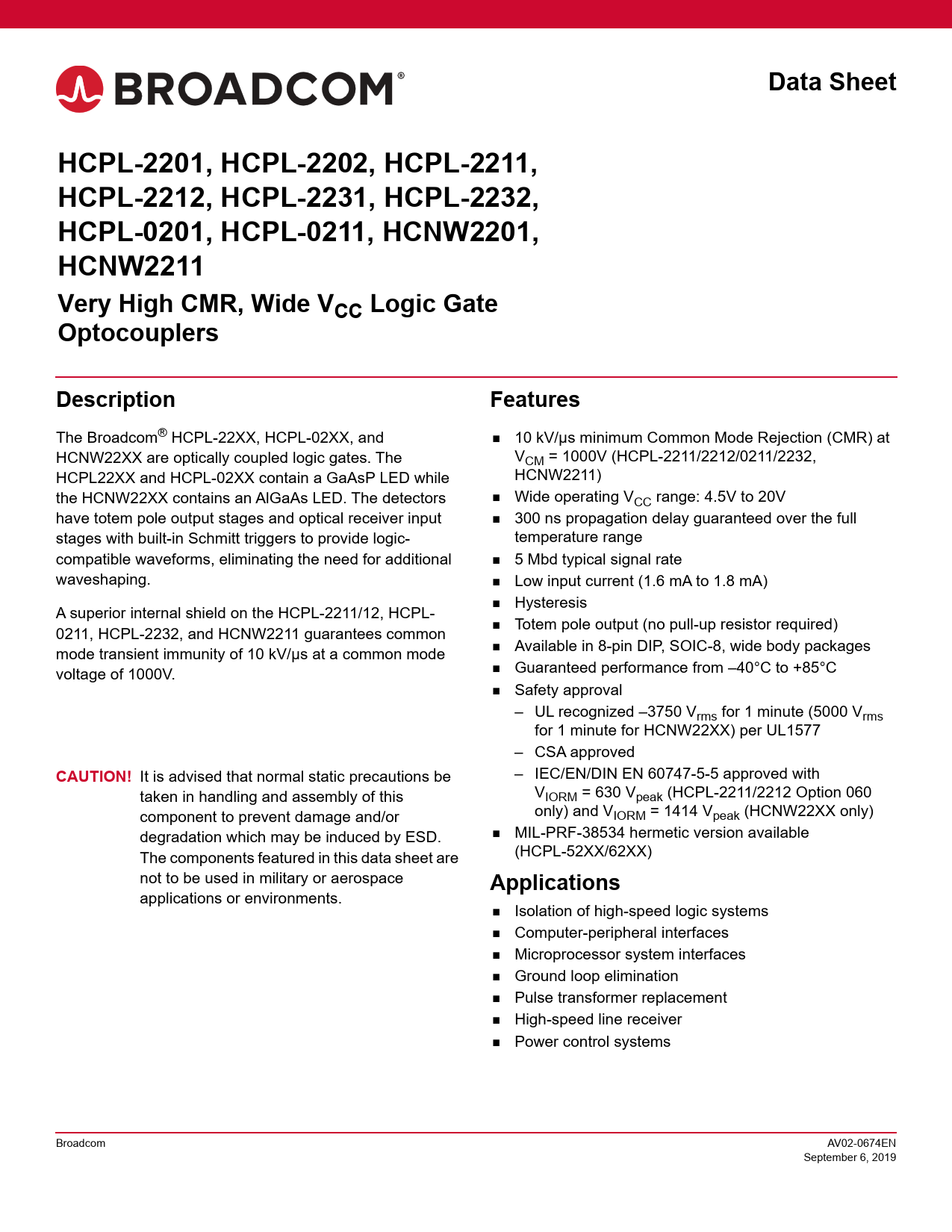

Data Sheet HCPL-2201, HCPL-2202, HCPL-2211, HCPL-2212, HCPL-2231, HCPL-2232, HCPL-0201, HCPL-0211, HCNW2201, HCNW2211 Very High CMR, Wide VCC Logic Gate Optocouplers Description Features
The Broadcom® HCPL-22XX, HCPL-02XX, and 10 kV/µs minimum Common Mode Rejection (CMR) at HCNW22XX are optically coupled logic gates. The VCM = 1000V (HCPL-2211/2212/0211/2232, HCPL22XX and HCPL-02XX contain a GaAsP LED while HCNW2211) the HCNW22XX contains an AlGaAs LED. The detectors Wide operating VCC range: 4.5V to 20V have totem pole output stages and optical receiver input 300 ns propagation delay guaranteed over the full stages with built-in Schmitt triggers to provide logic- temperature range compatible waveforms, eliminating the need for additional 5 Mbd typical signal rate waveshaping. Low input current (1.6 mA to 1.8 mA) Hysteresis A superior internal shield on the HCPL-2211/12, HCPL- 0211, HCPL-2232, and HCNW2211 guarantees common Totem pole output (no pull-up resistor required) mode transient immunity of 10 kV/µs at a common mode Available in 8-pin DIP, SOIC-8, wide body packages voltage of 1000V. Guaranteed performance from –40°C to +85°C Safety approval – UL recognized –3750 Vrms for 1 minute (5000 Vrms for 1 minute for HCNW22XX) per UL1577 – CSA approved
CAUTION!
It is advised that normal static precautions be – IEC/EN/DIN EN 60747-5-5 approved with taken in handling and assembly of this VIORM = 630 Vpeak (HCPL-2211/2212 Option 060 component to prevent damage and/or only) and VIORM = 1414 Vpeak (HCNW22XX only) degradation which may be induced by ESD. MIL-PRF-38534 hermetic version available The components featured in this data sheet are (HCPL-52XX/62XX) not to be used in military or aerospace
Applications
applications or environments. Isolation of high-speed logic systems Computer-peripheral interfaces Microprocessor system interfaces Ground loop elimination Pulse transformer replacement High-speed line receiver Power control systems Broadcom AV02-0674EN September 6, 2019 Document Outline Description Features Applications Functional Diagram Selection Guide Schematic Ordering Information Package Outline Drawings 8-Pin DIP Package (HCPL-2201/02/11/12/31/32) 8-Pin DIP Package with Gull Wing Surface Mount Option 300 (HCPL-2201/02/11/12/31/32) Small-Outline SO-8 Package (HCPL-0201/11) 8-Pin Widebody DIP Package (HCNW2201/11) 8-Pin Widebody DIP Package with Gull Wing Surface Mount Option 300 (HCNW2201/11) Solder Reflow Profile Regulatory Information Insulation and Safety Related Specifications IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (Option 060) IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (HCNW22xx Option 060 ONLY) Absolute Maximum Ratings Recommended Operating Conditions Electrical Specifications Switching Specifications (AC) Package Characteristics
