Datasheet BAT54TW, BAT54ADW, BAT54CDW, BAT54SDW, BAT54BRW (Diodes)
| Fabricante | Diodes |
| Descripción | Surface Mount Schottky Barrier Diode Arrays |
| Páginas / Página | 4 / 1 — BAT54TW /ADW / CDW /SDW /BRW. SURFACE MOUNT SCHOTTKY BARRIER DIODE … |
| Formato / tamaño de archivo | PDF / 310 Kb |
| Idioma del documento | Inglés |
BAT54TW /ADW / CDW /SDW /BRW. SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS. Features. Mechanical Data
Línea de modelo para esta hoja de datos
Versión de texto del documento

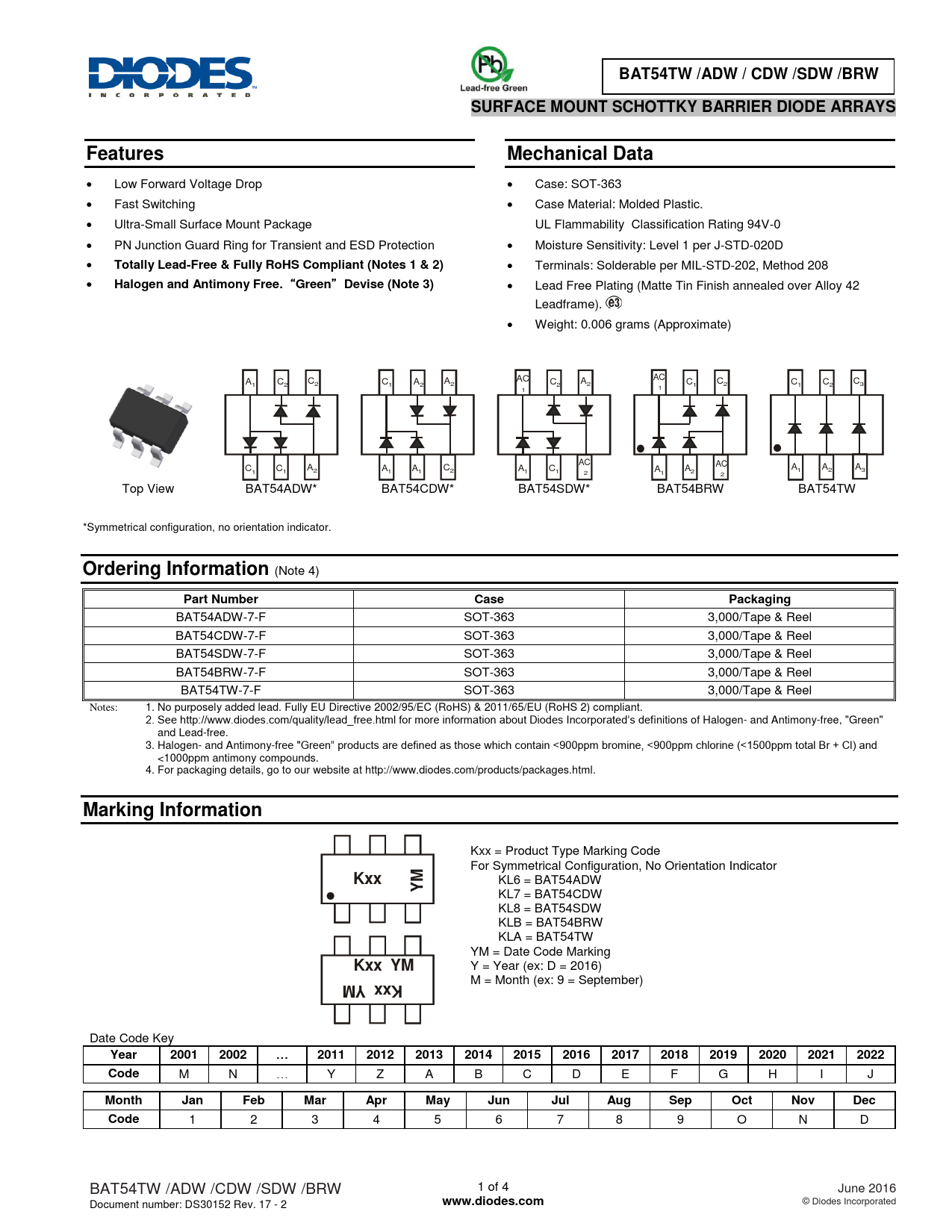

BAT54TW /ADW / CDW /SDW /BRW SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS Features Mechanical Data
Low Forward Voltage Drop Case: SOT-363 Fast Switching Case Material: Molded Plastic. Ultra-Small Surface Mount Package UL Flammability Classification Rating 94V-0 PN Junction Guard Ring for Transient and ESD Protection Moisture Sensitivity: Level 1 per J-STD-020D
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Terminals: Solderable per MIL-STD-202, Method 208
Halogen and Antimony Free.
“
Green
”
Devise (Note 3)
Lead Free Plating (Matte Tin Finish annealed over Alloy 42 Leadframe). Weight: 0.006 grams (Approximate) A C C C A A AC C A AC C C C C C 1 2 2 1 2 2 2 2 1 2 1 2 3 1 1 AC AC C C A A A C A C A A A A 1 1 2 1 1 2 1 1 A1 2 1 2 3 2 2 Top View BAT54ADW* BAT54CDW* BAT54SDW* BAT54BRW BAT54TW *Symmetrical configuration, no orientation indicator.
Ordering Information
(Note 4)
Part Number Case Packaging
BAT54ADW-7-F SOT-363 3,000/Tape & Reel BAT54CDW-7-F SOT-363 3,000/Tape & Reel BAT54SDW-7-F SOT-363 3,000/Tape & Reel BAT54BRW-7-F SOT-363 3,000/Tape & Reel BAT54TW-7-F SOT-363 3,000/Tape & Reel Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Kxx = Product Type Marking Code For Symmetrical Configuration, No Orientation Indicator
Kxx M
KL6 = BAT54ADW
Y
KL7 = BAT54CDW KL8 = BAT54SDW KLB = BAT54BRW KLA = BAT54TW YM = Date Code Marking
Kxx YM
Y = Year (ex: D = 2016)
M Y x x K
M = Month (ex: 9 = September)
Date Code Key
Year 2001 2002 … 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 Code
M N … Y Z A B C D E F G H I J
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D BAT54TW /ADW /CDW /SDW /BRW 1 of 4 June 2016 Document number: DS30152 Rev. 17 - 2
www.diodes.com
© Diodes Incorporated
