TSSP960.. IR Sensor Module for Reflective Sensor, Light Barrier,. and Fast Proximity Applications. FEATURES

Datasheet TSSP960 Vishay

Línea de modelo para esta hoja de datos

Versión de texto del documento

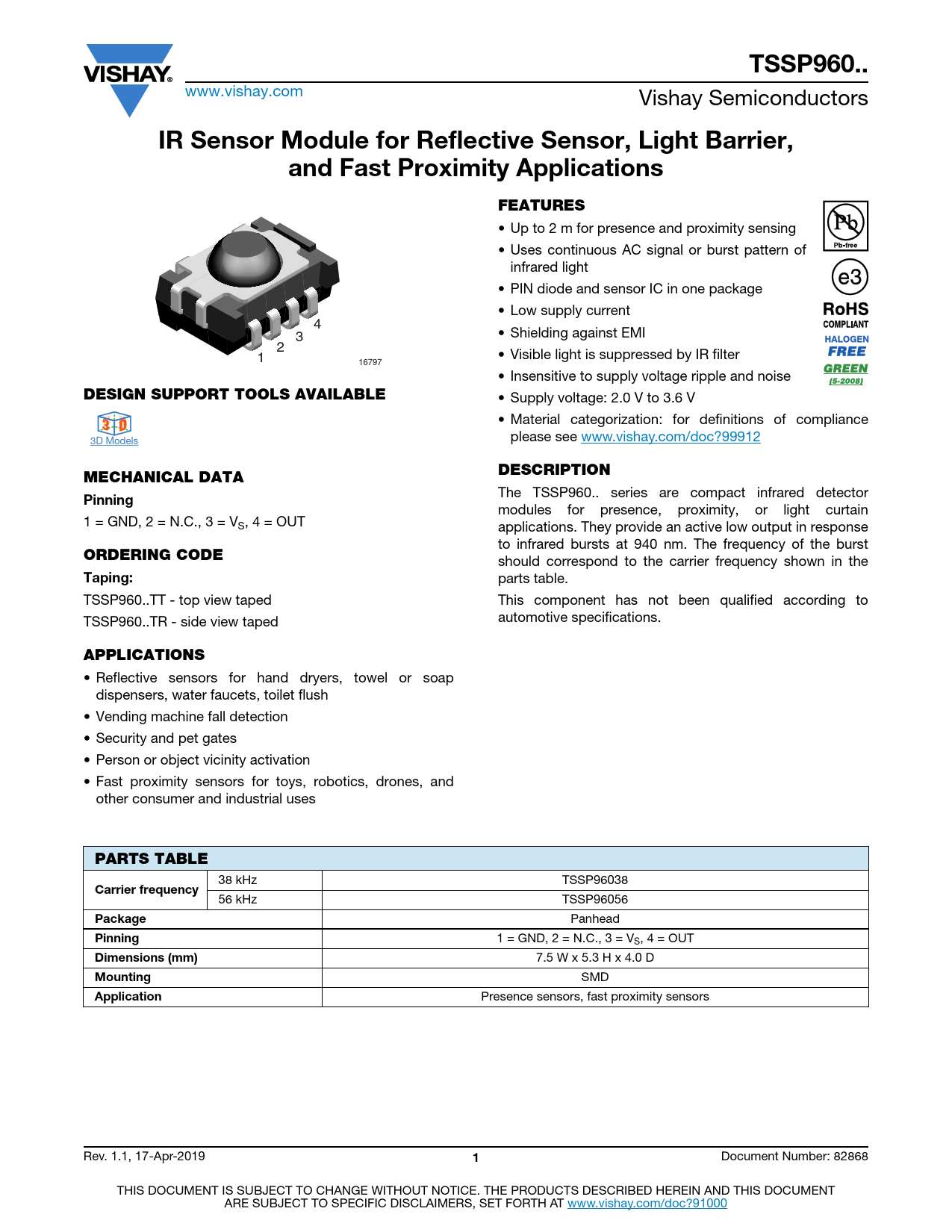

TSSP960..
www.vishay.com Vishay Semiconductors
IR Sensor Module for Reflective Sensor, Light Barrier, and Fast Proximity Applications FEATURES
• Up to 2 m for presence and proximity sensing • Uses continuous AC signal or burst pattern of infrared light • PIN diode and sensor IC in one package • Low supply current 4 • Shielding against EMI 3 2 • Visible light is suppressed by IR filter 1 16797 • Insensitive to supply voltage ripple and noise
DESIGN SUPPORT TOOLS AVAILABLE
• Supply voltage: 2.0 V to 3.6 V
D 3
• Material categorization: for definitions of compliance
3 D
3D Models please see www.vishay.com/doc?99912
MECHANICAL DATA DESCRIPTION
The TSSP960.. series are compact infrared detector
Pinning
modules for presence, proximity, or light curtain 1 = GND, 2 = N.C., 3 = VS, 4 = OUT applications. They provide an active low output in response to infrared bursts at 940 nm. The frequency of the burst
ORDERING CODE
should correspond to the carrier frequency shown in the
Taping:
parts table. TSSP960..TT - top view taped This component has not been qualified according to TSSP960..TR - side view taped automotive specifications.
APPLICATIONS
• Reflective sensors for hand dryers, towel or soap dispensers, water faucets, toilet flush • Vending machine fall detection • Security and pet gates • Person or object vicinity activation • Fast proximity sensors for toys, robotics, drones, and other consumer and industrial uses
PARTS TABLE
38 kHz TSSP96038
Carrier frequency
56 kHz TSSP96056
Package
Panhead
Pinning
1 = GND, 2 = N.C., 3 = VS, 4 = OUT
Dimensions (mm)
7.5 W x 5.3 H x 4.0 D
Mounting
SMD
Application
Presence sensors, fast proximity sensors Rev. 1.1, 17-Apr-2019
1
Document Number: 82868 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
