| Fabricante | Diodes |
| Descripción | Automotive Compliant 150MA High Psrr Low Noise Ldo With Enable |
| Páginas / Página | 12 / 10 — AP7315Q. Ordering Information. AP7315X Q - XXX XXX. Part Number. … |
| Formato / tamaño de archivo | PDF / 543 Kb |
| Idioma del documento | Inglés |

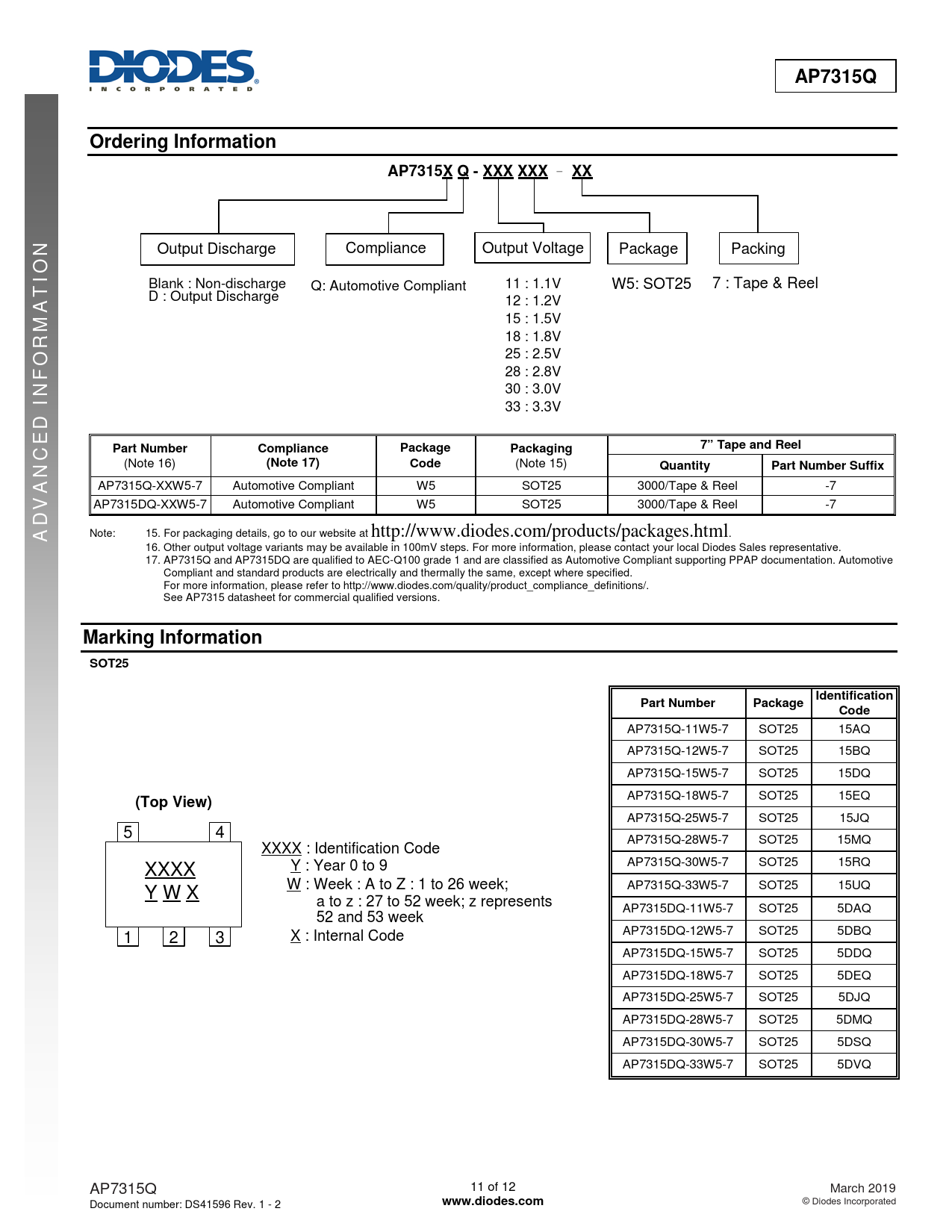

AP7315Q. Ordering Information. AP7315X Q - XXX XXX. Part Number. Compliance. Package. Packaging. 7” Tape and Reel. (Note 17). Code
Línea de modelo para esta hoja de datos
Versión de texto del documento
AP7315Q Ordering Information AP7315X Q - XXX XXX
–
XX N
Output Discharge Compliance Output Voltage Package Packing
IO
Blank : Non-discharge Q: Automotive Compliant 11 : 1.1V W5: SOT25 7 : Tape & Reel
AT
D : Output Discharge 12 : 1.2V 15 : 1.5V
RM
18 : 1.8V
O
25 : 2.5V
F
28 : 2.8V
N
30 : 3.0V
I
33 : 3.3V
D E C Part Number Compliance Package Packaging 7” Tape and Reel
(Note 16)
(Note 17) Code
(Note 15)
Quantity Part Number Suffix
AP7315Q-XXW5-7 Automotive Compliant W5 SOT25 3000/Tape & Reel -7 AP7315DQ-XXW5-7 Automotive Compliant W5 SOT25 3000/Tape & Reel -7
ADVAN
Note: 15. For packaging details, go to our website at http://www.diodes.com/products/packages.html. 16. Other output voltage variants may be available in 100mV steps. For more information, please contact your local Diodes Sales representative. 17. AP7315Q and AP7315DQ are qualified to AEC-Q100 grade 1 and are classified as Automotive Compliant supporting PPAP documentation. Automotive Compliant and standard products are electrically and thermally the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/. See AP7315 datasheet for commercial qualified versions.
Marking Information SOT25 Identification Part Number Package Code
AP7315Q-11W5-7 SOT25 15AQ AP7315Q-12W5-7 SOT25 15BQ AP7315Q-15W5-7 SOT25 15DQ
(Top View)
AP7315Q-18W5-7 SOT25 15EQ AP7315Q-25W5-7 SOT25 15JQ 5 7 4 AP7315Q-28W5-7 SOT25 15MQ XXXX : Identification Code Y : Year 0 to 9 XXXX AP7315Q-30W5-7 SOT25 15RQ W : Week : A to Z : 1 to 26 week; Y W X AP7315Q-33W5-7 SOT25 15UQ a to z : 27 to 52 week; z represents AP7315DQ-11W5-7 SOT25 5DAQ 52 and 53 week 1 2 3 X : Internal Code AP7315DQ-12W5-7 SOT25 5DBQ AP7315DQ-15W5-7 SOT25 5DDQ
AP7315DQ-18W5-7 SOT25 5DEQ AP7315DQ-25W5-7 SOT25 5DJQ AP7315DQ-28W5-7 SOT25 5DMQ AP7315DQ-30W5-7 SOT25 5DSQ AP7315DQ-33W5-7 SOT25 5DVQ
AP7315Q 11 of 12 March 2019 Document number: DS41596 Rev. 1 - 2
