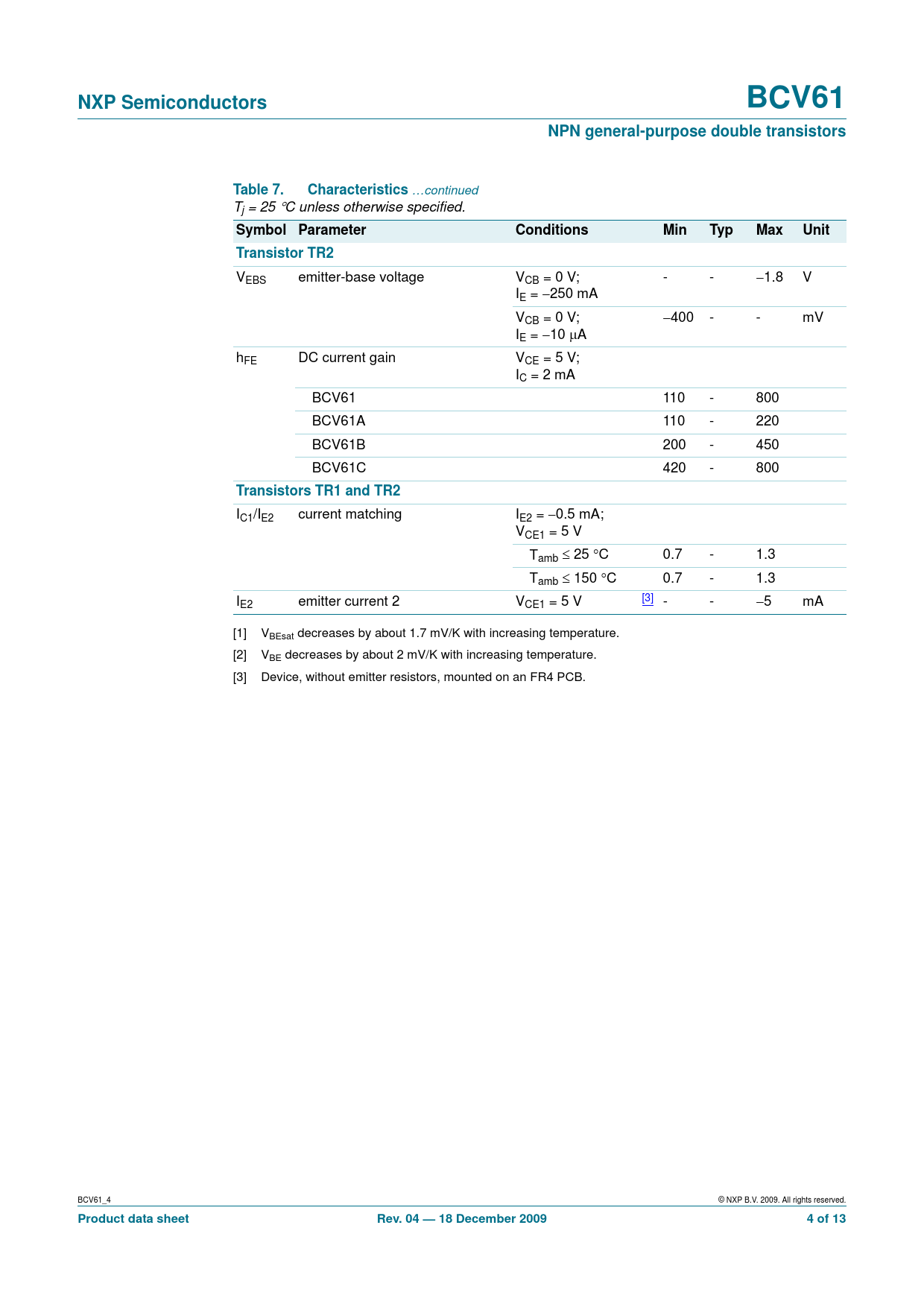

NXP Semiconductors BCV61 NPN general-purpose double transistors Table 7. Characteristics
…continued Tj = 25 °C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit Transistor TR2
VEBS emitter-base voltage VCB = 0 V; - - −1.8 V IE = −250 mA V − CB = 0 V; 400 - - mV IE = −10 μA hFE DC current gain VCE = 5 V; IC = 2 mA BCV61 110 - 800 BCV61A 110 - 220 BCV61B 200 - 450 BCV61C 420 - 800
Transistors TR1 and TR2
IC1/IE2 current matching IE2 = −0.5 mA; VCE1 = 5 V T ≤ amb 25 °C 0.7 - 1.3 T ≤ amb 150 °C 0.7 - 1.3 IE2 emitter current 2 VCE1 = 5 V [3] - - −5 mA [1] VBEsat decreases by about 1.7 mV/K with increasing temperature. [2] VBE decreases by about 2 mV/K with increasing temperature. [3] Device, without emitter resistors, mounted on an FR4 PCB. BCV61_4 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 04 — 18 December 2009 4 of 13
