TC913A/TC913B. 5.3. Package Dimensions. Note:. 8-Pin SOIC. Dimensions: inches (mm). 8-Pin Plastic DIP
Línea de modelo para esta hoja de datos
Versión de texto del documento

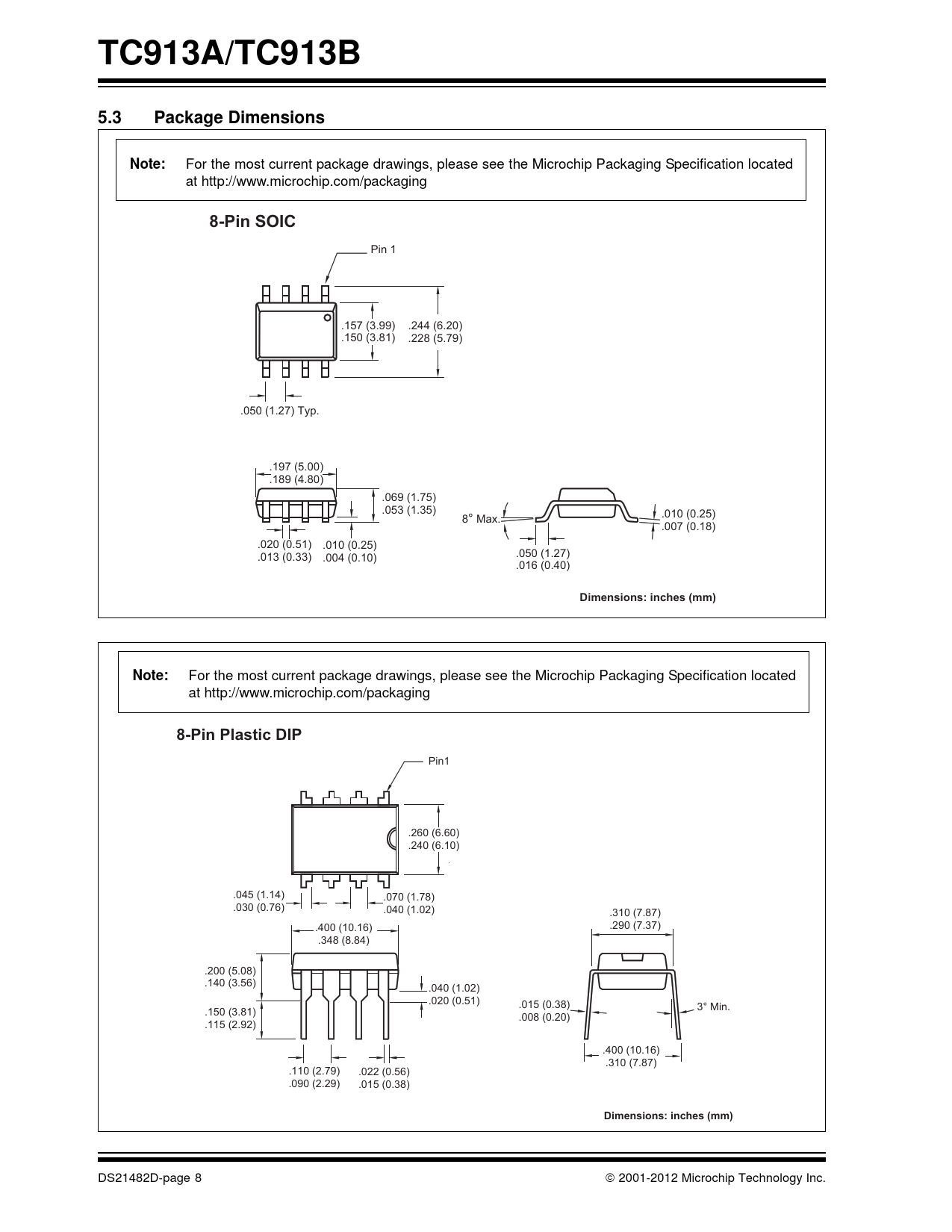

TC913A/TC913B 5.3 Package Dimensions Note:
For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging
8-Pin SOIC
Pin 1 .157 (3.99) .244 (6.20) .150 (3.81) .228 (5.79) .050 (1.27) Typ. .197 (5.00) .189 (4.80) .069 (1.75) .053 (1.35) 8° Max. .010 (0.25) .007 (0.18) .020 (0.51) .010 (0.25) .013 (0.33) .004 (0.10) .050 (1.27) .016 (0.40)
Dimensions: inches (mm) Note:
For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging
8-Pin Plastic DIP
Pin1 .260 (6.60) .240 (6.10) .045 (1.14) .070 (1.78) .030 (0.76) .040 (1.02) .310 (7.87) .400 (10.16) .290 (7.37) .348 (8.84) .200 (5.08) .140 (3.56) .040 (1.02) .020 (0.51) .015 (0.38) 3° Min. .150 (3.81) .008 (0.20) .115 (2.92) .400 (10.16) .310 (7.87) .110 (2.79) .022 (0.56) .090 (2.29) .015 (0.38)
Dimensions: inches (mm)
DS21482D-page 8 2001-2012 Microchip Technology Inc. Document Outline TC913A/TC913B Features: Applications: Device Selection Table Package Type General Description: Functional Block Diagram 1.0 Electrical characteristics Absolute Maximum Ratings* tc913a and tc913b electrical specifications Note 1: Characterized; not 100% tested. 2.0 Pin Descriptions TABLE 2-1: Pin Function Table 3.0 Detailed Description 3.1 Theory of Operation 3.2 Pin Compatibility 3.3 Overload Recovery 3.4 Avoiding Latch-up 4.0 Typical Characteristics 5.0 packaging information 5.1 Package Marking Information 5.2 Taping Form 5.3 Package Dimensions 6.0 Revision History Notes: Dual Auto-Zeroed Operational Amplifiers The Microchip Web Site Customer Change Notification Service Customer Support Reader Response Corporate Office Atlanta Boston Chicago Cleveland Fax: 216-447-0643 Dallas Detroit Indianapolis Toronto Fax: 852-2401-3431 Australia - Sydney China - Beijing China - Shanghai India - Bangalore Korea - Daegu Korea - Seoul Singapore Taiwan - Taipei Fax: 43-7242-2244-393 Denmark - Copenhagen France - Paris Germany - Munich Italy - Milan Spain - Madrid UK - Wokingham Worldwide Sales and Service
