Product Brief PIC18FXXQ84 (Microchip) - 2
| Fabricante | Microchip |
| Descripción | Microcontrollers in 28/40/44/48-pin devices for many automotive and industrial application |
| Páginas / Página | 20 / 2 — PIC18FXXQ84. Memory. Operating Characteristics. Power-Saving … |
| Formato / tamaño de archivo | PDF / 331 Kb |
| Idioma del documento | Inglés |

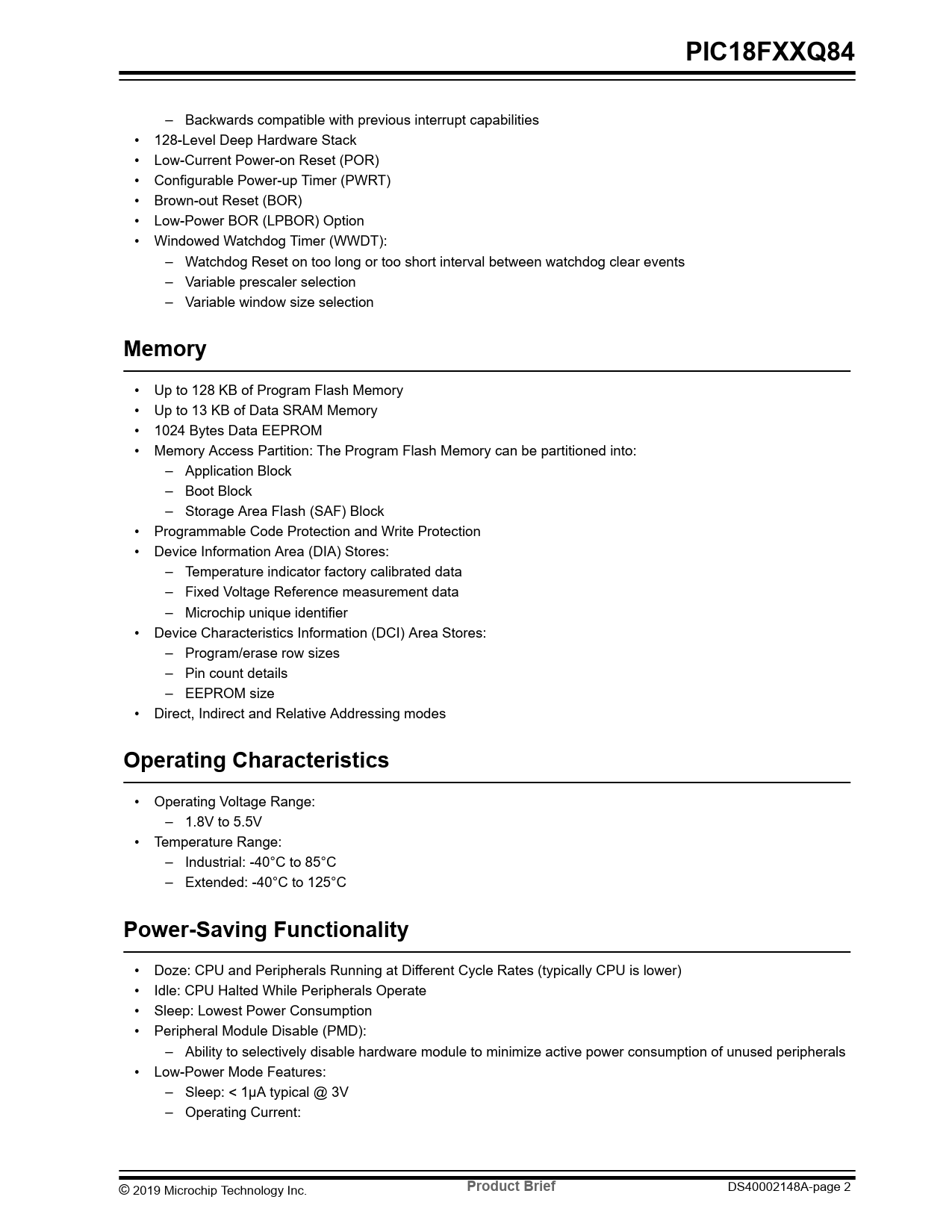

PIC18FXXQ84. Memory. Operating Characteristics. Power-Saving Functionality. Product Brief
Línea de modelo para esta hoja de datos
Versión de texto del documento
PIC18FXXQ84
– Backwards compatible with previous interrupt capabilities • 128-Level Deep Hardware Stack • Low-Current Power-on Reset (POR) • Configurable Power-up Timer (PWRT) • Brown-out Reset (BOR) • Low-Power BOR (LPBOR) Option • Windowed Watchdog Timer (WWDT): – Watchdog Reset on too long or too short interval between watchdog clear events – Variable prescaler selection – Variable window size selection
Memory
• Up to 128 KB of Program Flash Memory • Up to 13 KB of Data SRAM Memory • 1024 Bytes Data EEPROM • Memory Access Partition: The Program Flash Memory can be partitioned into: – Application Block – Boot Block – Storage Area Flash (SAF) Block • Programmable Code Protection and Write Protection • Device Information Area (DIA) Stores: – Temperature indicator factory calibrated data – Fixed Voltage Reference measurement data – Microchip unique identifier • Device Characteristics Information (DCI) Area Stores: – Program/erase row sizes – Pin count details – EEPROM size • Direct, Indirect and Relative Addressing modes
Operating Characteristics
• Operating Voltage Range: – 1.8V to 5.5V • Temperature Range: – Industrial: -40°C to 85°C – Extended: -40°C to 125°C
Power-Saving Functionality
• Doze: CPU and Peripherals Running at Different Cycle Rates (typically CPU is lower) • Idle: CPU Halted While Peripherals Operate • Sleep: Lowest Power Consumption • Peripheral Module Disable (PMD): – Ability to selectively disable hardware module to minimize active power consumption of unused peripherals • Low-Power Mode Features: – Sleep: < 1µA typical @ 3V – Operating Current: © 2019 Microchip Technology Inc.
