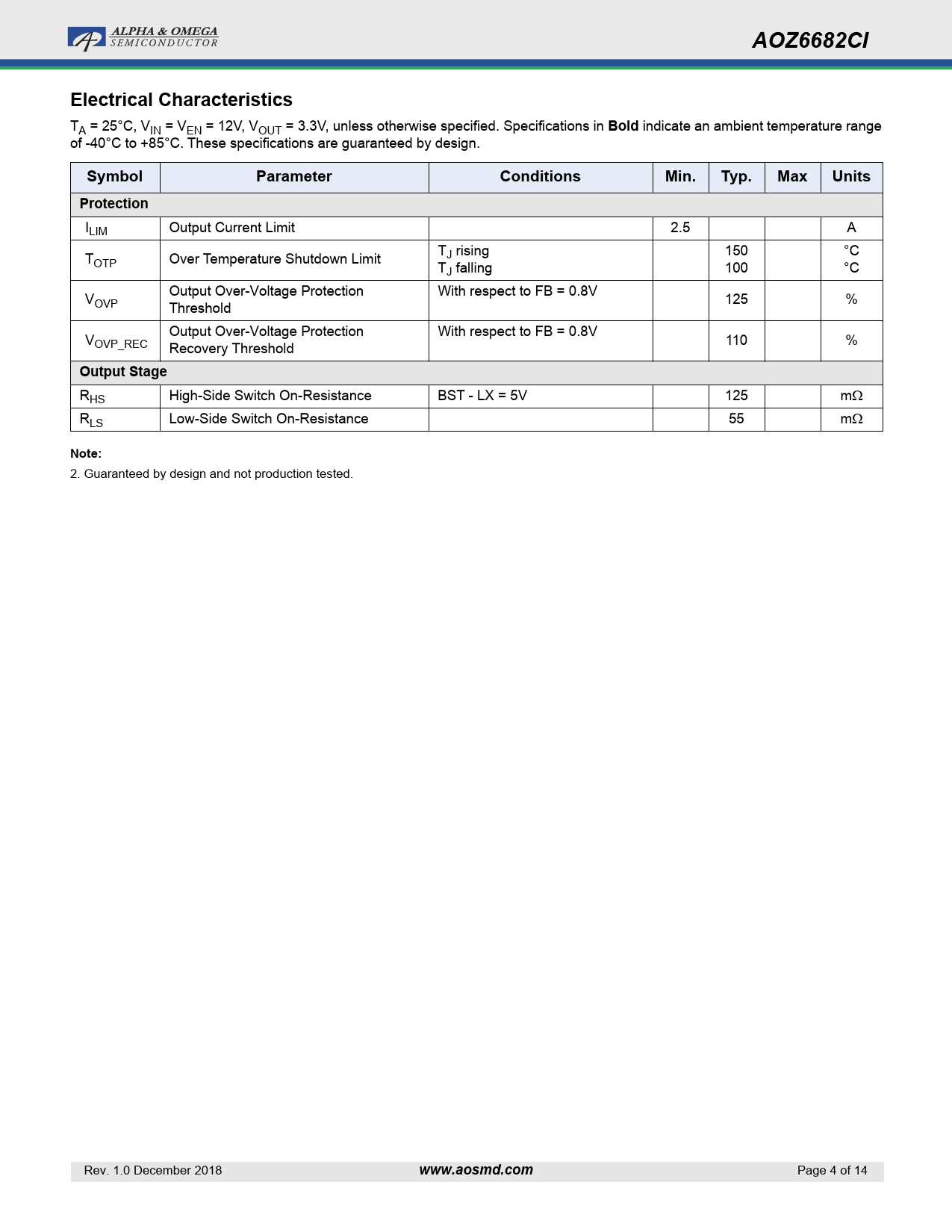

AOZ6682CI Electrical Characteristics
TA = 25°C, VIN = VEN = 12V, VOUT = 3.3V, unless otherwise specified. Specifications in
Bold
indicate an ambient temperature range of -40°C to +85°C. These specifications are guaranteed by design.
Symbol Parameter Conditions Min. Typ. Max Units Protection
ILIM Output Current Limit 2.5 A T 150 °C T J rising OTP Over Temperature Shutdown Limit TJ falling 100 °C Output Over-Voltage Protection With respect to FB = 0.8V VOVP 125 % Threshold Output Over-Voltage Protection With respect to FB = 0.8V VOVP_REC 110 % Recovery Threshold
Output Stage
RHS High-Side Switch On-Resistance BST - LX = 5V 125 m RLS Low-Side Switch On-Resistance 55 m
Note:
2. Guaranteed by design and not production tested. Rev. 1.0 December 2018
www.aosmd.com
Page 4 of 14
