Datasheet TDA2005 (STMicroelectronics)

FabricanteSTMicroelectronics
Descripción20 W bridge/stereo amplifier for car radio
Páginas / Página25 / 1 — TDA2005. Datasheet. production data. Features. Multiwatt11. Description. …
Formato / tamaño de archivoPDF / 649 Kb
Idioma del documentoInglés

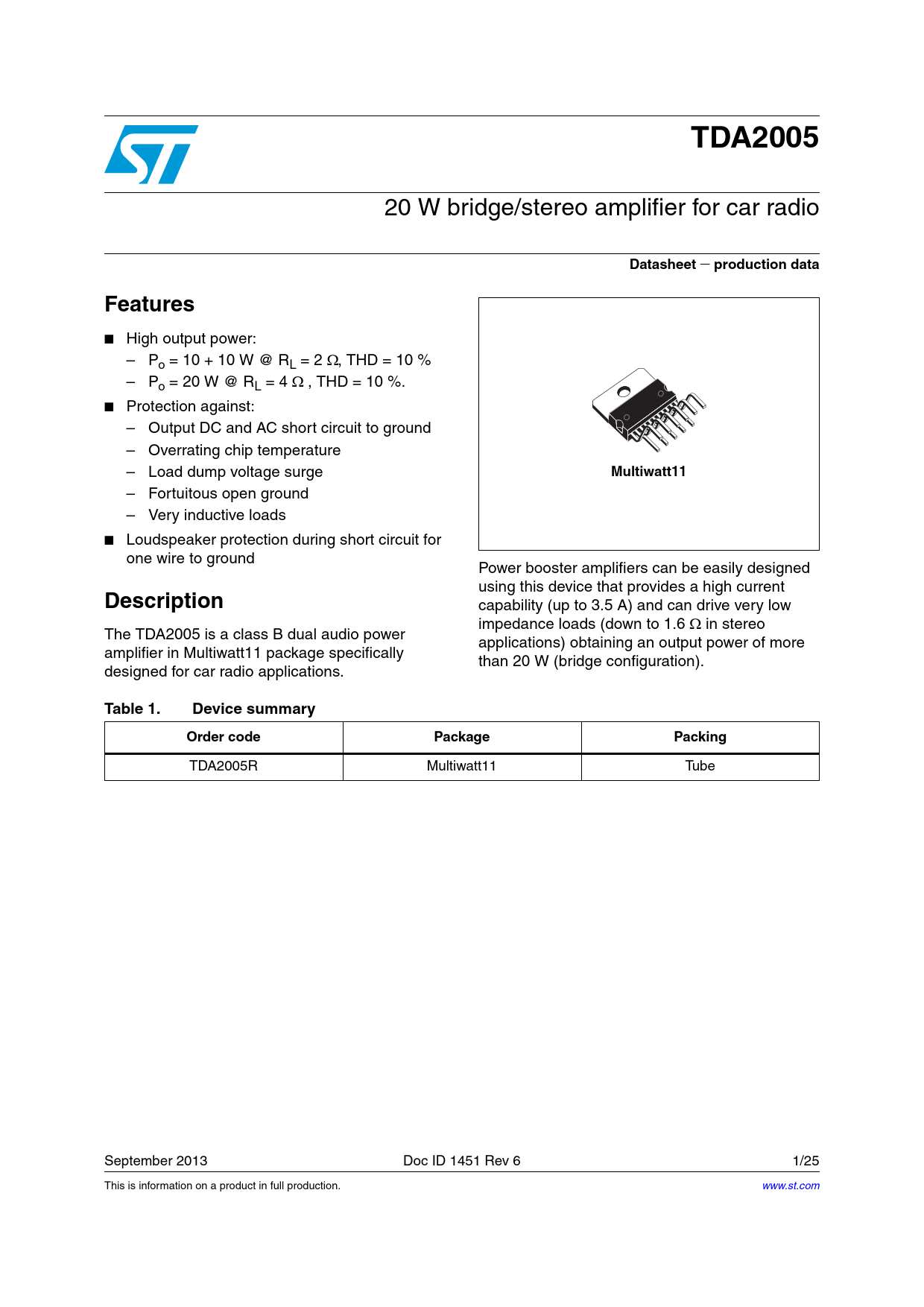

TDA2005. Datasheet. production data. Features. Multiwatt11. Description. Table 1. Device summary. Order code. Package. Packing

Datasheet TDA2005 STMicroelectronics

Línea de modelo para esta hoja de datos

Versión de texto del documento

TDA2005
20 W bridge/stereo amplifier for car radio
Datasheet

production data Features
■ High output power: – Po = 10 + 10 W @ RL = 2 , THD = 10 % – Po = 20 W @ RL = 4 , THD = 10 %. ■ Protection against: – Output DC and AC short circuit to ground – Overrating chip temperature – Load dump voltage surge
Multiwatt11
– Fortuitous open ground – Very inductive loads ■ Loudspeaker protection during short circuit for one wire to ground Power booster amplifiers can be easily designed using this device that provides a high current
Description
capability (up to 3.5 A) and can drive very low impedance loads (down to 1.6 in stereo The TDA2005 is a class B dual audio power applications) obtaining an output power of more amplifier in Multiwatt11 package specifically than 20 W (bridge configuration). designed for car radio applications.
Table 1. Device summary Order code Package Packing
TDA2005R Multiwatt11 Tube September 2013 Doc ID 1451 Rev 6 1/25 This is information on a product in full production. www.st.com 1 Document Outline Table 1. Device summary 1 Schematic and pins connection diagrams Figure 1. Schematic diagram Figure 2. Pins connection diagram (top view) 2 Electrical specifications 2.1 Absolute maximum ratings Table 2. Absolute maximum ratings 2.2 Thermal data Table 3. Thermal data 2.3 Bridge amplifier section Figure 3. Test and application circuit (bridge amplifier) Figure 4. PC board and components layout of Figure 3 2.3.1 Electrical characteristics (bridge application) Table 4. Electrical characteristics (bridge application) Figure 5. Output offset voltage vs. supply voltage Figure 6. Distortion vs. output power (RL = 4 W) Figure 7. Distortion vs. output power (RL = 3.2 W) 2.3.2 Bridge amplifier design Table 5. Bridge amplifier design Table 6. High gain vs. Rx Figure 8. Bridge configuration 2.4 Stereo amplifier application Figure 9. Typical stereo application circuit 2.4.1 Electrical characteristics (stereo application) Table 7. Electrical characteristics (stereo application) Figure 10. Quiescent output voltage vs. supply voltage (stereo amplifier) Figure 11. Quiescent drain current vs. supply voltage (stereo amplifier) Figure 12. Distortion vs. output power (stereo amplifier) Figure 13. Output power vs. supply voltage, RL = 2 and 4 W (stereo amplifier) Figure 14. Output power vs. supply voltage, RL = 1.6 and 3.2 W (stereo amplifier) Figure 15. Distortion vs. frequency, RL = 2 and 4 W (stereo amplifier) Figure 16. Distortion vs. frequency, RL = 1.6 and 3.2 W (stereo amplifier) Figure 17. Supply voltage rejection vs. C3 (stereo amplifier) Figure 18. Supply voltage rejection vs. frequency (stereo amplifier) Figure 19. Supply voltage rejection vs. C2 and C3, GV = 390/1 W (stereo amplifier) Figure 20. Supply voltage rejection vs. C2 and C3, GV = 1000/10 W (stereo amplifier) Figure 21. Gain vs. input sensitivity RL = 4 W (stereo amplifier) Figure 22. Gain vs. input sensitivity RL = 2 W (stereo amplifier) Figure 23. Total power dissipation and efficiency vs. output power (bridge) Figure 24. Total power dissipation and efficiency vs. output power (stereo) 3 Application suggestion Table 8. Recommended values of the component of the bridge application circuit 4 Application information Figure 25. Bridge amplifier without boostrap Figure 26. PC board and components layout of Figure 25 Figure 27. Low cost bridge amplifier (GV = 42 dB) Figure 28. PC board and components layout of Figure 27 Figure 29. 10 + 10 W stereo amplifier with tone balance and loudness control Figure 30. Tone control response (circuit of Figure 29) Figure 31. 20 W bus amplifier Figure 32. Simple 20 W two way amplifier (FC = 2 kHz) Figure 33. Bridge amplifier circuit suited for low-gain applications (GV = 34 dB) Figure 34. Example of muting circuit 4.1 Built-in protection systems 4.1.1 Load dump voltage surge Figure 35. Suggested LC network circuit Figure 36. Voltage gain bridge configuration 4.1.2 Short circuit (AC and DC conditions) 4.1.3 Polarity inversion 4.1.4 Open ground 4.1.5 Inductive load 4.1.6 DC voltage 4.1.7 Thermal shut-down 4.1.8 Loudspeaker protection Figure 37. Maximum allowable power dissipation vs. ambient temperature Figure 38. Output power and drain current vs. case temperature (RL = 4 W) Figure 39. Output power and drain current vs. case temperature (RL = 3.2 W) 5 Package information Figure 40. Multiwatt11 mechanical data and package dimensions 6 Revision history Table 9. Document revision history
