Datasheet STTS22H (STMicroelectronics) - 5
| Fabricante | STMicroelectronics |
| Descripción | Low-voltage, ultra-low-power, 0.5 °C accuracy I2C/SMBus 3.0 temperature sensor |
| Páginas / Página | 29 / 5 — STTS22H. Sensor parameters and electrical specifications. Table 3. … |
| Formato / tamaño de archivo | PDF / 1.4 Mb |
| Idioma del documento | Inglés |
STTS22H. Sensor parameters and electrical specifications. Table 3. Temperature sensor specifications. Symbol. Parameter
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 5

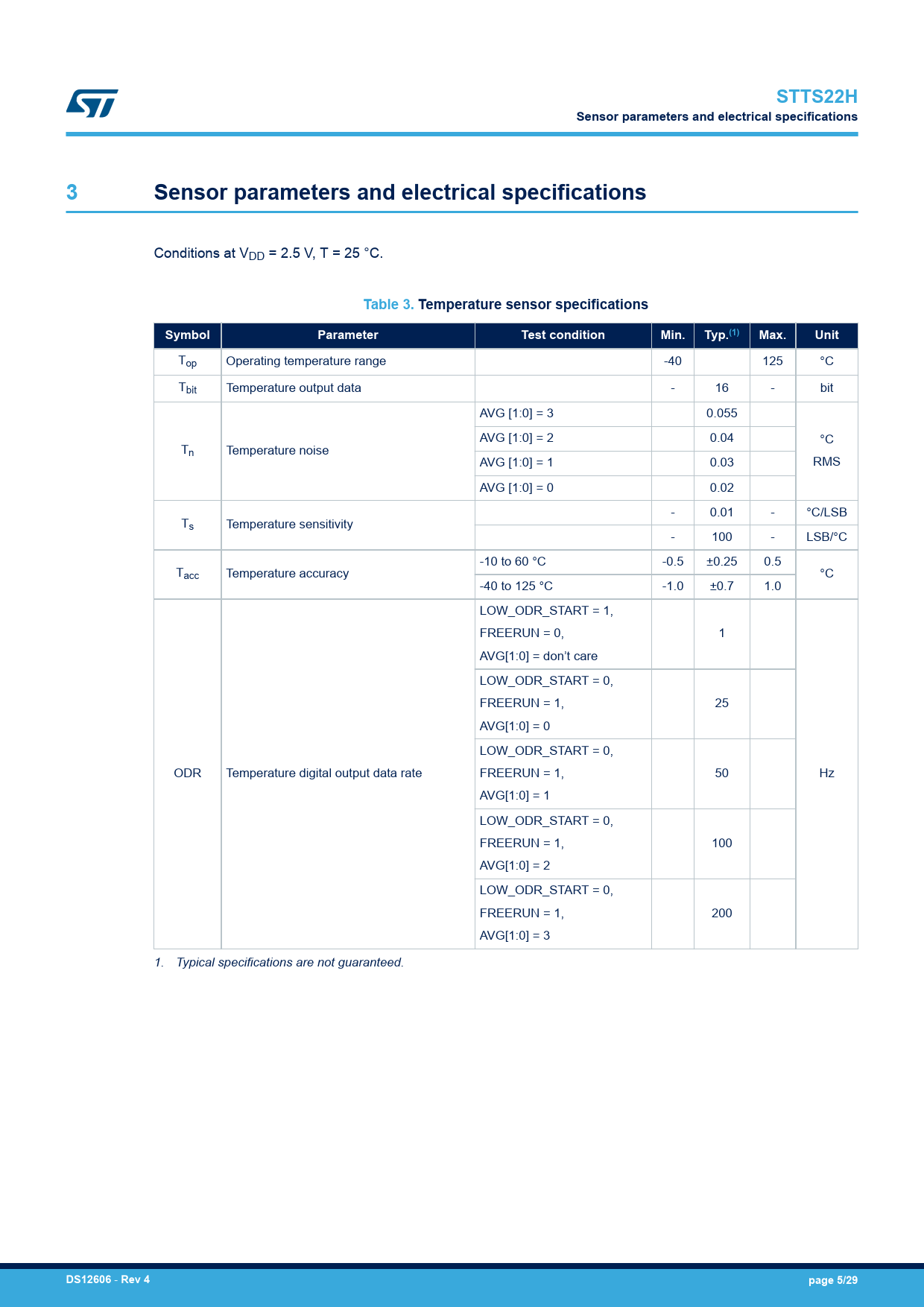

STTS22H Sensor parameters and electrical specifications 3 Sensor parameters and electrical specifications
Conditions at VDD = 2.5 V, T = 25 °C.
Table 3. Temperature sensor specifications Symbol Parameter Test condition Min. Typ.(1) Max. Unit
Top Operating temperature range -40 125 °C Tbit Temperature output data - 16 - bit AVG [1:0] = 3 0.055 AVG [1:0] = 2 0.04 °C Tn Temperature noise AVG [1:0] = 1 0.03 RMS AVG [1:0] = 0 0.02 - 0.01 - °C/LSB Ts Temperature sensitivity - 100 - LSB/°C -10 to 60 °C -0.5 ±0.25 0.5 Tacc Temperature accuracy °C -40 to 125 °C -1.0 ±0.7 1.0 LOW_ODR_START = 1, FREERUN = 0, 1 AVG[1:0] = don’t care LOW_ODR_START = 0, FREERUN = 1, 25 AVG[1:0] = 0 LOW_ODR_START = 0, ODR Temperature digital output data rate FREERUN = 1, 50 Hz AVG[1:0] = 1 LOW_ODR_START = 0, FREERUN = 1, 100 AVG[1:0] = 2 LOW_ODR_START = 0, FREERUN = 1, 200 AVG[1:0] = 3 1. Typical specifications are not guaranteed.
DS12606
-
Rev 4 page 5/29
