Datasheet TCKE805 (Toshiba) - 3
| Fabricante | Toshiba |
| Descripción | CMOS Linear Integrated Circuit Silicon Monolithic. 18 V, 5A eFuse IC with Adjustable Over Current Protection and Reverse Blocking FET Control |
| Páginas / Página | 22 / 3 — TCKE805 Series. Pin Assignment (Top view). Top Marking (Top view) |
| Formato / tamaño de archivo | PDF / 996 Kb |
| Idioma del documento | Inglés |

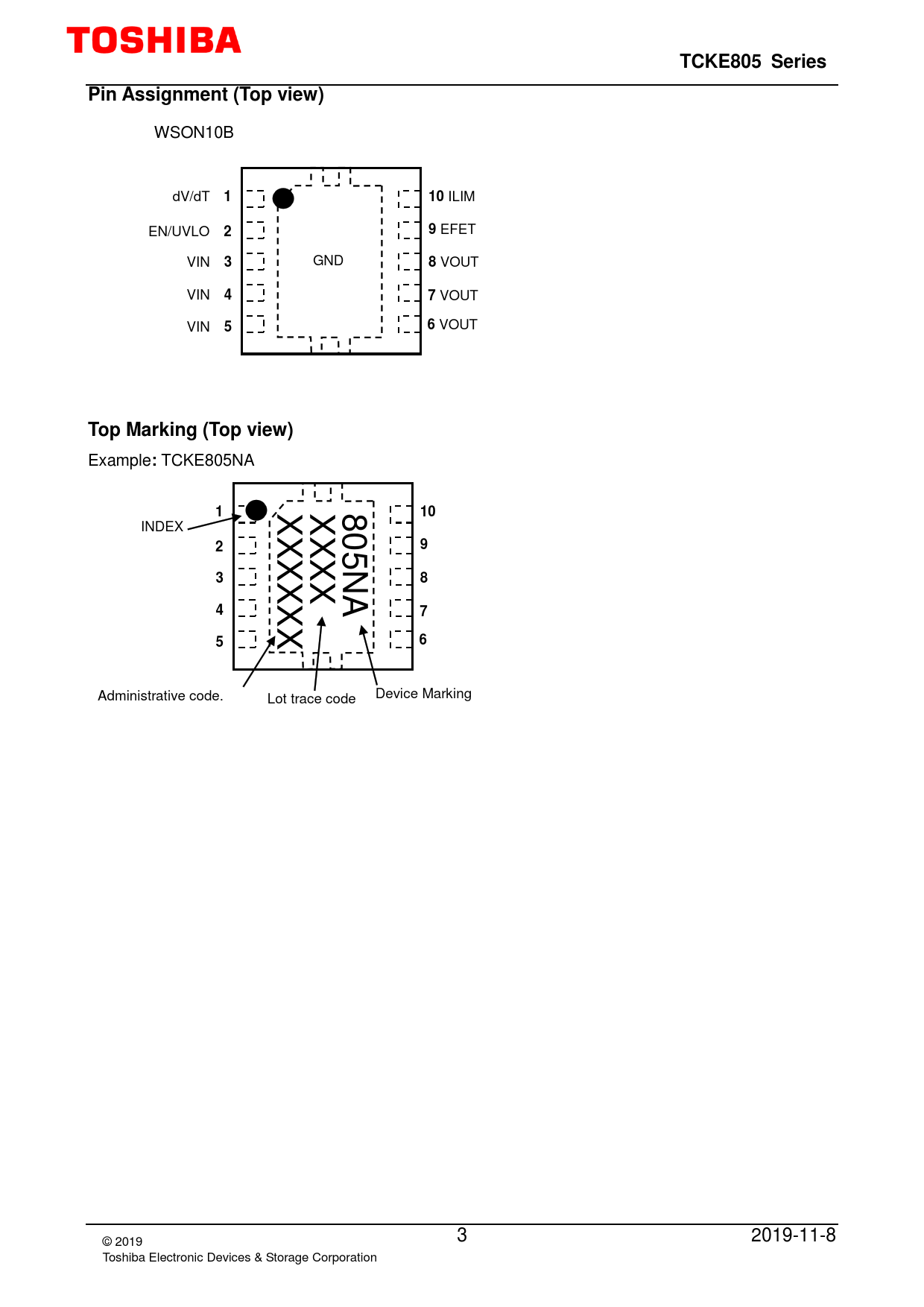

TCKE805 Series. Pin Assignment (Top view). Top Marking (Top view)
Línea de modelo para esta hoja de datos
TCKE805NA
TCKE805NL
Versión de texto del documento
TCKE805 Series Pin Assignment (Top view)
WSON10B dV/dT
1 10
ILIM
EN/UVLO
2 9
EFET
VIN
3
GND
8
VOUT
VIN
4 7
VOUT
VIN
5 6
VOUT
Top Marking (Top view)
Example
:
TCKE805NA X XXXX 805N
1 10
INDEX XXXX
2 9 3 8
A
4 7
X
5 6
Administrative code. Device Marking Lot trace code 3 2019-11-8 © 2019 Toshiba Electronic Devices & Storage Corporation
WSON10B dV/dT
1 10
ILIM
EN/UVLO
2 9
EFET
VIN
3
GND
8
VOUT
VIN
4 7
VOUT
VIN
5 6
VOUT
