| Descripción | Thyristors 1.5 Amp Sensitive SCRs |
| Páginas / Página | 9 / 9 — Thyristors. TO-92 (3-lead) Reel Pack (RP) Radial Leaded Specifications. … |
| Formato / tamaño de archivo | PDF / 1.3 Mb |
| Idioma del documento | Inglés |
Thyristors. TO-92 (3-lead) Reel Pack (RP) Radial Leaded Specifications. Meets all EIA-468-C Standards
Línea de modelo para esta hoja de datos
Versión de texto del documento
Thyristors
1.5 Amp Sensitive SCRs
TO-92 (3-lead) Reel Pack (RP) Radial Leaded Specifications Meets all EIA-468-C Standards

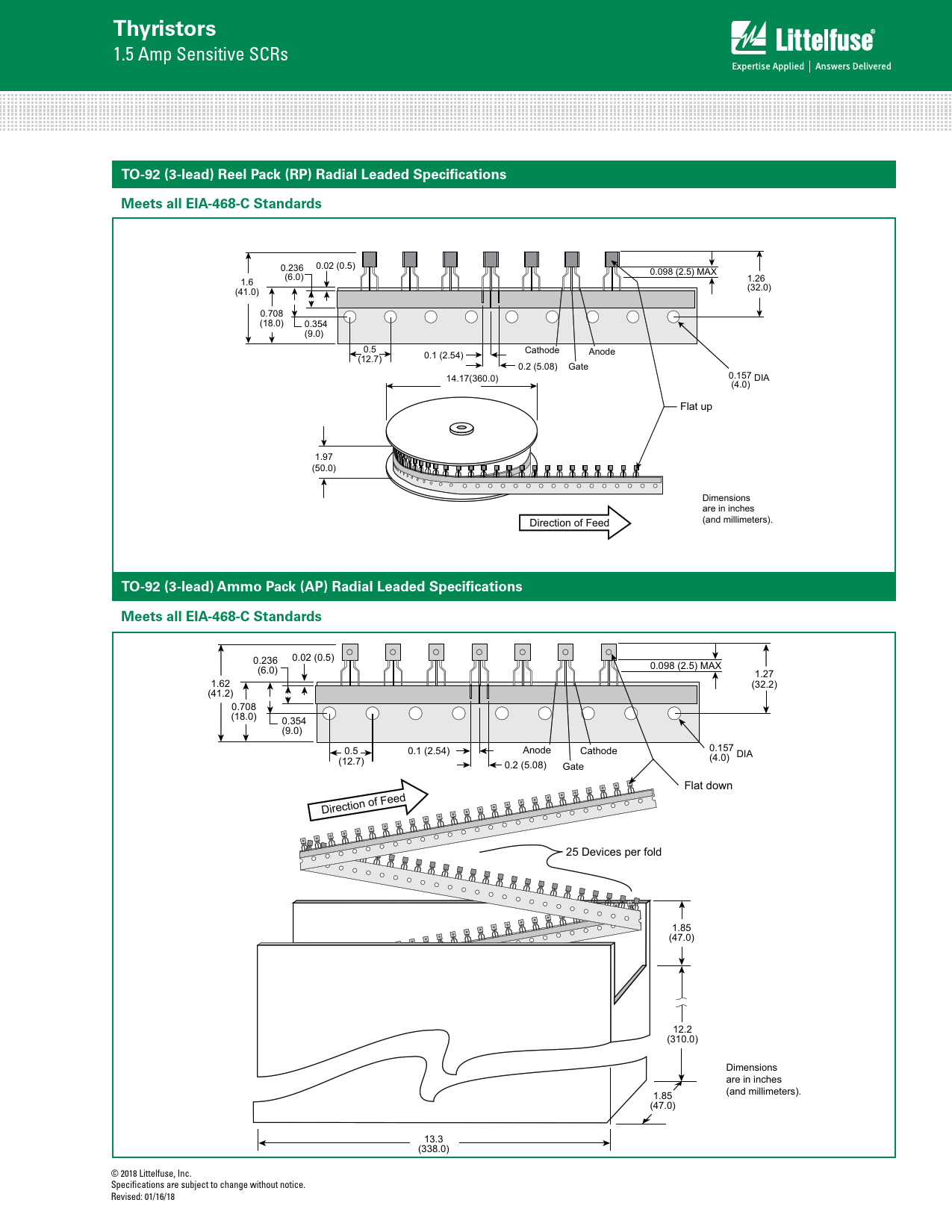

0.236 0.02 (0.5) 0.098 (2.5) MAX 1.6 (6.0) 1.26 (41.0) (32.0) 0.708 (18.0) 0.354 (9.0) 0.5 Cathode Anode (12.7) 0.1 (2.54) 0.2 (5.08) Gate 14.17(360.0) 0.157 DIA (4.0) Flat up 1.97 (50.0) Dimensions are in inches Direction of Feed (and millimeters).
TO-92 (3-lead) Ammo Pack (AP) Radial Leaded Specifications Meets all EIA-468-C Standards
0.236 0.02 (0.5) (6.0) 0.098 (2.5) MAX 1.27 1.62 (32.2) (41.2) 0.708 (18.0) 0.354 (9.0) 0.5 0.1 (2.54) Anode Cathode 0.157 DIA (12.7) (4.0) 0.2 (5.08) Gate Flat down Direction of Feed 25 Devices per fold 1.85 (47.0) 12.2 (310.0) Dimensions are in inches (and millimeters). 1.85 (47.0) 13.3 (338.0) © 2018 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 01/16/18
1.5 Amp Sensitive SCRs
TO-92 (3-lead) Reel Pack (RP) Radial Leaded Specifications Meets all EIA-468-C Standards
0.236 0.02 (0.5) 0.098 (2.5) MAX 1.6 (6.0) 1.26 (41.0) (32.0) 0.708 (18.0) 0.354 (9.0) 0.5 Cathode Anode (12.7) 0.1 (2.54) 0.2 (5.08) Gate 14.17(360.0) 0.157 DIA (4.0) Flat up 1.97 (50.0) Dimensions are in inches Direction of Feed (and millimeters).
TO-92 (3-lead) Ammo Pack (AP) Radial Leaded Specifications Meets all EIA-468-C Standards
0.236 0.02 (0.5) (6.0) 0.098 (2.5) MAX 1.27 1.62 (32.2) (41.2) 0.708 (18.0) 0.354 (9.0) 0.5 0.1 (2.54) Anode Cathode 0.157 DIA (12.7) (4.0) 0.2 (5.08) Gate Flat down Direction of Feed 25 Devices per fold 1.85 (47.0) 12.2 (310.0) Dimensions are in inches (and millimeters). 1.85 (47.0) 13.3 (338.0) © 2018 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 01/16/18
