Datasheet PAM8904 (Diodes) - 3
| Fabricante | Diodes |
| Descripción | The PAM8904 is a piezo sounder driver with integrated a charge pump boost converter |
| Páginas / Página | 9 / 3 — PAM8904. Absolute Maximum Ratings. Symbol. Characteristics. Value. Unit. … |
| Formato / tamaño de archivo | PDF / 355 Kb |
| Idioma del documento | Inglés |
PAM8904. Absolute Maximum Ratings. Symbol. Characteristics. Value. Unit. Recommended Operating Conditions. Min. Max. Thermal Information
Línea de modelo para esta hoja de datos
Versión de texto del documento

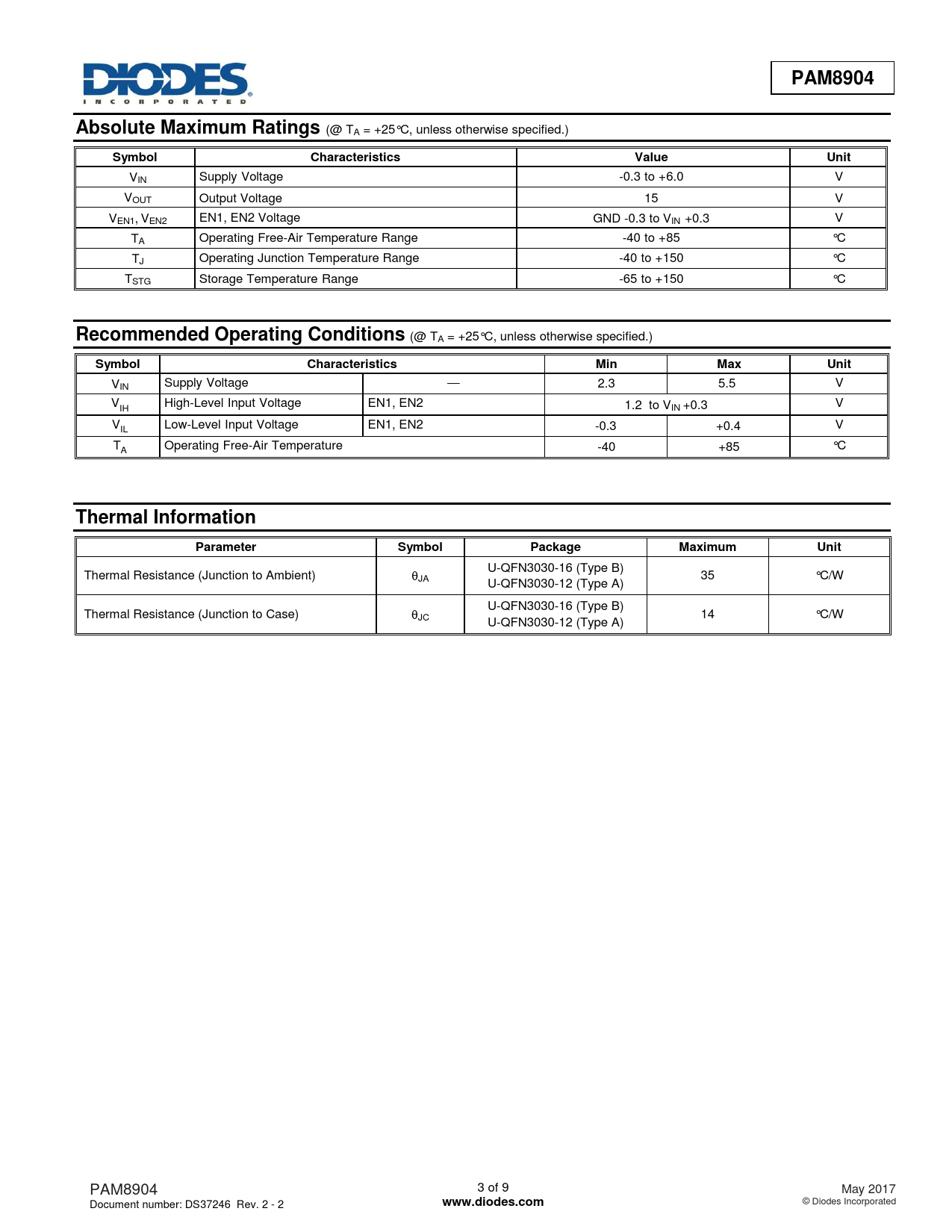

PAM8904 Absolute Maximum Ratings
(@ TA = +25°C, unless otherwise specified.)
Symbol Characteristics Value Unit
VIN Supply Voltage -0.3 to +6.0 V VOUT Output Voltage 15 V VEN1, VEN2 EN1, EN2 Voltage GND -0.3 to VIN +0.3 V TA Operating Free-Air Temperature Range -40 to +85 °C TJ Operating Junction Temperature Range -40 to +150 °C TSTG Storage Temperature Range -65 to +150 °C
Recommended Operating Conditions
(@ TA = +25°C, unless otherwise specified.)
Symbol Characteristics Min Max Unit
VIN Supply Voltage — 2.3 5.5 V V High-Level Input Voltage EN1, EN2 IH 1.2 to VIN +0.3 V V Low-Level Input Voltage EN1, EN2 IL -0.3 +0.4 V T Operating Free-Air Temperature A -40 +85 °C
Thermal Information Parameter Symbol Package Maximum Unit
U-QFN3030-16 (Type B) Thermal Resistance (Junction to Ambient) JA 35 °C/W U-QFN3030-12 (Type A) U-QFN3030-16 (Type B) Thermal Resistance (Junction to Case) JC 14 °C/W U-QFN3030-12 (Type A)
