Nexperia. PCMFxUSB3BA/C series

Nexperia PCMFxUSB3BA/C series

Línea de modelo para esta hoja de datos

Versión de texto del documento

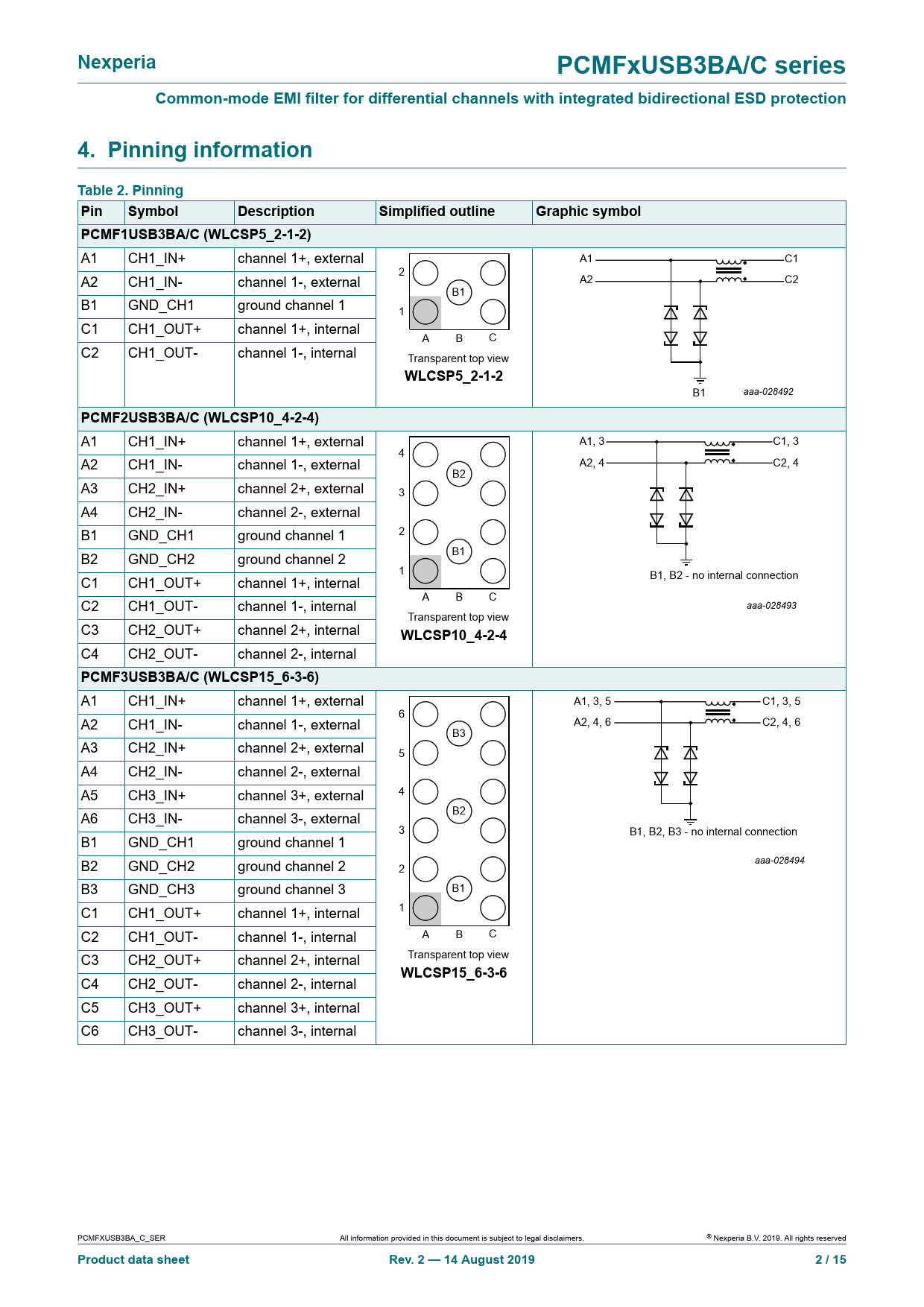

Nexperia PCMFxUSB3BA/C series Common-mode EMI filter for differential channels with integrated bidirectional ESD protection 4. Pinning information Table 2. Pinning Pin Symbol Description Simplified outline Graphic symbol PCMF1USB3BA/C (WLCSP5_2-1-2)
A1 CH1_IN+ channel 1+, external A1 C1 2 A2 CH1_IN- channel 1-, external A2 C2 B1 B1 GND_CH1 ground channel 1 1 C1 CH1_OUT+ channel 1+, internal A B C C2 CH1_OUT- channel 1-, internal Transparent top view
WLCSP5_2-1-2
B1 aaa-028492
PCMF2USB3BA/C (WLCSP10_4-2-4)
A1 CH1_IN+ channel 1+, external A1, 3 C1, 3 4 A2 CH1_IN- channel 1-, external A2, 4 C2, 4 B2 A3 CH2_IN+ channel 2+, external 3 A4 CH2_IN- channel 2-, external B1 GND_CH1 ground channel 1 2 B2 GND_CH2 ground channel 2 B1 1 C1 CH1_OUT+ channel 1+, internal B1, B2 - no internal connection C2 CH1_OUT- channel 1-, internal A B C aaa-028493 Transparent top view C3 CH2_OUT+ channel 2+, internal
WLCSP10_4-2-4
C4 CH2_OUT- channel 2-, internal
PCMF3USB3BA/C (WLCSP15_6-3-6)
A1 CH1_IN+ channel 1+, external A1, 3, 5 C1, 3, 5 6 A2 CH1_IN- channel 1-, external A2, 4, 6 C2, 4, 6 B3 A3 CH2_IN+ channel 2+, external 5 A4 CH2_IN- channel 2-, external A5 CH3_IN+ channel 3+, external 4 A6 CH3_IN- channel 3-, external B2 3 B1, B2, B3 - no internal connection B1 GND_CH1 ground channel 1 B2 GND_CH2 ground channel 2 aaa-028494 2 B3 GND_CH3 ground channel 3 B1 C1 CH1_OUT+ channel 1+, internal 1 C2 CH1_OUT- channel 1-, internal A B C C3 CH2_OUT+ channel 2+, internal Transparent top view
WLCSP15_6-3-6
C4 CH2_OUT- channel 2-, internal C5 CH3_OUT+ channel 3+, internal C6 CH3_OUT- channel 3-, internal PCMFXUSB3BA_C_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2019. Al rights reserved
Product data sheet Rev. 2 — 14 August 2019 2 / 15
