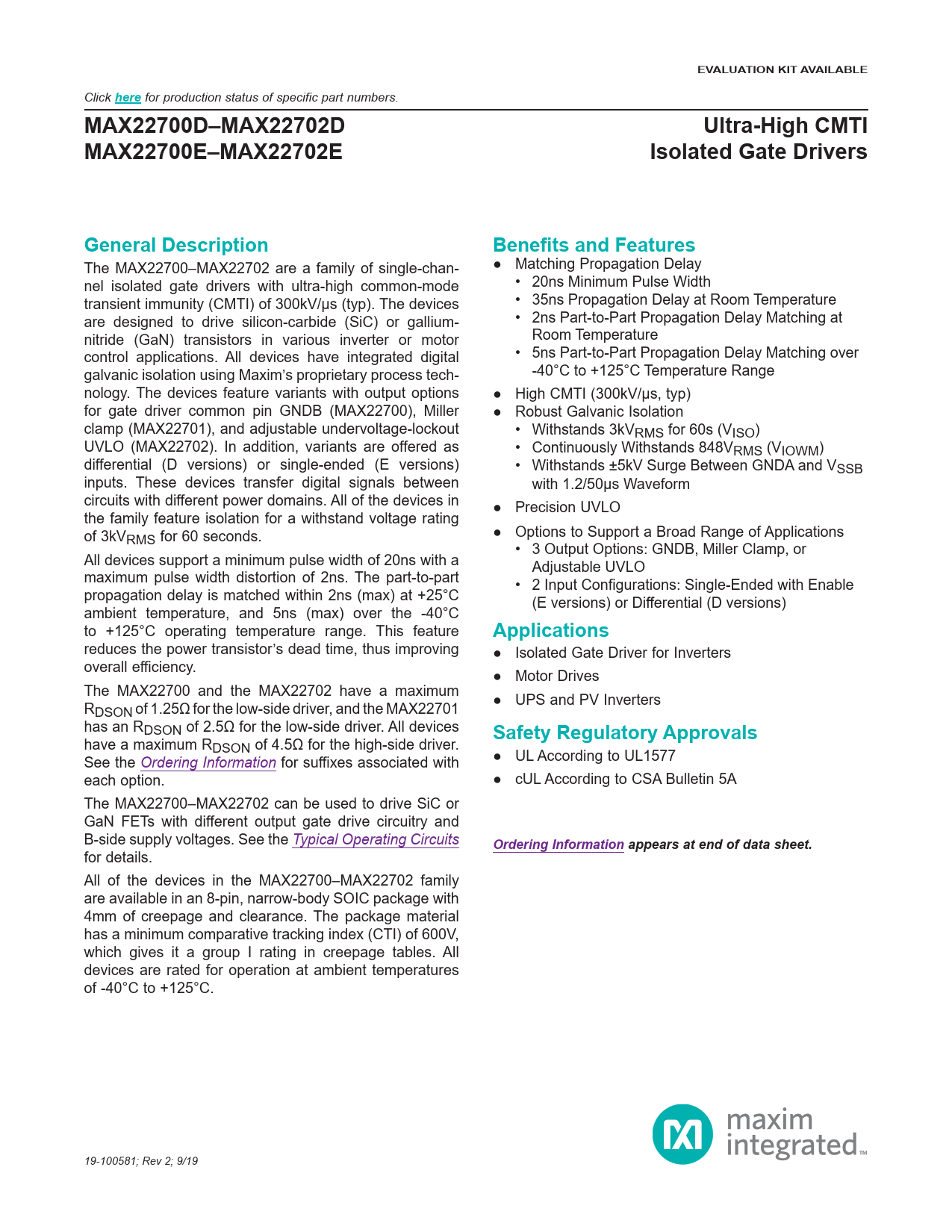

EVALUATION KIT AVAILABLE. here. MAX22700D–MAX22702D. Ultra-High CMTI. MAX22700E–MAX22702E. Isolated Gate Drivers

Datasheet MAX22700D, MAX22700E, MAX22701D, MAX22701E, MAX22702D, MAX22702E Maxim

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 29 link to page 21 link to page 29
EVALUATION KIT AVAILABLE
Click
here
for production status of specific part numbers.
MAX22700D–MAX22702D Ultra-High CMTI MAX22700E–MAX22702E Isolated Gate Drivers General Description Benefits and Features
The MAX22700–MAX22702 are a family of single-chan- ● Matching Propagation Delay nel isolated gate drivers with ultra-high common-mode • 20ns Minimum Pulse Width transient immunity (CMTI) of 300kV/µs (typ). The devices • 35ns Propagation Delay at Room Temperature are designed to drive silicon-carbide (SiC) or gallium- • 2ns Part-to-Part Propagation Delay Matching at nitride (GaN) transistors in various inverter or motor Room Temperature control applications. All devices have integrated digital • 5ns Part-to-Part Propagation Delay Matching over galvanic isolation using Maxim’s proprietary process tech- -40°C to +125°C Temperature Range nology. The devices feature variants with output options ● High CMTI (300kV/µs, typ) for gate driver common pin GNDB (MAX22700), Miller ● Robust Galvanic Isolation clamp (MAX22701), and adjustable undervoltage-lockout • Withstands 3kVRMS for 60s (VISO) UVLO (MAX22702). In addition, variants are offered as • Continuously Withstands 848VRMS (VIOWM) differential (D versions) or single-ended (E versions) • Withstands ±5kV Surge Between GNDA and VSSB inputs. These devices transfer digital signals between with 1.2/50μs Waveform circuits with different power domains. All of the devices in ● Precision UVLO the family feature isolation for a withstand voltage rating of 3kVRMS for 60 seconds. ● Options to Support a Broad Range of Applications • 3 Output Options: GNDB, Miller Clamp, or All devices support a minimum pulse width of 20ns with a Adjustable UVLO maximum pulse width distortion of 2ns. The part-to-part • 2 Input Configurations: Single-Ended with Enable propagation delay is matched within 2ns (max) at +25°C (E versions) or Differential (D versions) ambient temperature, and 5ns (max) over the -40°C to +125°C operating temperature range. This feature
Applications
reduces the power transistor’s dead time, thus improving ● Isolated Gate Driver for Inverters overall efficiency. ● Motor Drives The MAX22700 and the MAX22702 have a maximum R ● UPS and PV Inverters DSON of 1.25Ω for the low-side driver, and the MAX22701 has an RDSON of 2.5Ω for the low-side driver. All devices
Safety Regulatory Approvals
have a maximum RDSON of 4.5Ω for the high-side driver. See the Ordering Information for suffixes associated with ● UL According to UL1577 each option. ● cUL According to CSA Bulletin 5A The MAX22700–MAX22702 can be used to drive SiC or GaN FETs with different output gate drive circuitry and B-side supply voltages. See the Typical Operating Circuits
Ordering Information appears at end of data sheet.
for details. All of the devices in the MAX22700–MAX22702 family are available in an 8-pin, narrow-body SOIC package with 4mm of creepage and clearance. The package material has a minimum comparative tracking index (CTI) of 600V, which gives it a group I rat ing in creepage tables. All devices are rated for operation at ambient temperatures of -40°C to +125°C. 19-100581; Rev 2; 9/19
